MONOBLOCK 6-1 ISO 850pdl/h

Semi-Automatic Yogurt Filling Line in Stainless Steel Modern Italian-made yogurt filling, capping, and marking equipment that combines precision and reliability. The heart of the machine is smart angular rotary table technology. Technical Features: AISI 316 stainless steel compliant with food industry standards, temperature-resistant, food-grade certified seals, spacious 30-liter yogurt tank, precisely adjustable dispenser (100-1000ml), foam-free bottom-up bottle filling system. Automated Processes: Adjustable speed pneumatic dosing, automatic cap feeding and securing, precise date and batch marking on caps. Practical Design: Easy cleaning system with clamp fittings, compact dimensions: 1100 x 700 x 2000mm (H), machine weight: 150 kg.

Semi-automatic bottle filling machine up to 600 bottles per hour High-quality Italian manufacturer's semi-automatic bottle dispenser-filler, ideal for filling various viscous liquids. The device can fill both room temperature and hot liquids. Main features: Filling volume: 40-1000ml Production capacity: up to 600 bottles per hour Suitable for yogurt, jam, honey, sauces, and creams Integrated capper for screw-cap bottles Technical equipment: Stainless steel frame with adjustable feet 2-meter bottle feeding conveyor with collection table Volumetric dosing pump Stainless steel dispenser with anti-drip nozzle Deflon-sealed system Pneumatic stopper system Additional information: The filling and cap closing process is automated. The operator's task is to place caps on bottles between the two operations. The capper operates with pneumatic air pressure, at low RPM, and with adjustable power. Note! Printer not included.

Semi-Automatic Filling Line for Carbonated Beverages - Washer, Filler, and Capper High-quality Italian manufactured semi-automatic filling set including container washing unit, 4-head isobaric filler, and crown cap applicator. The unit is adaptable with 2 or 6 filling heads and suitable for both crown caps and screw caps. Application and Technical Specifications Suitable for carbonated beverages: beer, cider, sparkling wine, carbonated water. Maximum filling pressure: 5 bar. Power consumption: 0.37kW/220V. Compressed air requirement: 120l/min/6bar, 24V. Machine dimensions: 1.92m x 0.8m x 0.40m. Maximum bottle dimensions: height 350mm, diameter 120mm. Machine Benefits and Additional Features Automatic filling process control. Pneumatic pump for liquid transfer. CO2 pre-insertion for foam-free filling. Transparent automatic safety door. Washing liquid recycling system. Automatic cap feeder with vibration system. Enhanced oxygen removal through water spraying. Included Accessories Integrated pressure washer. 1" connection valve seal kit. Adjustable filling level tubes. Cleaning dummies for valve maintenance. Non-return valve.

6-Nozzle Isobaric Filling Machine - Professional Solution for Beverage Filling High-quality Italian isobaric filling machine that enables precise and efficient filling process. The device is specially designed for filling carbonated beverages, including beer, cider, sparkling wine, and carbonated water. Technical Specifications Maximum filling pressure: 5 bar Power consumption: 0.37 kW/220V Compressed air consumption: 120 l/min/6 bar Control voltage: 24V Dimensions: height 1.92 m, width 0.8 m, depth 0.40 m Bottle Parameters Maximum bottle height: 350 mm Maximum bottle diameter: 120 mm Available Accessories Automatic filling system Pneumatic pump system Container cleaning system (water and air or air only) Professional corking device 1" connection valve seal kit Adjustable filling pipes Cleaning process bottle dummies Back-flow valve The machine is equipped with foam-reducing nozzles, ensuring quality filling results. A professional filling solution ideal for small producers and medium-sized enterprises.

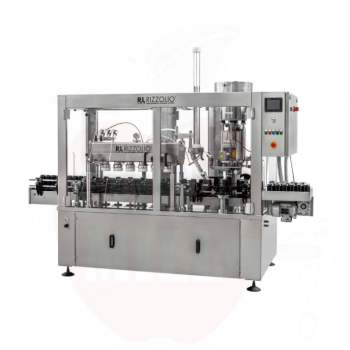

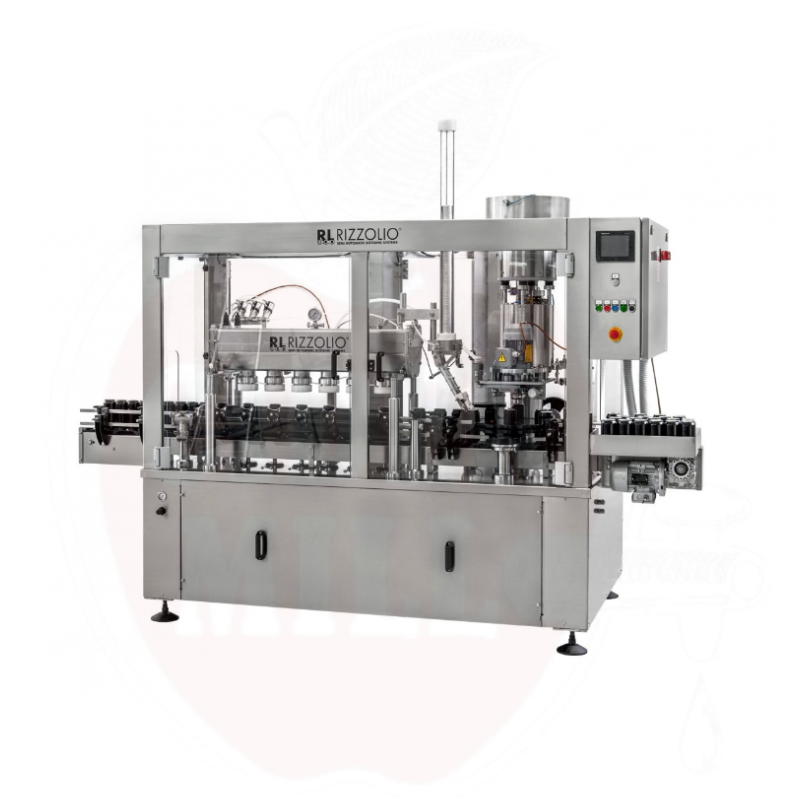

Automatic Beer Bottling Multiblock - For Precise and Efficient Production This modern multiblock system allows one operator to perform the entire bottling process, including container rinsing, isobaric filling (with +/-2mm accuracy) and crown capping. Main Features: Suitable for carbonated beverages, especially beer. Designed for glass bottles. 6 filling valve system. Single-stage 6-head rinsing system. Crown cap Ø 26 mm. Production capacity: up to 1200 bottles/hour (330 ml). Technical Specifications: Filling temperature: 0-2°C. Rotation direction: clockwise. Dimensions: 2065x1444x2100mm (H). Required floor space: 6000x2800mm. Food industry standard: AISI316 stainless steel. Additional Equipment: Sterile filtration system. Additional conveyors for single-operator operation. Adjustment kit for different bottle sizes. CO2 dosing system. Automatic foam removal system. Feed pump for filling line. Remote control capability via internet. Labeling device for two labels and neck label application.

Semi-Automatic Carbonated Beverage Filling System Professional Italian-made semi-automatic filling system, ideal for small producers and beverage industries. The device is designed for filling carbonated beverages (beer, cider, sparkling wine, carbonated water). Technical Specifications: 4 filling nozzles with foam reduction technology, Maximum filling pressure: 5 bar, Power consumption: 0.37kW/220V, Compressed air requirement: 120l/min/6bar, 24V, Device dimensions: 1.92m x 0.8m x 0.40m. Bottle Parameters: Maximum height: 350mm, Maximum diameter: 120mm. Basic Package Includes: Automatic filling system, Safety door, Adjustable filling level tubes, Seal kit for 1" connection valve. Additional Equipment and Features: Pneumatic filling pump, CO2 pre-injection system for foam-free filling, Cleaning solution recirculation system, Automatic cap feeding system, Oxygen removal through water spray during capping, Integrated tank cleaning system, Cleaning mode bottle dummies, Backflow prevention.

Professional Isobaric Filling Machine with 6 Nozzles High-quality Italian isobaric filling machine specifically designed for carbonated beverage filling. The machine is equipped with 6 foam-reducing nozzles, ensuring an efficient and precise filling process. Technical Specifications: Maximum filling pressure: 5 bar, Power consumption: 0.37 kW (220V), Compressed air consumption: 120 l/min (6 bar), Control voltage: 24V. Dimensions and Capacity: Height: 1.92 m, Width: 0.8 m, Depth: 0.40 m, Maximum bottle height: 350 mm, Maximum bottle diameter: 120 mm. Applications: Ideal solution for filling: Beer, Cider, Sparkling wine, Carbonated water. Available Accessories: Automatic filling system, Pneumatic pump system, Container cleaning system (water and air or air only), Capping machine, 1" connection valve seal kit, Adjustable filling level tubes, Bottle models for valve maintenance, Non-return valve.

Isobaric Small Bottler for Hobbyists - Swedish Quality Equipment Professional counter-pressure bottling equipment that ensures quality bottling results. With a capacity of 80-90 bottles per hour, it's ideal for small producers and enthusiasts. Technical Specifications: Capacity: 80-90 bottles per hour, Suitable bottle height: 175-310 cm, Bottle mouth diameter: 26 mm, Country of origin: Sweden. Additional Equipment: Swing-top bottle filling nozzle (extra charge 25 EUR). Usage Instructions: Connect the bottler to the CO2 tank and liquid container. Place the bottle under the device. Fill the bottle with CO2 by pressing the black "+" button. Release pressure using the "-" button. Repeat CO2 filling with the "+" button. Repeat the cycle (points 3-4) at least 2 times to achieve optimal CO2 levels. Always press the "+" button before bottling. Open the liquid inlet valve and close it when the bottle is full.

Professional Manual Valve for Liquid Filling. High-quality manual valve system specifically designed for precise filling of pre-pressurized liquids. Ideal for filling beer and other carbonated beverages. Technical Specifications: Bottle opening diameter: 14-20mm, Minimum bottle height: 220cm, Connection tube inner diameter: 5-6mm. Main Benefits: Foam-free filling, Quick filling process, Easy installation, Three operating modes: CO2 inlet, liquid inlet, closed position. Complete System: For a fully functional filling system, you additionally need: Pressure tank, CO2 cylinder, Regulator, Connection hoses with fittings. We also offer complete system assembly service - contact us for a personalized solution.

Isobaric Small-Scale Filler Head for Swing-Top Bottles with Counter-Pressure Method Professional isobaric filling head specifically designed for filling swing-top bottles. The device operates using counter-pressure method, ensuring precise filling without foaming. Main Features: Ideal for craft beer, cider, and soft drink bottling. Precise dosing using counter-pressure method. Prevents product foaming and oxygen exposure. Compatible with standard swing-top bottles. Made from food-grade compliant materials. Technical Advantages: Maintains beverage quality. Fast and efficient filling process. Easy to clean and maintain. Durable construction. The isobaric filling head is a valued tool among small-scale producers, enabling professional filling results. The device is easy to use and perfectly suited for smaller production volumes.

Automatic Beer Bottling Multiblock - For Precise and Efficient Production This modern multiblock system allows one operator to perform the entire bottling process, including container rinsing, isobaric filling (with +/-2mm accuracy) and crown capping. Main Features: Suitable for carbonated beverages, especially beer. Designed for glass bottles. 6 filling valve system. Single-stage 6-head rinsing system. Crown cap Ø 26 mm. Production capacity: up to 1200 bottles/hour (330 ml). Technical Specifications: Filling temperature: 0-2°C. Rotation direction: clockwise. Dimensions: 2065x1444x2100mm (H). Required floor space: 6000x2800mm. Food industry standard: AISI316 stainless steel. Additional Equipment: Sterile filtration system. Additional conveyors for single-operator operation. Adjustment kit for different bottle sizes. CO2 dosing system. Automatic foam removal system. Feed pump for filling line. Remote control capability via internet. Labeling device for two labels and neck label application.

Cannular Fully Automatic Canning Line - Single Line for Brewers Cannular fully automatic single-line canning system is a modern solution for packaging beer and other carbonated beverages. This compact device is specifically designed for microbreweries producing 1000-5000 liter batches. Benefits of Canning Beer canning ensures: Better product shelf life due to low oxygen levels Complete hermetic sealing Complete light protection Environmentally friendly packaging Convenient outdoor use Technical Specifications Power supply: single-phase 230V Equipped with B64 cartridge (for 202 can bodies) Dimensions: standard pallet size Titanium-coated hardened cartridge (hardness 58-62 dH) Production capacity: up to 15 cans per minute Oxygen level: below 40 ppb Operating Principle and Usage The canning line operates fully automatically: empty cans move independently to the filling position, filling occurs, hermetic sealing is performed, and finished products are ejected. The system requires only one operator and ensures consistent quality throughout the production process. Maintenance and Cleaning The equipment is easy to clean thanks to hose-washable surfaces. Regular maintenance ensures long-term and trouble-free operation. Ideal for small and medium-sized breweries looking to automate their production and ensure high-quality packaging.
