Isobaric filler RLV2-iSo + rinser + CO2 pre

SKU: 8999487
EAN: 2000000005966
Unit: pc
Stock qty: On special order

Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
Qty.: - +
   - or -

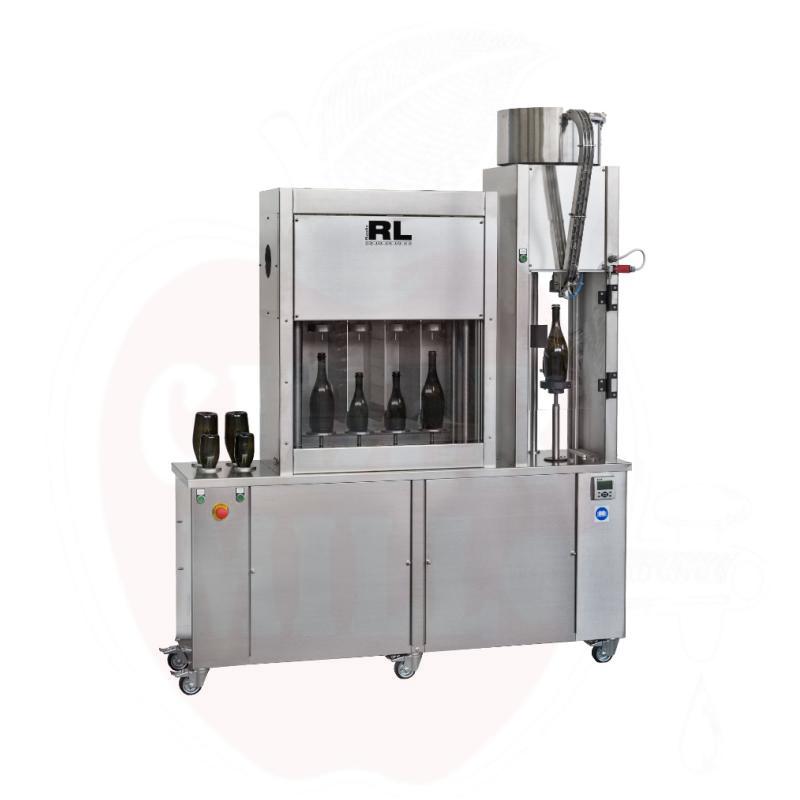

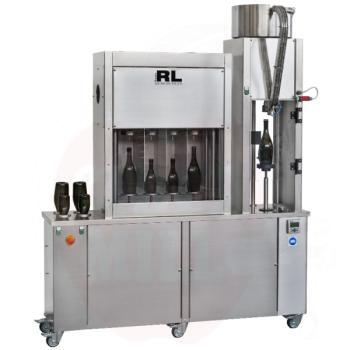

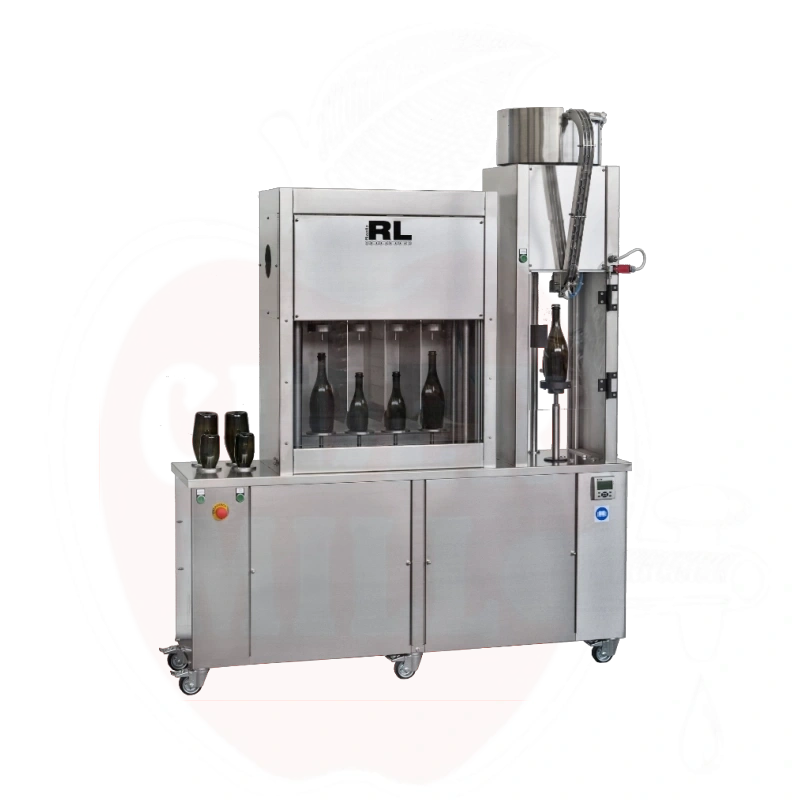

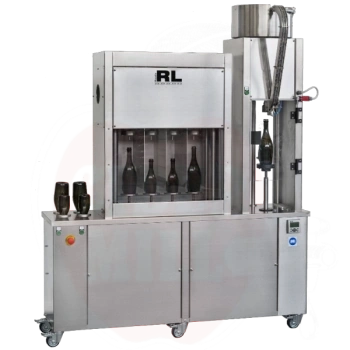

Semi-Automatic Filling Line for Carbonated Beverages - Washer, Filler, and Capper

High-quality Italian manufactured semi-automatic filling set including container washing unit, 4-head isobaric filler, and crown cap applicator. The unit is adaptable with 2 or 6 filling heads and suitable for both crown caps and screw caps.

Application and Technical Specifications

  • Suitable for carbonated beverages: beer, cider, sparkling wine, carbonated water
  • Maximum filling pressure: 5 bar
  • Power consumption: 0.37kW/220V
  • Compressed air requirement: 120l/min/6bar, 24V
  • Machine dimensions: 1.92m x 0.8m x 0.40m
  • Maximum bottle dimensions: height 350mm, diameter 120mm

Machine Benefits and Additional Features

  • Automatic filling process control
  • Pneumatic pump for liquid transfer
  • CO2 pre-insertion for foam-free filling
  • Transparent automatic safety door
  • Washing liquid recycling system
  • Automatic cap feeder with vibration system
  • Enhanced oxygen removal through water spraying

Included Accessories

  • Integrated pressure washer
  • 1" connection valve seal kit
  • Adjustable filling level tubes
  • Cleaning dummies for valve maintenance
  • Non-return valve

Keywords: filling line, carbonated beverage filler, beer filler, cider filler, bottle washer, capping machine, semi-automatic filler, bottle filler

Weight (kg) 0.000000
High (m) 0
Width (m) 0
Length (m) 0
