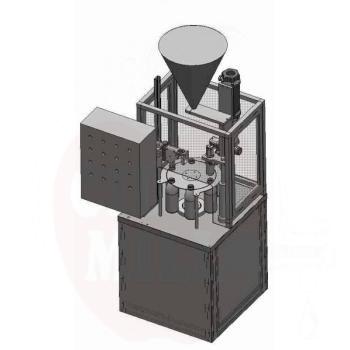

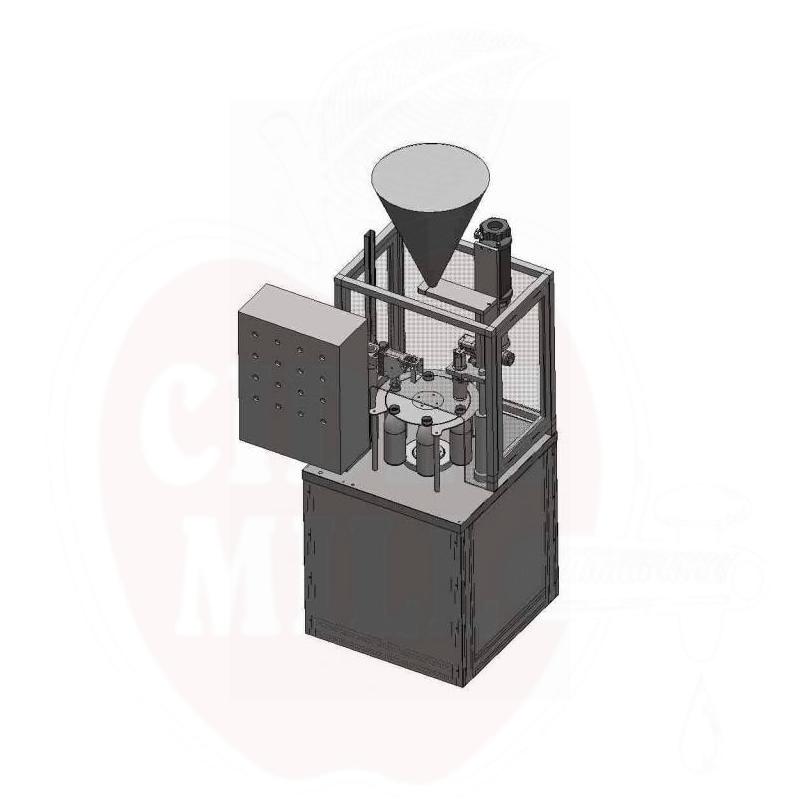

Multiblock Fill Milk: Semi-automatic filler, Corker

Semi-automatic bottle filling machine up to 600 bottles per hour High-quality Italian manufacturer's semi-automatic bottle dispenser-filler, ideal for filling various viscous liquids. The device can fill both room temperature and hot liquids. Main features: Filling volume: 40-1000ml Production capacity: up to 600 bottles per hour Suitable for yogurt, jam, honey, sauces, and creams Integrated capper for screw-cap bottles Technical equipment: Stainless steel frame with adjustable feet 2-meter bottle feeding conveyor with collection table Volumetric dosing pump Stainless steel dispenser with anti-drip nozzle Deflon-sealed system Pneumatic stopper system Additional information: The filling and cap closing process is automated. The operator's task is to place caps on bottles between the two operations. The capper operates with pneumatic air pressure, at low RPM, and with adjustable power. Note! Printer not included.

Semi-Automatic Filling Line for Carbonated Beverages - Washer, Filler, and Capper High-quality Italian manufactured semi-automatic filling set including container washing unit, 4-head isobaric filler, and crown cap applicator. The unit is adaptable with 2 or 6 filling heads and suitable for both crown caps and screw caps. Application and Technical Specifications Suitable for carbonated beverages: beer, cider, sparkling wine, carbonated water. Maximum filling pressure: 5 bar. Power consumption: 0.37kW/220V. Compressed air requirement: 120l/min/6bar, 24V. Machine dimensions: 1.92m x 0.8m x 0.40m. Maximum bottle dimensions: height 350mm, diameter 120mm. Machine Benefits and Additional Features Automatic filling process control. Pneumatic pump for liquid transfer. CO2 pre-insertion for foam-free filling. Transparent automatic safety door. Washing liquid recycling system. Automatic cap feeder with vibration system. Enhanced oxygen removal through water spraying. Included Accessories Integrated pressure washer. 1" connection valve seal kit. Adjustable filling level tubes. Cleaning dummies for valve maintenance. Non-return valve.

Automatic Beer Bottling Multiblock - For Precise and Efficient Production This modern multiblock system allows one operator to perform the entire bottling process, including container rinsing, isobaric filling (with +/-2mm accuracy) and crown capping. Main Features: Suitable for carbonated beverages, especially beer. Designed for glass bottles. 6 filling valve system. Single-stage 6-head rinsing system. Crown cap Ø 26 mm. Production capacity: up to 1200 bottles/hour (330 ml). Technical Specifications: Filling temperature: 0-2°C. Rotation direction: clockwise. Dimensions: 2065x1444x2100mm (H). Required floor space: 6000x2800mm. Food industry standard: AISI316 stainless steel. Additional Equipment: Sterile filtration system. Additional conveyors for single-operator operation. Adjustment kit for different bottle sizes. CO2 dosing system. Automatic foam removal system. Feed pump for filling line. Remote control capability via internet. Labeling device for two labels and neck label application.

Semi-Automatic Carbonated Beverage Filling System Professional Italian-made semi-automatic filling system, ideal for small producers and beverage industries. The device is designed for filling carbonated beverages (beer, cider, sparkling wine, carbonated water). Technical Specifications: 4 filling nozzles with foam reduction technology, Maximum filling pressure: 5 bar, Power consumption: 0.37kW/220V, Compressed air requirement: 120l/min/6bar, 24V, Device dimensions: 1.92m x 0.8m x 0.40m. Bottle Parameters: Maximum height: 350mm, Maximum diameter: 120mm. Basic Package Includes: Automatic filling system, Safety door, Adjustable filling level tubes, Seal kit for 1" connection valve. Additional Equipment and Features: Pneumatic filling pump, CO2 pre-injection system for foam-free filling, Cleaning solution recirculation system, Automatic cap feeding system, Oxygen removal through water spray during capping, Integrated tank cleaning system, Cleaning mode bottle dummies, Backflow prevention.

Fully automatic isobaric filling line for bottles and cans The compact rotary multiblock filling system enables efficient isobaric filling for both metal cans and glass bottles. The integrated solution includes a modern crown capping device and can sealing mechanism in a single rotating column. Main features of the equipment: Fully automated work process, compact rotary design, unified filling system for bottles and cans, energy-efficient operation mode, small footprint. The intelligently optimized construction of the filling line ensures maximum productivity with minimal energy costs. The equipment is ideally suited for smaller production spaces where efficient use of space is important.

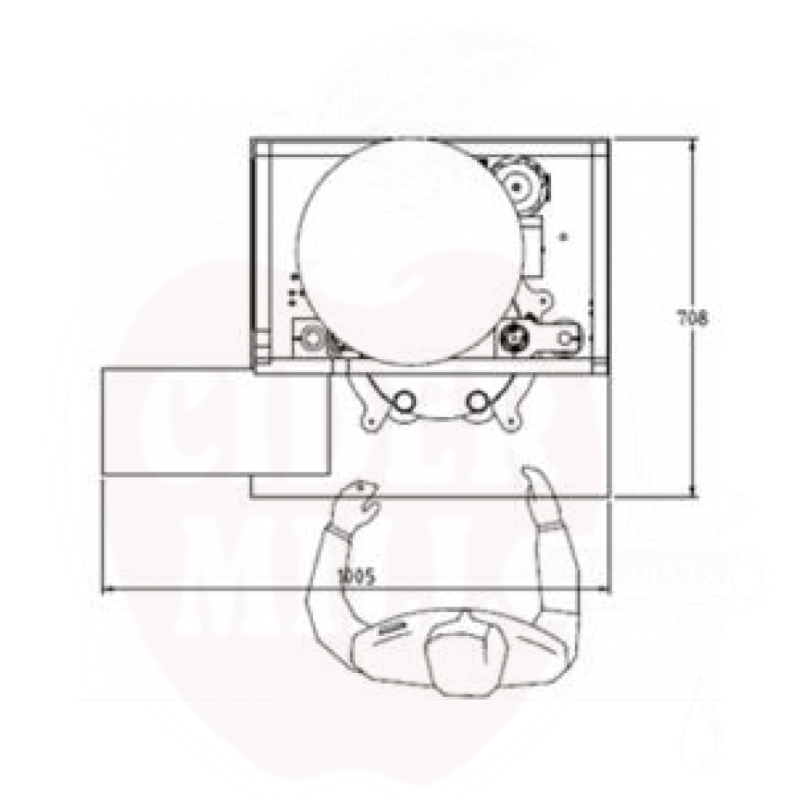

NB! Tegemist on kasutatud tootega! Kvaliteetne Itaalias toodetud jogurti villimis-, korkimis- ja markeerimisseade multiblokktehnoloogiaga. Seade on poolautomaatne ja töötab nurkelise pöörleva tööpinna põhimõttel. Kõik tootega kokkupuutuvad osad on valmistatud roostevabast terasest AISI 316. Villimisotsiku tihendid on vastupidavad, vastavad toiduainetööstuse nõuetele ning taluvad kõrgeid temperatuure. Seadme puhastamine on lihtne tänu kergesti avatavate klambritega konstruktsioonile. Villimine ehk pudeli täitmine toimub pudeli põhjast, mis väldib vahu teket. Seadme tööprotsess algab pudelite manuaalse pealeandmisega, millele järgneb automaatne pneumaatiline doseerimine ühe dosaatoriga, mis on astmeliselt reguleeritav vahemikus 100-1000 ml. Villimiskiirus on reguleeritav ning jogurtipaagi maht on 30 L. Seade on varustatud automaatse korgi etteandja ja pealepanijaga koos pingutajaga ning pneumaatilise printeriga kuupäeva ja partii märgistamiseks korgi peale. Seadme mõõtmed on 1100 x 700 x 2000 mm (kõrgus), toitepinge 380V, 50/60Hz 3P+N+T, võimsus maksimaalselt 1 kW. Suruõhu tarbimine on 15 NL/tsükkel (6 bar) ja standardne töörõhk 6 bar. Seade kaalub 150 kg ning suudab töötada tootmisvõimsusega 4 tsüklit minutis. Seadmega saab kasutada plastpudeleid mahuga kuni 1 L, mis võivad olla varustatud kas keermega või kroonkorgiga. Seade on mõeldud jogurtitootjatele, kes vajavad poolautomatiseeritud villimislahendust keskmise tootmismahu juures, võimaldades täpset doseerimist, korgi pealepanekut ja märgistamist ühes kompaktses süsteemis.

Semi-automatic bottle filling machine up to 600 bottles per hour High-quality Italian manufacturer's semi-automatic bottle dispenser-filler, ideal for filling various viscous liquids. The device can fill both room temperature and hot liquids. Main features: Filling volume: 40-1000ml Production capacity: up to 600 bottles per hour Suitable for yogurt, jam, honey, sauces, and creams Integrated capper for screw-cap bottles Technical equipment: Stainless steel frame with adjustable feet 2-meter bottle feeding conveyor with collection table Volumetric dosing pump Stainless steel dispenser with anti-drip nozzle Deflon-sealed system Pneumatic stopper system Additional information: The filling and cap closing process is automated. The operator's task is to place caps on bottles between the two operations. The capper operates with pneumatic air pressure, at low RPM, and with adjustable power. Note! Printer not included.

Semi-Automatic Monobloc Filling and Capping Machine Perfect solution for filling and packaging liquid and semi-liquid products. The device is suitable for precisely dosed filling into jars and bottles with volumes from 5ml to 1500ml. Main Features: Production capacity: up to 400 jars per hour (for 350ml packages). Suitable for hot filling at temperatures up to 95°C. Operates with compressed air (2-6 bar). Capable of processing viscous products containing fibers. Filling Volumes: 5-250 ml, 5-380 ml, 20-680 ml, 50-1500 ml. Technical Details: Main frame: AISI 304 stainless steel. Product contact parts: AISI 316L stainless steel. Food industry compliant seals. Pneumatic capper with adjustable torque. Air consumption: ~250 Nl/min. Machine Components: Volumetric filling module made of AISI 316L steel. Three-way rotary valve. Pneumatic two-way shut-off valve. Food industry standard flexible hose. Height-adjustable construction.

Industrial heat treatment block made of AISI 304 stainless steel. Professional production equipment for mixing raw materials, precise dosing, and capping. Made of high-quality AISI 304 stainless steel, ensuring maximum hygiene and durability. Production Capacity: Processes up to 1500 units per hour, ideal for medium and large-scale production facilities. Technical Specifications: Control system: Siemens PLC. Pneumatics: Camozzi quality components. Electrical connection: 400V - 50Hz. Power consumption: 8 kW. Compressed air: 6 bar, 900 Nl/min. Physical Dimensions: Equipment dimensions: 3000 x 2500 mm. Equipment weight: 900 kg. The automatic processing block is equipped with a complete safety system and complies with all European food industry standards.

Automatic Jar Filling and Sealing Machine for Beverage Bottling Professional stainless steel filling equipment and capper that perfectly matches your beverage industry needs. Technical Capabilities Suitable for jars with diameter 63-66 mm Accommodates jars with heights from 33cl to 50cl Production capacity: up to 600 jars per hour Operating Conditions Optimal filling temperature: 0°C to +2°C Working room temperature range: +2°C to +40°C Carbonation level: 4.6 g/l Filling from isobaric tank with precise measurement control Technical Specifications Electric power: 0.5 kW Power supply: 220V/24V Required compressed air: 6 bar Stainless steel construction Mechanical jar sealing system

Automatic Can Filling and Sealing Machine for Beverages Technical Specifications: Can dimensions: diameter 63-66 mm, height 33cl-50cl. Production capacity: up to 1200 cans per hour. Electrical connection: 220V/24V. Compressed air: 6 bar. Operating temperature: +2°C to +40°C. Filling Process Features: Optimal beverage temperature: 0°C to +2°C. Carbonation level: 4.5-5.5 g/l. Isobaric precise pressure control. CO2 dosing before and after filling. Automatic weight control. Equipment Features: Stainless steel construction. Electronic control panel. Mechanical lid sealer. Remote control capability via internet. Includes round collection table. Equipment Dimensions: Length: 2500 mm. Height: 3010 mm. Width: 950 mm. Made in Italy.
