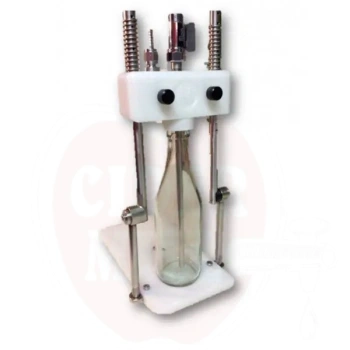

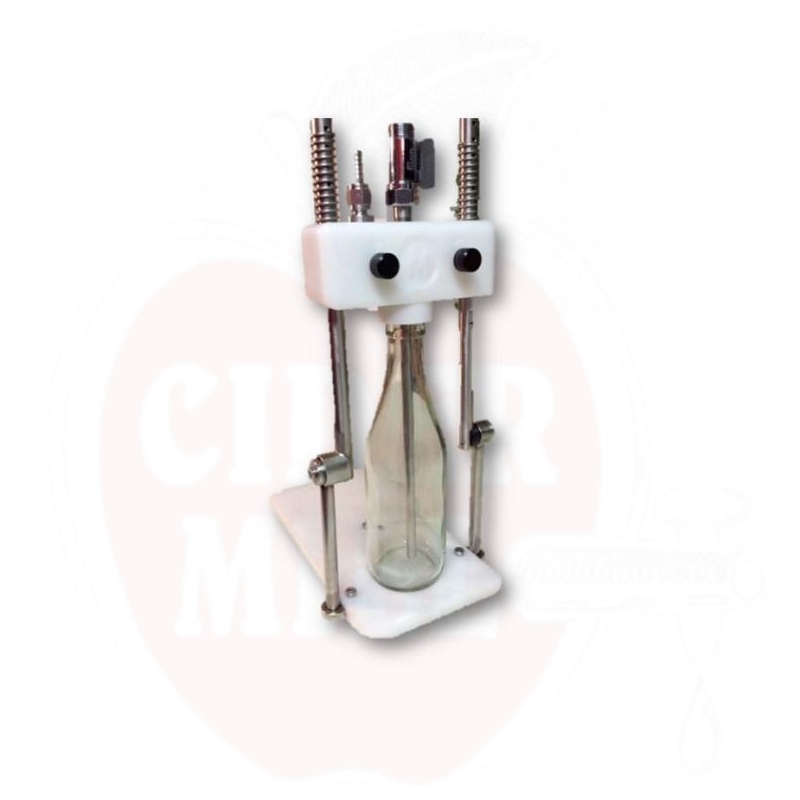

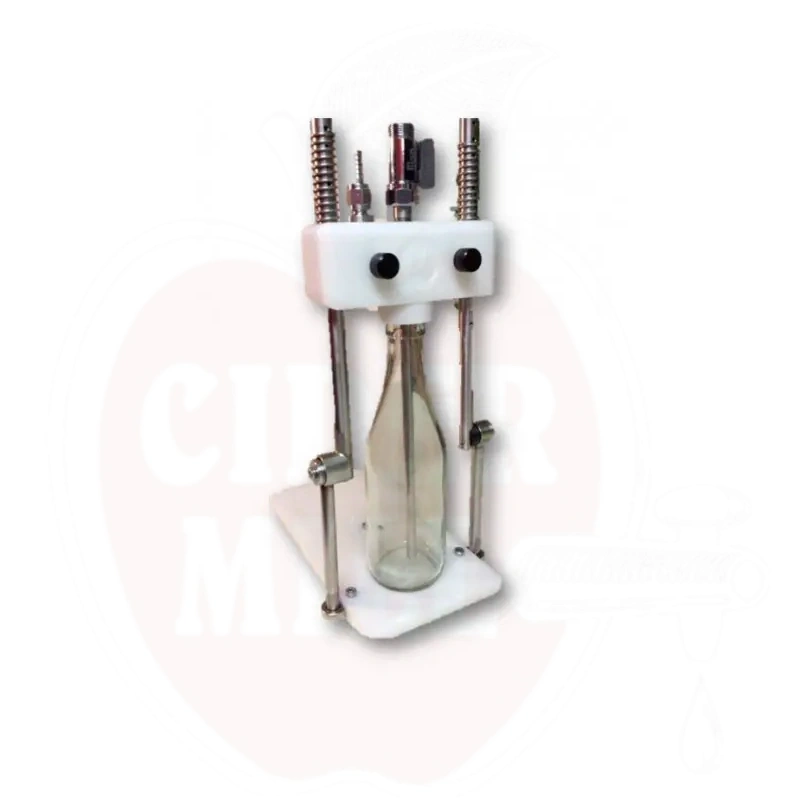

Isobaric filler CPF 2.0 up to 310mm bottles

Isobaric Small-Scale Filler Head for Swing-Top Bottles with Counter-Pressure Method Professional isobaric filling head specifically designed for filling swing-top bottles. The device operates using counter-pressure method, ensuring precise filling without foaming. Main Features: Ideal for craft beer, cider, and soft drink bottling. Precise dosing using counter-pressure method. Prevents product foaming and oxygen exposure. Compatible with standard swing-top bottles. Made from food-grade compliant materials. Technical Advantages: Maintains beverage quality. Fast and efficient filling process. Easy to clean and maintain. Durable construction. The isobaric filling head is a valued tool among small-scale producers, enabling professional filling results. The device is easy to use and perfectly suited for smaller production volumes.

Isobaric Filler for Carbonated Beverages - Italian Quality Equipment Professional isobaric filling equipment equipped with two filling nozzles, enabling efficient filling of various carbonated beverages. The device is manufactured in Italy, ensuring the highest quality and reliability. Technical Specifications: Maximum filling pressure: 5 bar Power consumption: 0.37 kW (220V) Compressed air requirement: 120 l/min (6 bar, 24V) Production capacity: approximately 200 bottles per hour (0.5l) Equipment Features: Suitable for filling beer, cider, sparkling wine, and carbonated water Special foam-reducing nozzles Adaptable to different bottle sizes Dimensions and Bottle Parameters: Equipment dimensions: height 1.92m, width 0.53m, depth 0.40m Maximum height of compatible bottles: 350mm Maximum diameter of compatible bottles: 120mm This automatic filling equipment is an ideal choice for small producers and medium-sized beverage manufacturing companies, ensuring a quality and efficient filling process.

Isobaric Filling Machine with 4 Nozzles - Professional Solution for Beverage Filling High-quality Italian-made isobaric filling machine designed for filling various carbonated beverages. The device is ideal for filling beer, cider, sparkling wine, and carbonated water. Technical Specifications: Maximum filling pressure: 5 bar, Power consumption: 0.37kW/220V, Compressed air requirement: 120l/min/6bar, Control voltage: 24V, Dimensions: 1.92m x 0.8m x 0.40m. Bottle Parameters: Maximum bottle height: 350mm, Maximum bottle diameter: 120mm. Standard Equipment: 4 foam-reducing filling nozzles, Precise pressure control, Stainless steel construction. Available Accessories: Automatic filling system with push-button operation, Pneumatic pump for liquid transfer, Container cleaning system (water and air or air only), Capping device, Seal kit for 1" connection valve, Various filling level adjustment tubes, Bottle models for valve maintenance, Non-return valve, Compressed air dryer for rust protection, Air compressor.

Isobaric Filling Machine - Professional Solution for Carbonated Beverage Filling High-quality Italian-made isobaric filling machine is equipped with two filling nozzles, ensuring efficient and quality filling process. The device operates under pressure (2-4 bar), preventing raw material contact with oxygen and maintaining the original taste and quality of the beverage. Technical Features and Capabilities Power source: 230V electricity or 6-bar air pressure. Special foam-reducing nozzles. Dimensions: height 2.145m, width 0.70m. Weight: 96kg. Mobility-enabling wheels (optional). Filling Capabilities The device is perfect for filling various carbonated beverages: Beer, Cider, Sparkling wine, Carbonated water. Bottle Parameters Maximum bottle height: 305mm. Maximum bottle diameter: 88mm.

Professional Manual Valve for Liquid Filling. High-quality manual valve system specifically designed for precise filling of pre-pressurized liquids. Ideal for filling beer and other carbonated beverages. Technical Specifications: Bottle opening diameter: 14-20mm, Minimum bottle height: 220cm, Connection tube inner diameter: 5-6mm. Main Benefits: Foam-free filling, Quick filling process, Easy installation, Three operating modes: CO2 inlet, liquid inlet, closed position. Complete System: For a fully functional filling system, you additionally need: Pressure tank, CO2 cylinder, Regulator, Connection hoses with fittings. We also offer complete system assembly service - contact us for a personalized solution.

Isobaric Filling Device for Two Bottles Professional filling device made of AISI 304 stainless steel and food-grade PP plastic. Perfect solution for bottling sparkling wines, soft drinks, and beer into glass or PET bottles. Technical Specifications Filling capacity: 100-250 bottles per hour (0.35-0.65l) Maximum working pressure: 5.5 bar Stainless steel filling valves Triple valves for CO2 input, filling, and shutdown Construction and Design Removable stainless steel drip tray with grid HDPE plastic adjustable height setting Food-grade pipe fittings and hoses Adaptable for different bottle sizes Operation Simple two-stage filling process: Turning valve to one side: filling container with CO2 Turning valve to other side: filling with liquid Valve center position: closing when desired level is reached Factors affecting productivity: beverage quality and pressure, bottle size, air temperature, beverage temperature, CO2 pressure, and operator experience.

Automatic Filling Machine for Small Producers - for Precise and Efficient Filling A compact and efficient filling machine specifically designed for small producers who work with craft beer, soft drinks, cider, wine, or water bottling. The device is available in three different versions: 4-, 6-, or 8-head, allowing you to choose the solution that suits your production volume. Flexible Filling System for Different Bottles The filling machine works successfully with both glass and PET bottles with capacities from 200ml to 2 liters. Thanks to the preset calibration system, the device automatically ensures accurate volume filling in each bottle. Complete Filling Solution with Additional Equipment To enhance the filling line, we offer the following additional equipment: Carbonators for beverage carbonation, Automatic cap sealers, Efficient cooling systems, Precise labeling machines, Bottle rinsing and washing equipment, Pasteurization equipment.

Cannular Fully Automatic Canning Line - Single Line for Brewers Cannular fully automatic single-line canning system is a modern solution for packaging beer and other carbonated beverages. This compact device is specifically designed for microbreweries producing 1000-5000 liter batches. Benefits of Canning Beer canning ensures: Better product shelf life due to low oxygen levels Complete hermetic sealing Complete light protection Environmentally friendly packaging Convenient outdoor use Technical Specifications Power supply: single-phase 230V Equipped with B64 cartridge (for 202 can bodies) Dimensions: standard pallet size Titanium-coated hardened cartridge (hardness 58-62 dH) Production capacity: up to 15 cans per minute Oxygen level: below 40 ppb Operating Principle and Usage The canning line operates fully automatically: empty cans move independently to the filling position, filling occurs, hermetic sealing is performed, and finished products are ejected. The system requires only one operator and ensures consistent quality throughout the production process. Maintenance and Cleaning The equipment is easy to clean thanks to hose-washable surfaces. Regular maintenance ensures long-term and trouble-free operation. Ideal for small and medium-sized breweries looking to automate their production and ensure high-quality packaging.

NukaTap Counter Pressure Bottle Filler - Professional Beer Filling Equipment NukaTap counter pressure filler is a professional device made entirely of stainless steel, enabling beer filling from kegs to bottles while perfectly preserving the drink's taste, aroma, and carbonation. The device is compatible with all standard beer taps with an internal spout diameter of 10.0 mm or 3/8" universal thread. Main Features and Benefits This compact and durable device includes: Telescopic tubing for quick cleaning, Integrated counter pressure relief valve for precise control, Quick-disconnect carbonation cap, Duotight fittings for beer line connection. Technical Information and Usage The counter pressure filler operates on the pressure difference principle: Bottle is filled with CO2 to keg pressure, Beer flows into the bottle maintaining carbonation, Pressure remains balanced throughout the filling process. Compatibility and Maintenance The device is compatible with most forward-sealing taps, including: NukaTap SS models, NukaTap FC models, Perlick taps. Thanks to its stainless steel construction, the device can be cleaned with various chemicals, ensuring long-term durability and hygiene. The NukaTap counter pressure filler is an ideal choice for both home beer bottling and professional use, maintaining beer quality and taste throughout the entire filling process.
