Tree shaker Jagoda G-004 Apple Trees 50-60 Tree/H
Professionals recommend - producers prefer!
EAN: 2000000049670
Brand:

Unit: pc
Stock qty: On special order
Delivery time: Tootja laos (Poola)/Valmistaja varastossa (Puola)/Producer stock (Poland)
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.

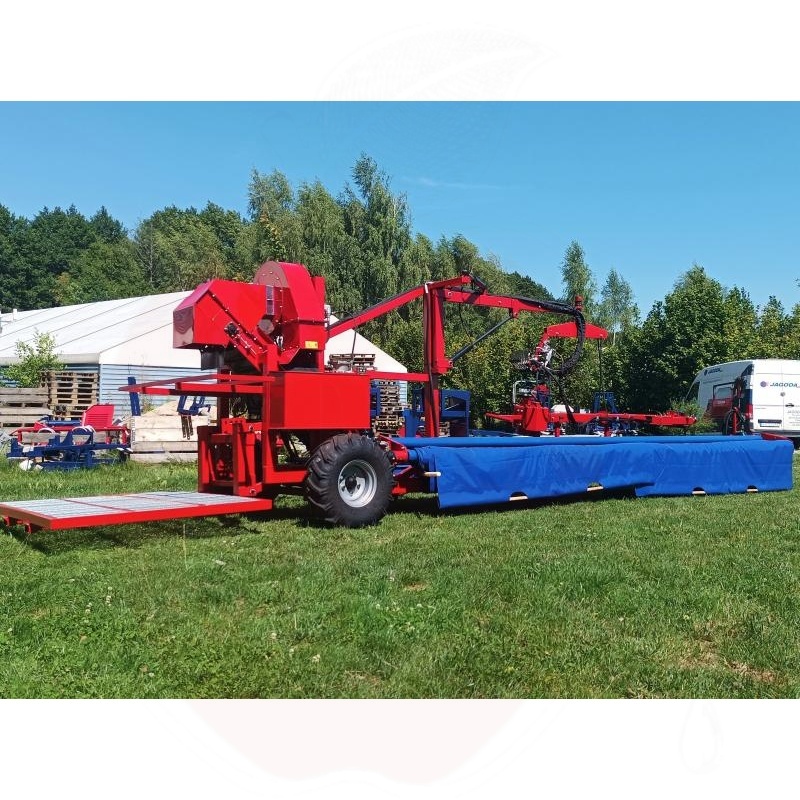

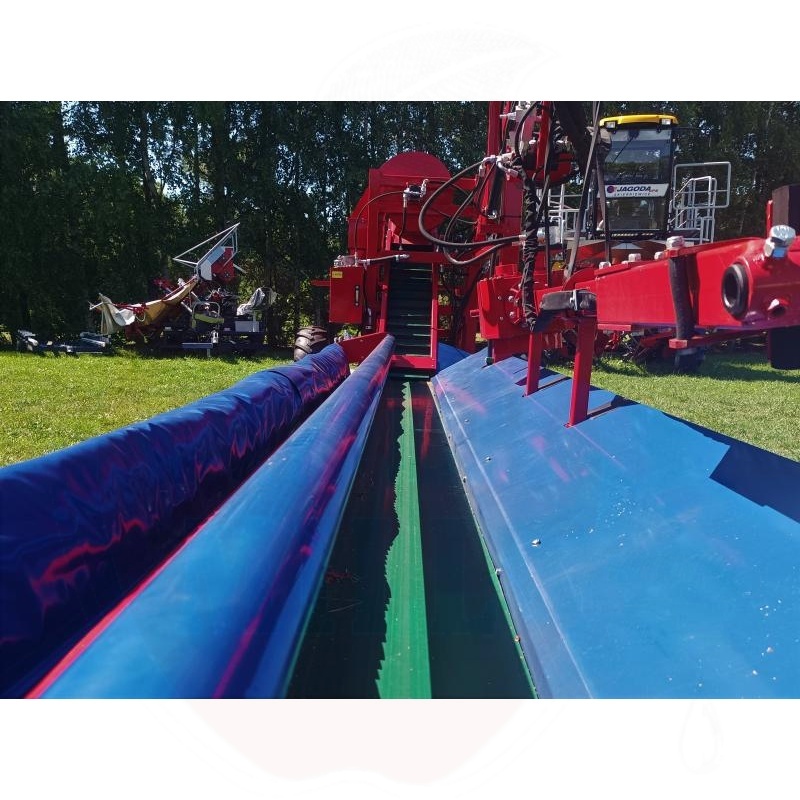

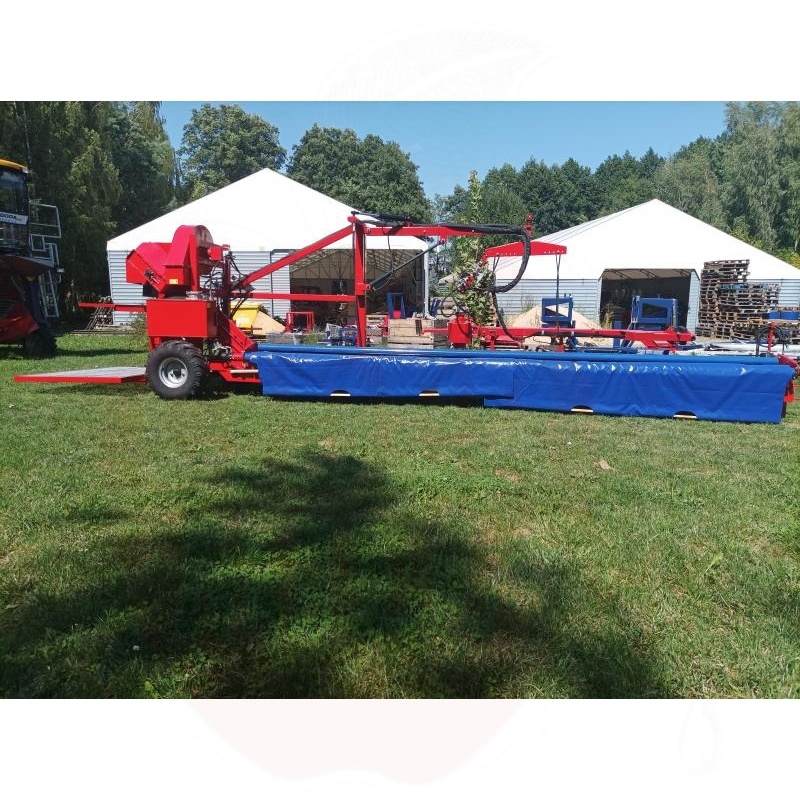

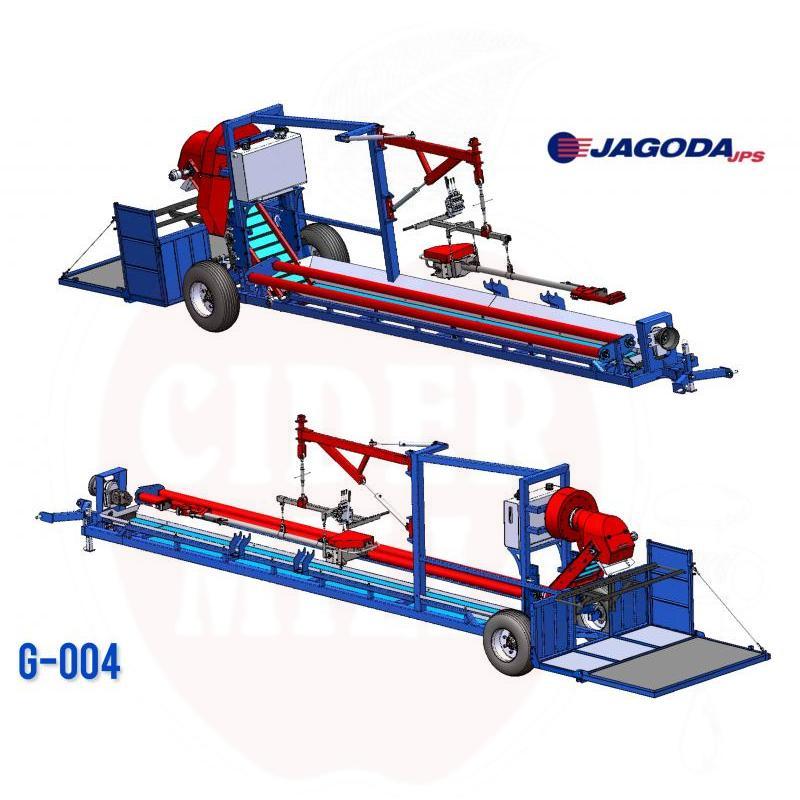

JAGODA G-004 Professional Tree Shaker
JAGODA G-004 is a versatile tree shaker suitable for harvesting apples, pears, sour cherries, plums, hazelnuts, almonds, olives, and walnuts. Thanks to its adjustable collection area (width 1.5-3m), the machine is suitable for orchards with different planting densities.
Main Advantages
- Harvest efficiency up to 95%
- Productivity 50-60 trees per hour (0.09-0.1 ha/h)

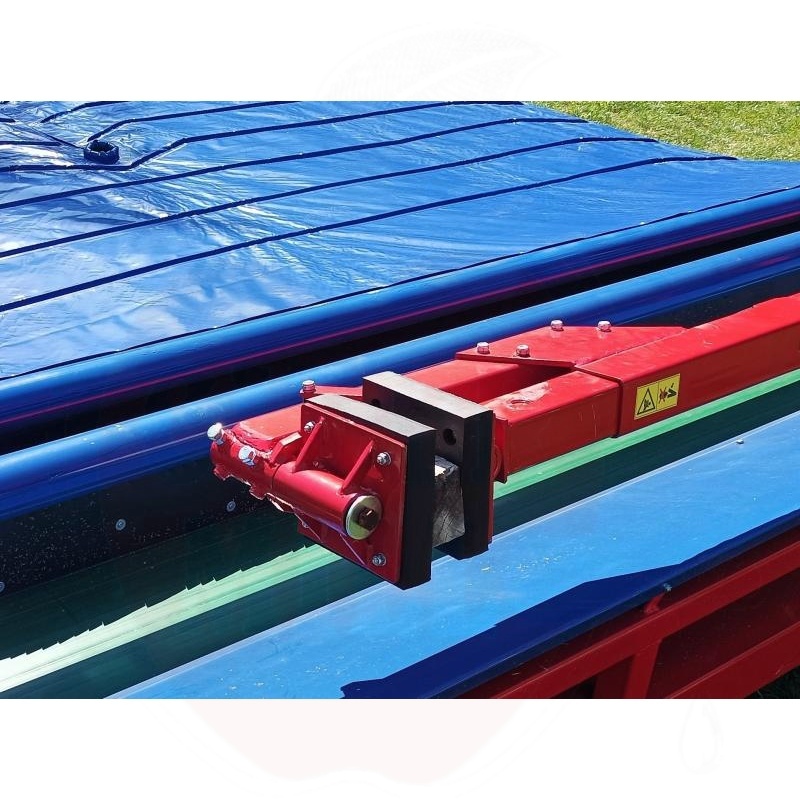

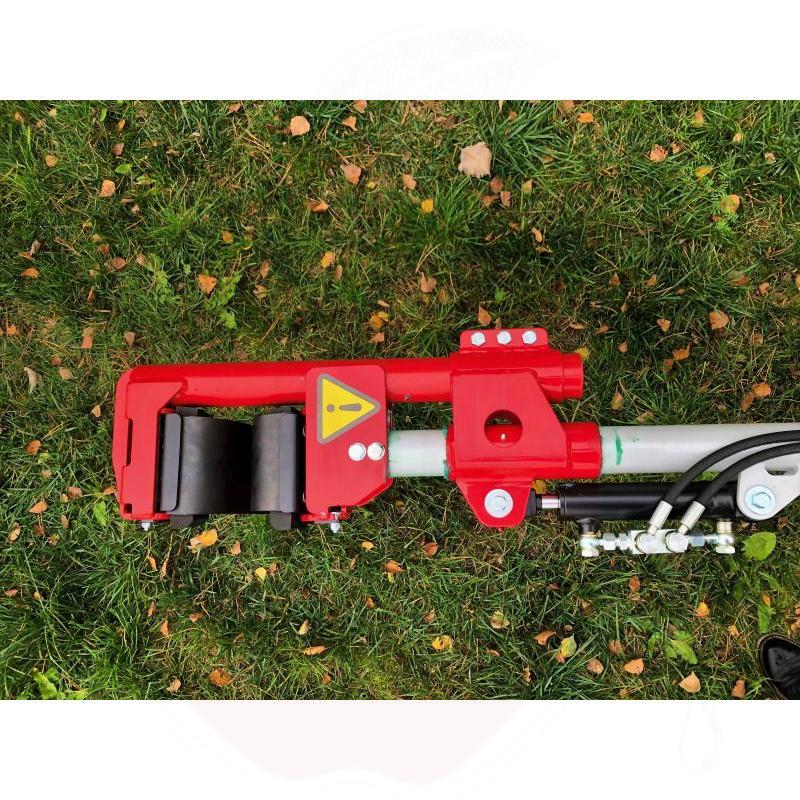

- Innovative, tree-friendly shaking head
- Fully equipped trailed system
Technical Specifications
- Minimum tractor power: 30 hp
- PTO speed: 200 rpm
- Working distance: 9000 mm
- Working width: 5600 mm
- Working height: 700-1200 mm
- Weight: 1800 kg
- Trunk grip range: 50-250 mm
Operating Features
- Minimum row spacing: 2.5 m
- Collection area height: min 0.7 m
- Compatible with standard bins (1200x1000x760 mm)
- Optional equipment available for smaller boxes (600x400x150 mm)
Cider Mill OÜ is the official representative of JAGODA products in Estonia. Transport from manufacturer's warehouse available for additional fee.
Keywords: tree shaker, apple tree shaker, shaking device, orchard equipment, JAGODA G-004, fruit harvesting machine, fully automatic shaker, agricultural equipment
Weight (kg) | 0.000000 |
High (m) | 0 |
Width (m) | 0 |
Length (m) | 0 |
The hydraulic fork lift for tractor is designed for loading and unloading goods placed on pallets, in containers and boxes, and for transporting them over short distances. The loader is a device mounted on the three-point linkage system (TUZ), designed for 0.6-0.9T class tractors with external hydraulic output (single-acting cylinder). Maximum lifting height is 2.4 m and the maximum lifting capacity is 700 kg.
The hydraulic fork lift consists of two main components: the lifting mechanism and loader frame, and the cross bar of the tractor's three-point linkage system. The lifting mechanism consists of outer guide, inner guide, fork plate, lifting forks, piston cylinder, and lifting cable. The frame consists of steel frame construction, supports (left and right), and double-acting piston cylinder. Components required for hydraulic system installation are supplied separately.
The product is delivered directly from manufacturer's warehouse and transport cost is calculated in the shopping cart.
The device is easy to use - it attaches to the tractor's three-point linkage system and connects to the tractor's hydraulic system. The loader enables lifting and transporting heavy cargo boxes or pallets, moving them to the required location. The lateral hydraulic shift device allows the forks to move sideways, enabling more precise positioning when handling cargo.
Technical parameters: Model: PHW-240/T Machine type: Mounted on tractor TUZ Weight: 310 kg Lifting capacity: 700 kg Lifting height: 240 cm Fork spacing: 26-90 cm (adjustable)
Overall dimensions: Length: 45 cm Width: 96 cm Height: 176 cm
