Tree shaking unit GACEK- Stone fruit harvester
Professionals recommend - producers prefer!
EAN: 2000000049687
Brand:

Unit: pc
Stock qty: On special order
Delivery time: Tootja laos (Poola)/Valmistaja varastossa (Puola)/Producer stock (Poland)
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.
Video

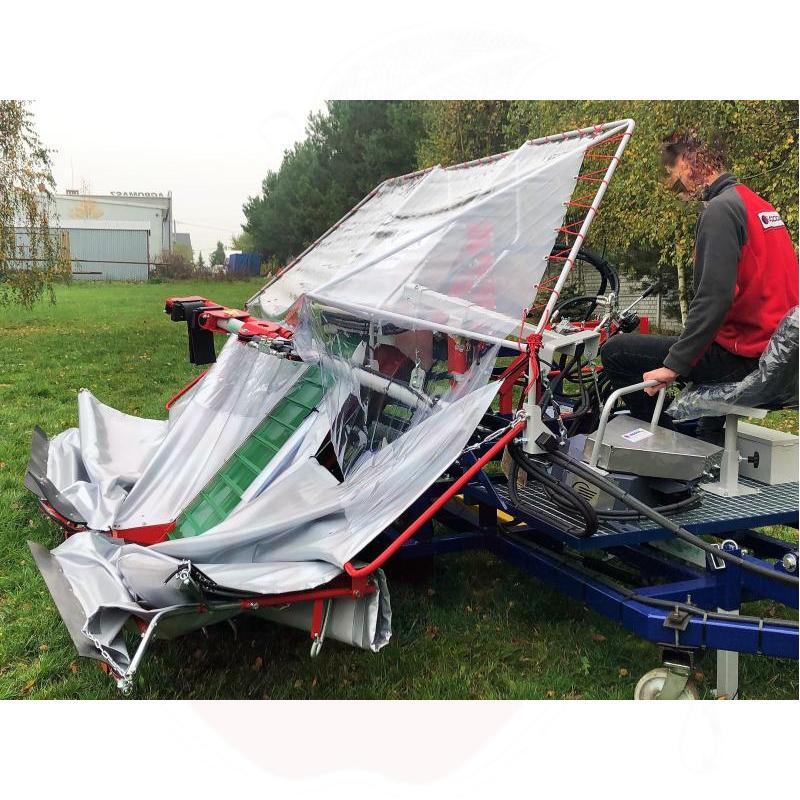

Jagoda GACEK tree shaker - innovative solution for fruit harvesting

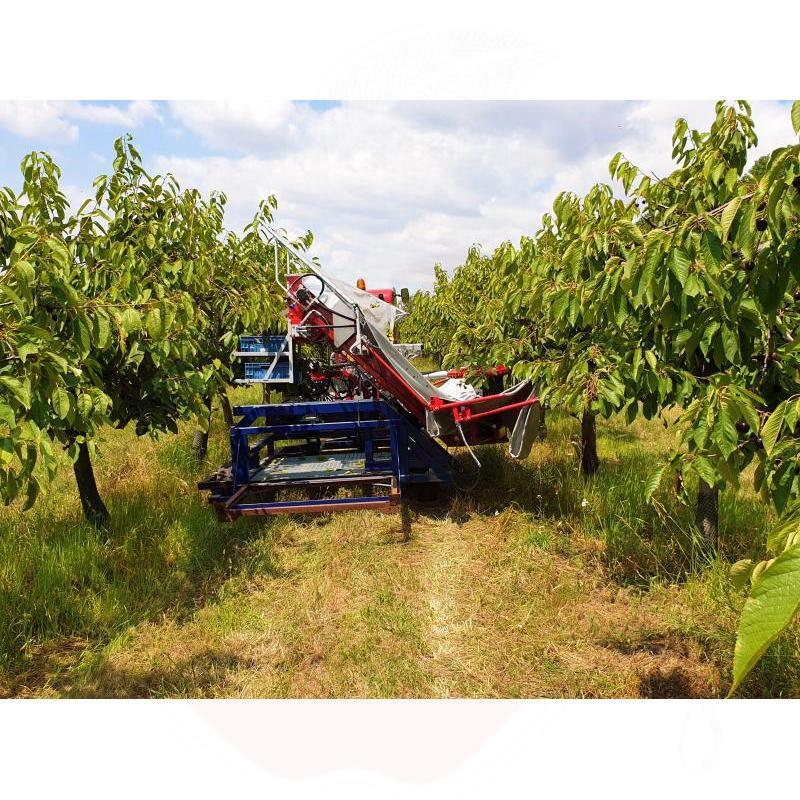

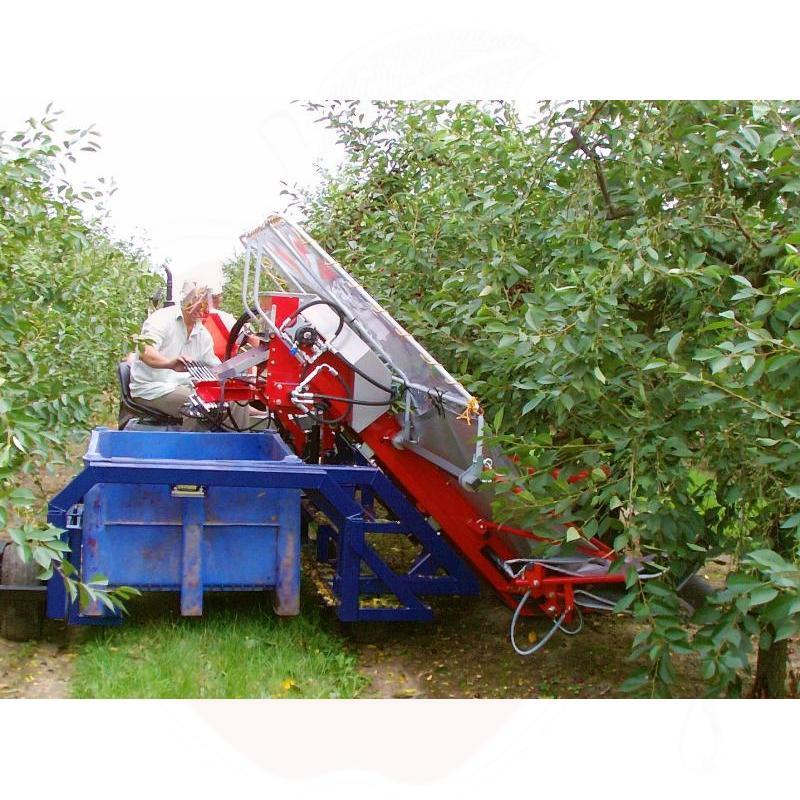

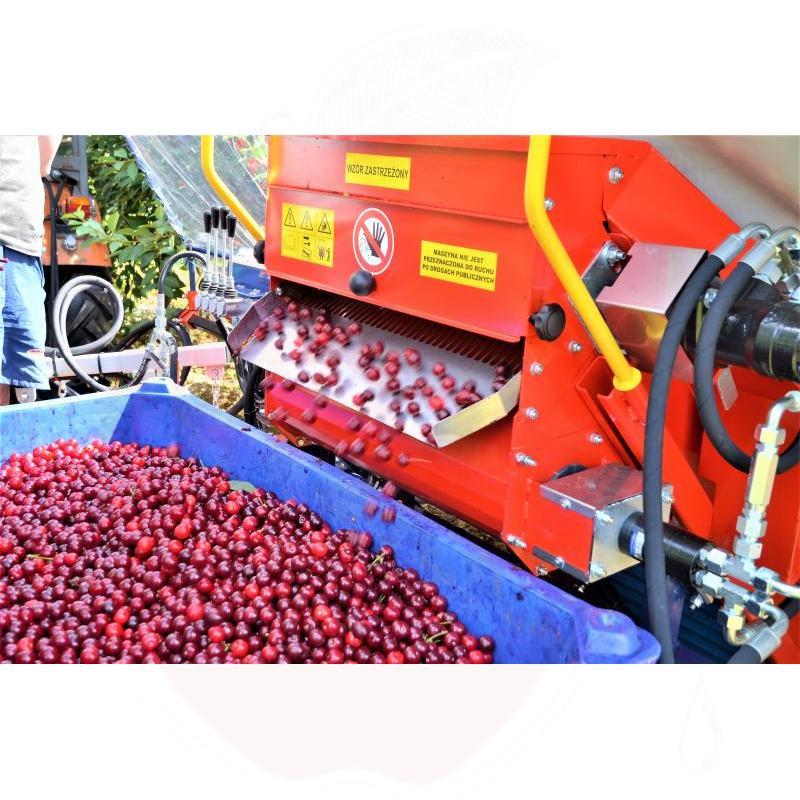

GACEK tree shaker is specially designed for efficient harvesting of sour cherries, plums, hazelnuts and almonds. The device was developed by Poland's leading horticultural institute JAGODA JPS in Skierniewice (patent number P-386556).
Unique features

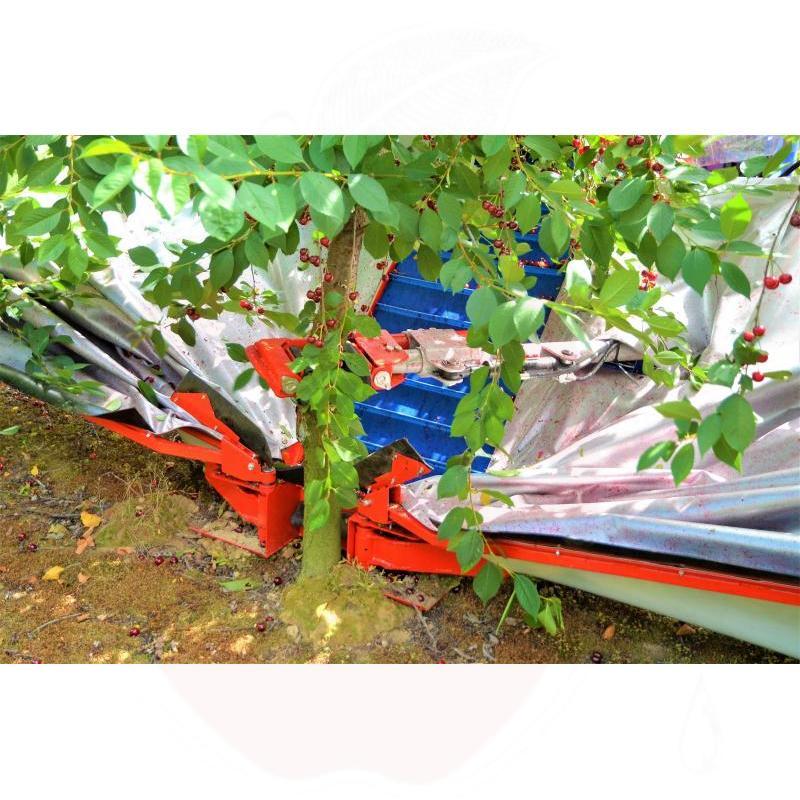

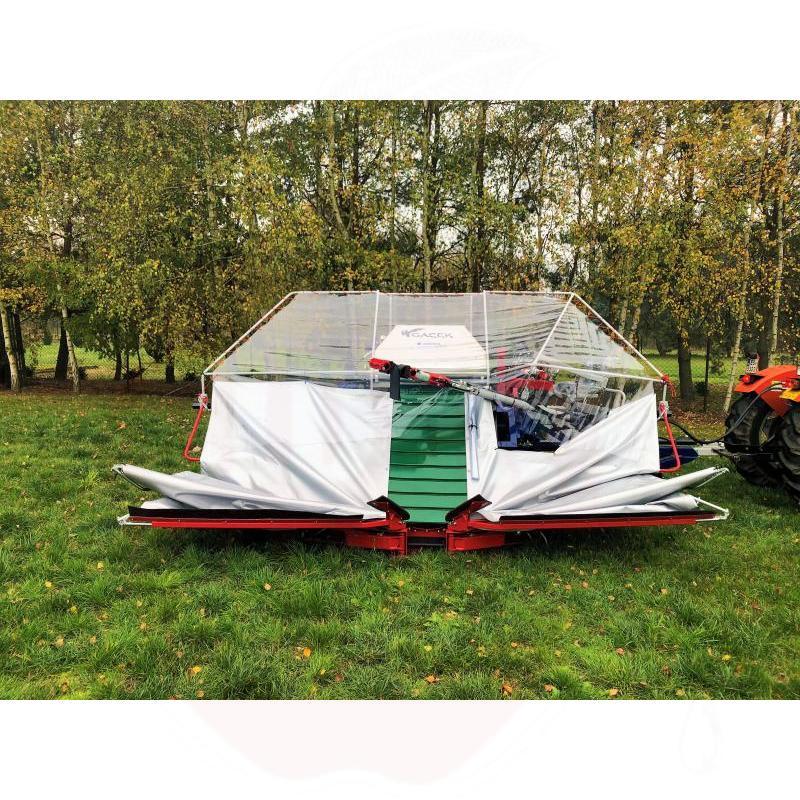

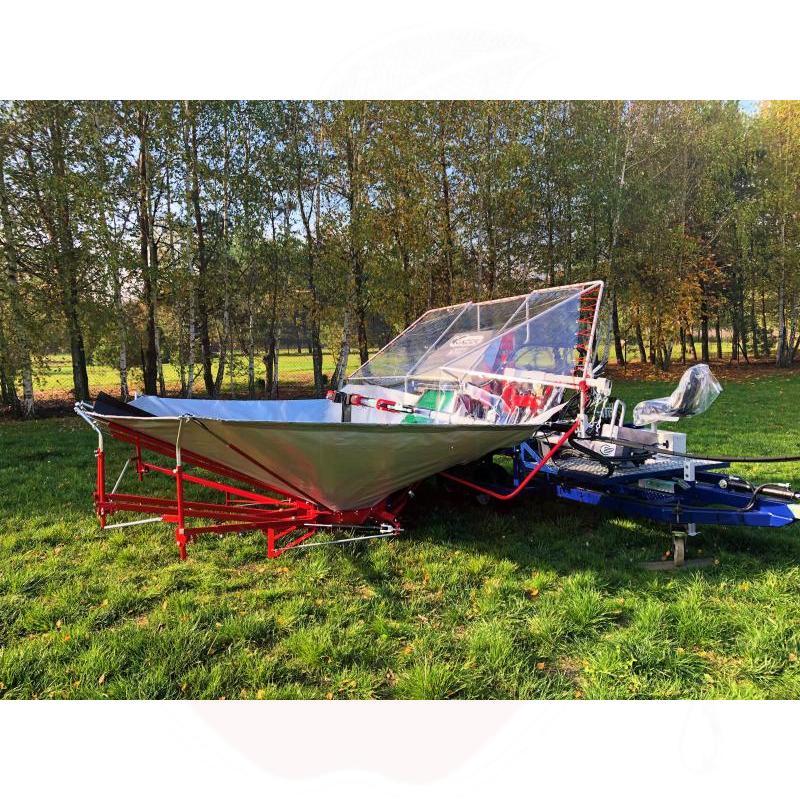

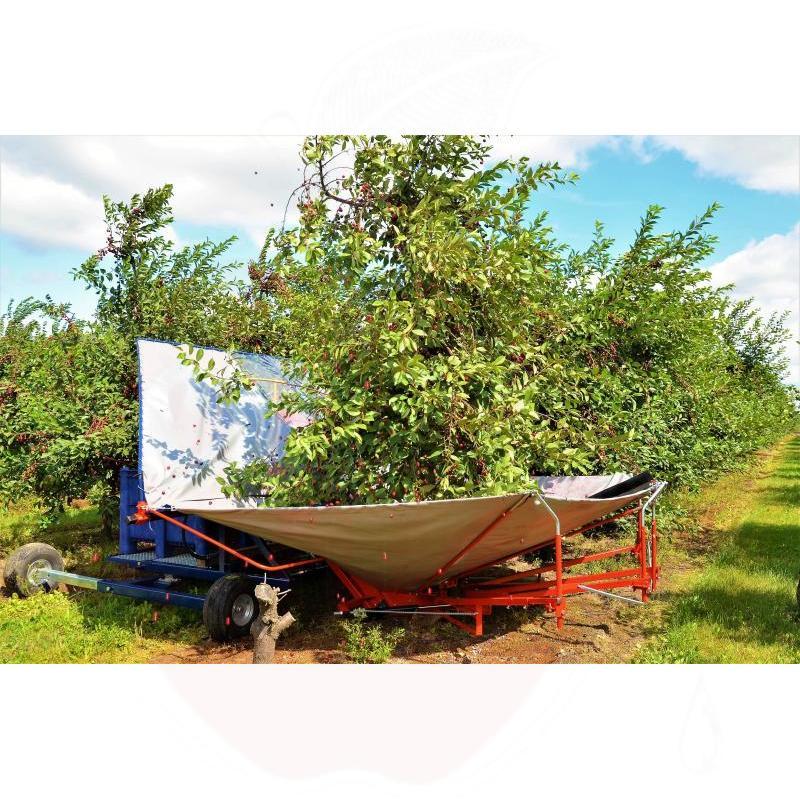

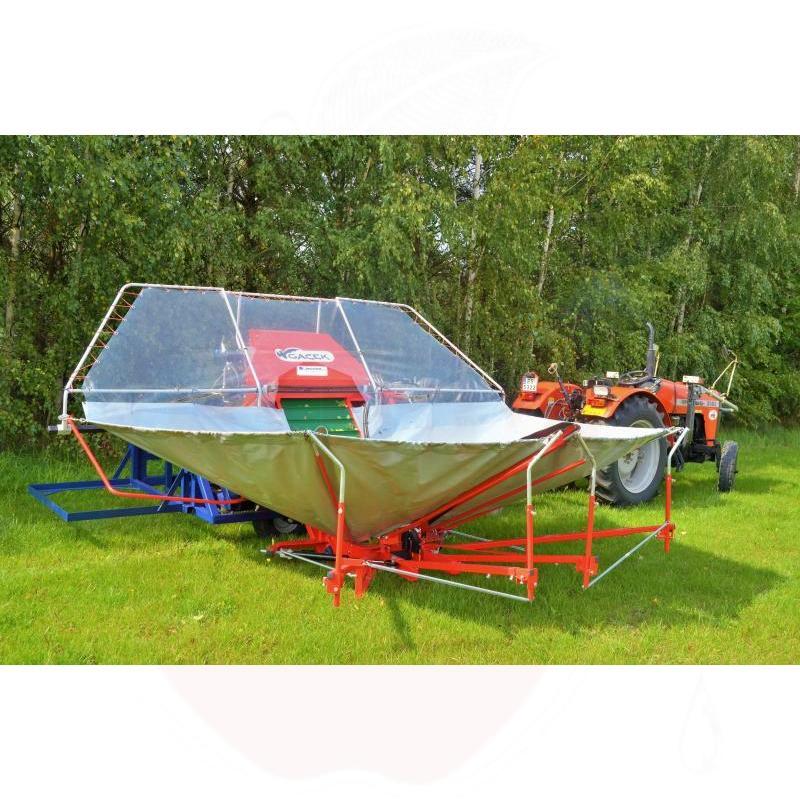

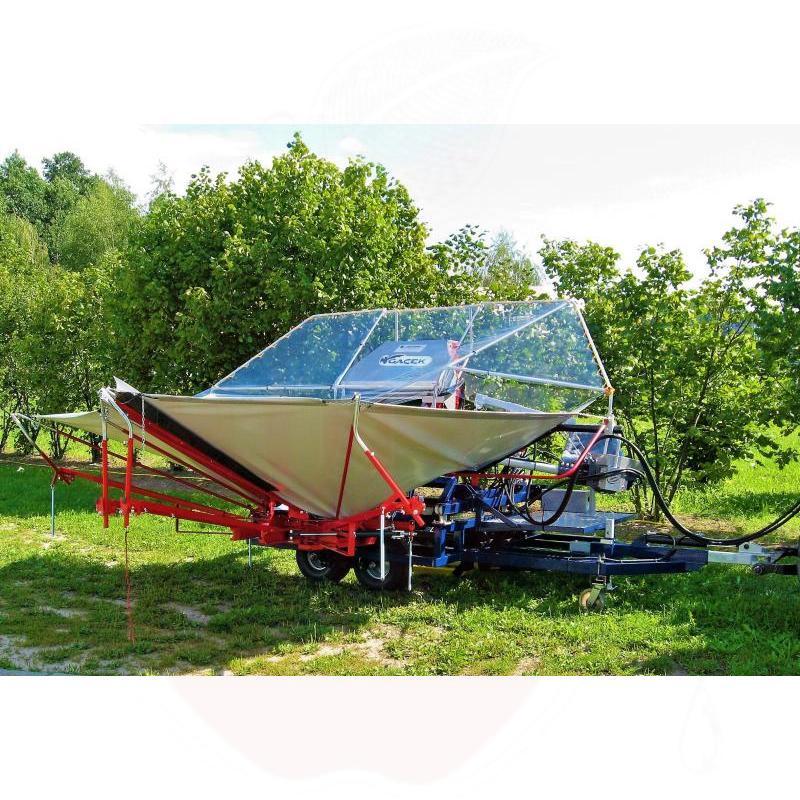

- Innovative inverted umbrella with automatic folding system

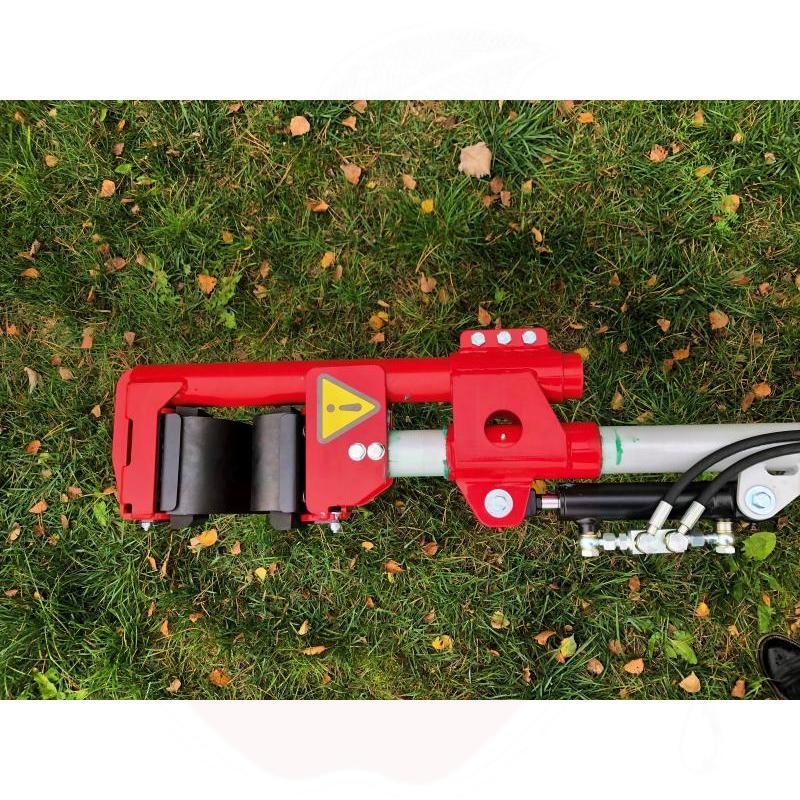

- Tree-friendly shaking head with adjustable force
- Suitable for plantations up to 5 hectares
- Work capacity: 50-60 trees per hour
Technical specifications
- 3-point tractor mounting
- Minimum tractor power: 30 hp
- Hydraulic requirement: min 25 l/min
- Maximum working width: 3700 mm
- Maximum reach: 5200 mm
- Working height: 2400 mm
- Weight: 1250 kg
Operating conditions
- Row spacing: min 4 m
- Tree spacing in row: min 2.2 m
- Trunk diameter: 50-220 mm
- Collection height: min 0.7 m
- Harvesting accuracy: up to 95%

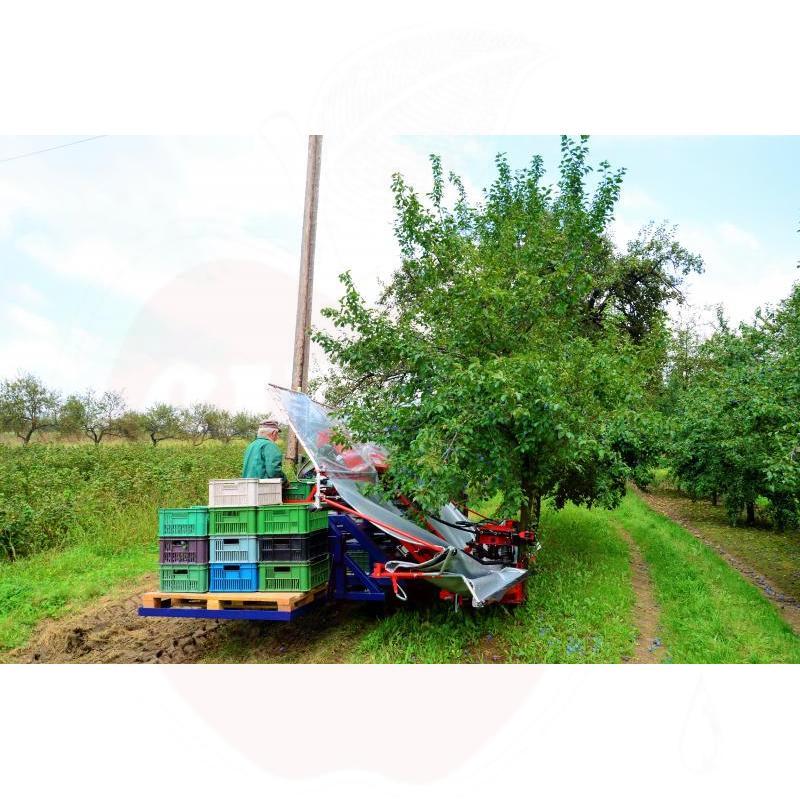

It's possible to collect harvest into large pallet boxes (1200x1000x760mm) or smaller crates (600x400x150mm). Optimal operation requires 2-3 operators.
Cider Mill OÜ is the official representative of Jagoda products in Estonia. Transport from manufacturer's warehouse available for additional fee.
Keywords: fruit harvesting machine, tree shaker, cherry shaker, plum shaker, jagoda gacek, fruit harvesting equipment, nut harvester, plantation equipment

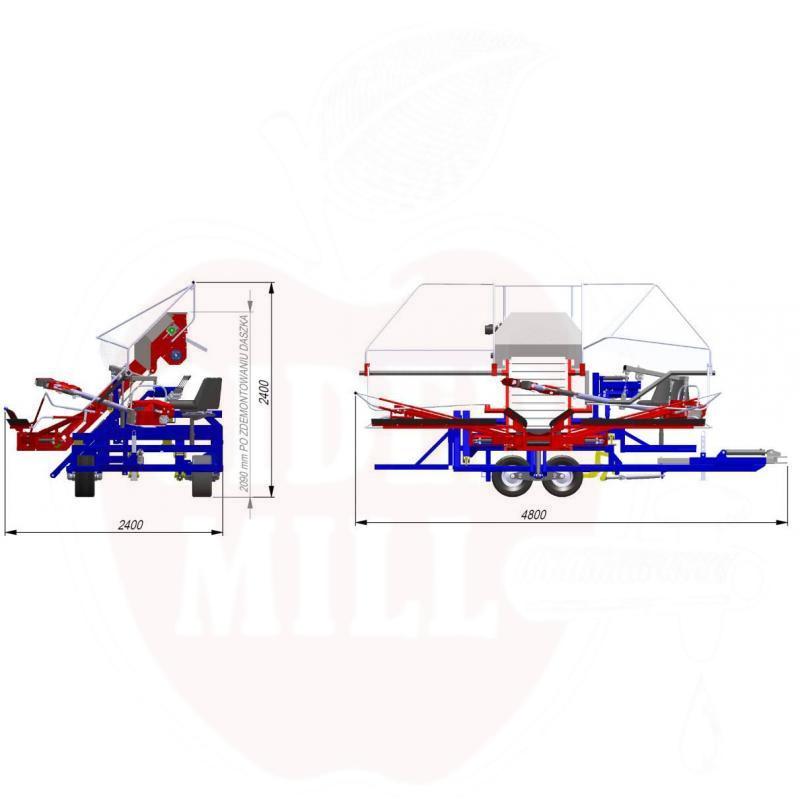

Weight (kg) | 1250.000000 |
High (m) | 2.4 |
Width (m) | 2.4 |
Length (m) | 4.8 |
