Berry Harvester: JAREK 5 Plus
Professionals recommend - producers prefer!
EAN: 2000000010670
Unit: pc
Stock qty: On special order
Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.
Video

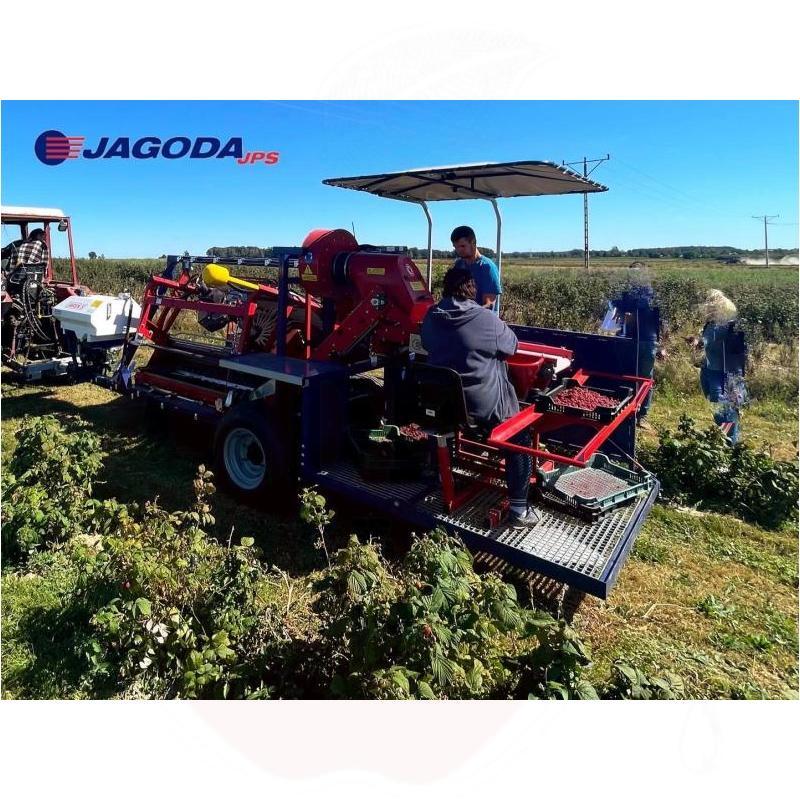

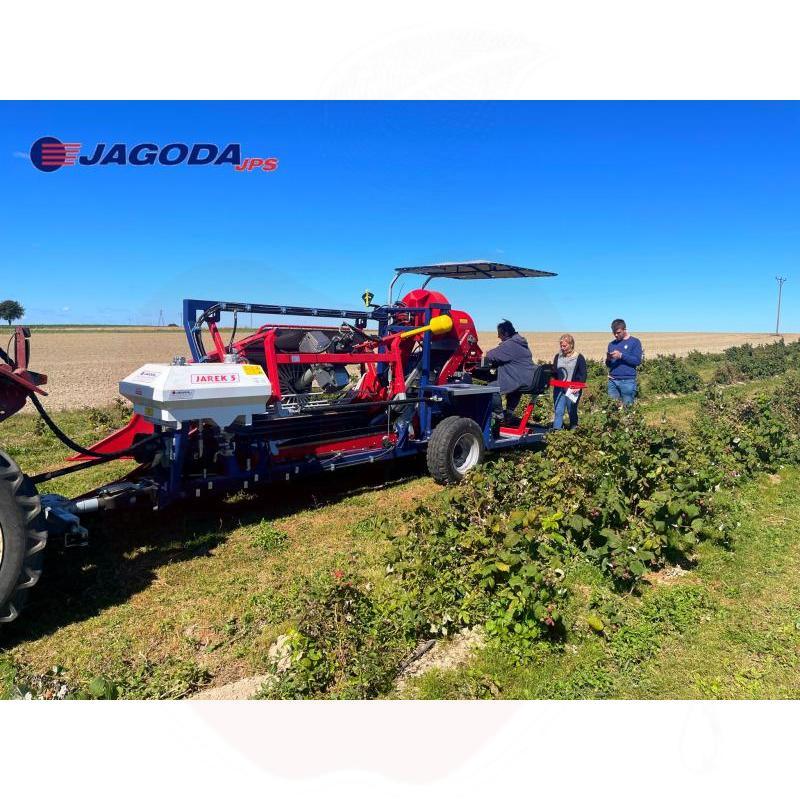

JAREK 5 - Modern Half-Row Harvester for Berry Growers

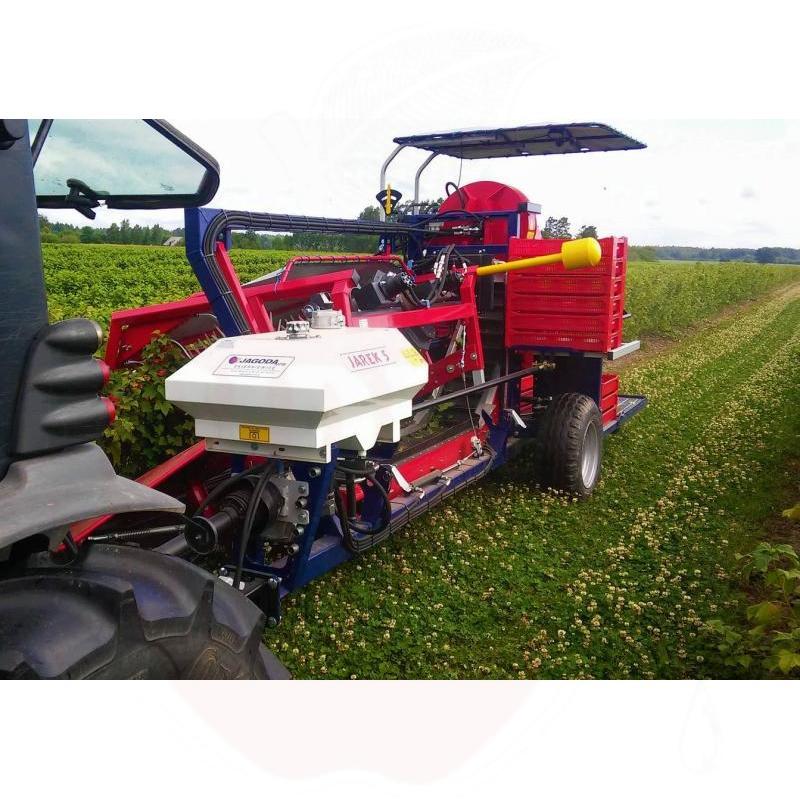

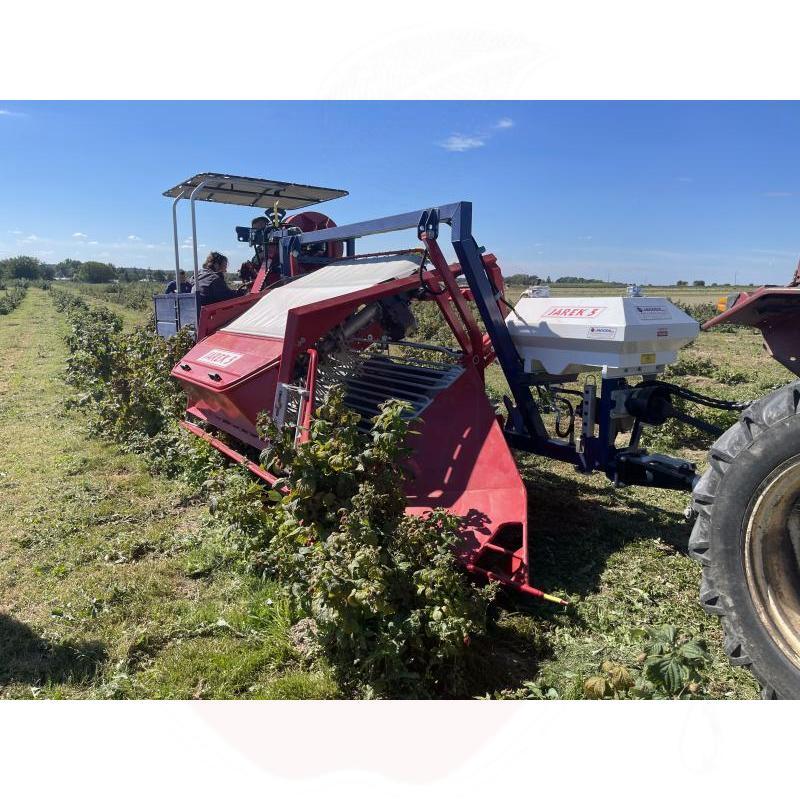

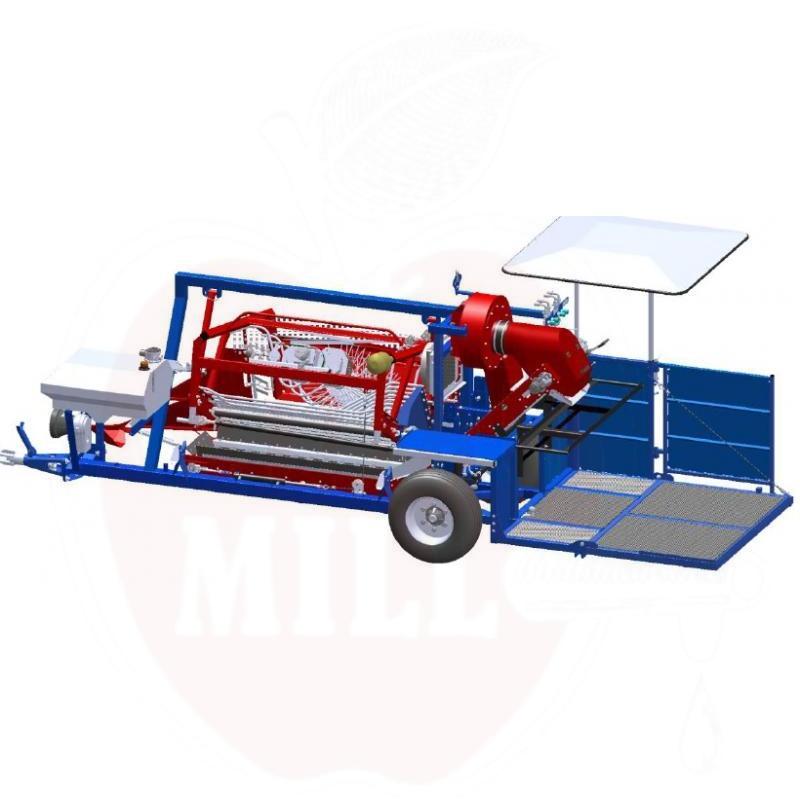

JAREK 5, ARONIC, JAREK 5H, and JAREK 5R are innovative tractor-mounted half-row harvesters. They are specifically designed for harvesting black currants, red and yellow currants, gooseberries, aronia, haskap, fall-bearing raspberries, saskatoon, and rose hips.
Innovative Technology

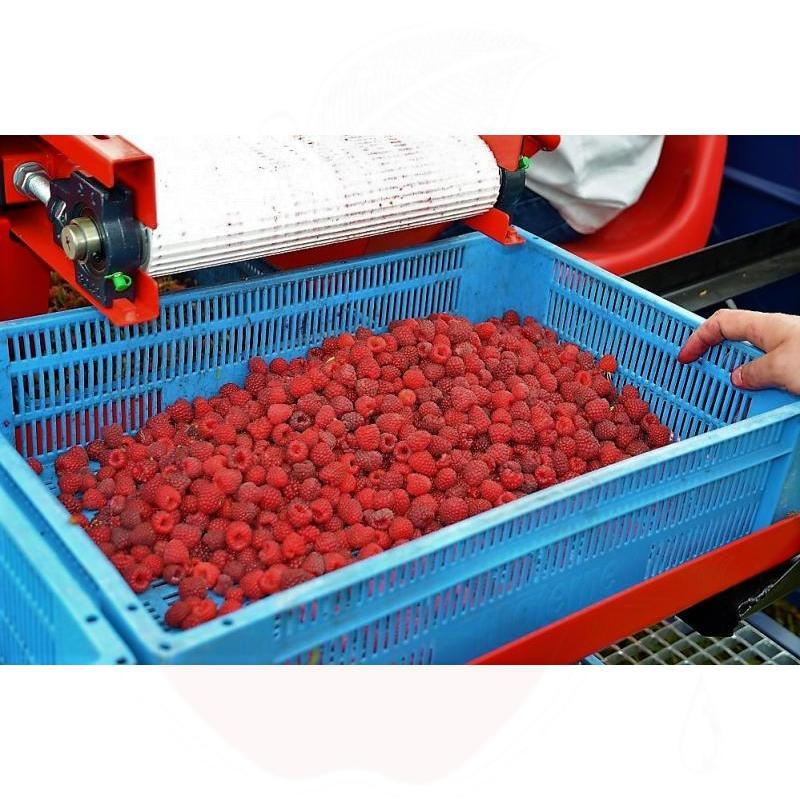

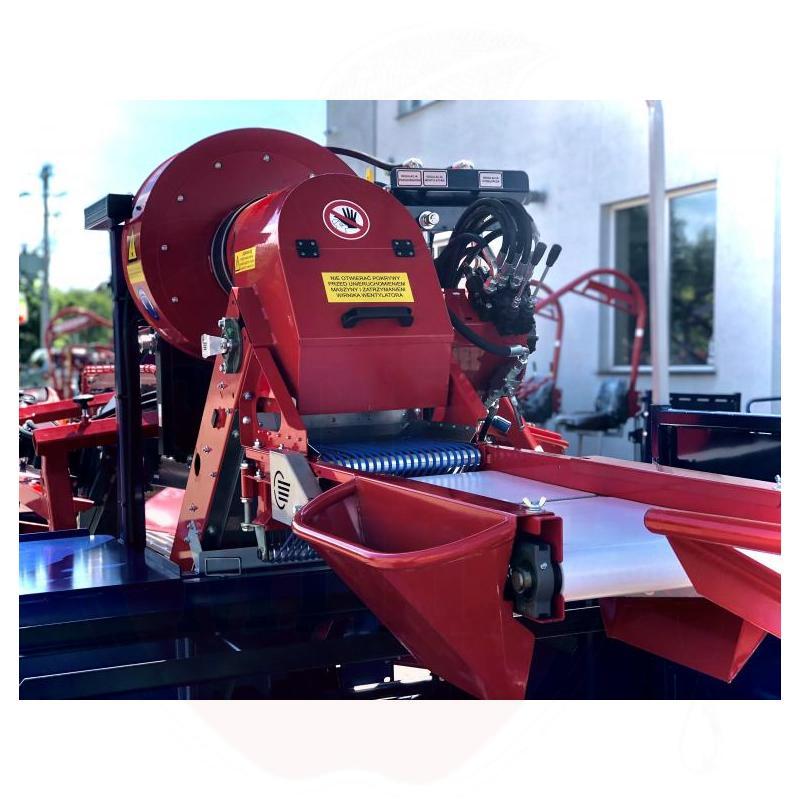

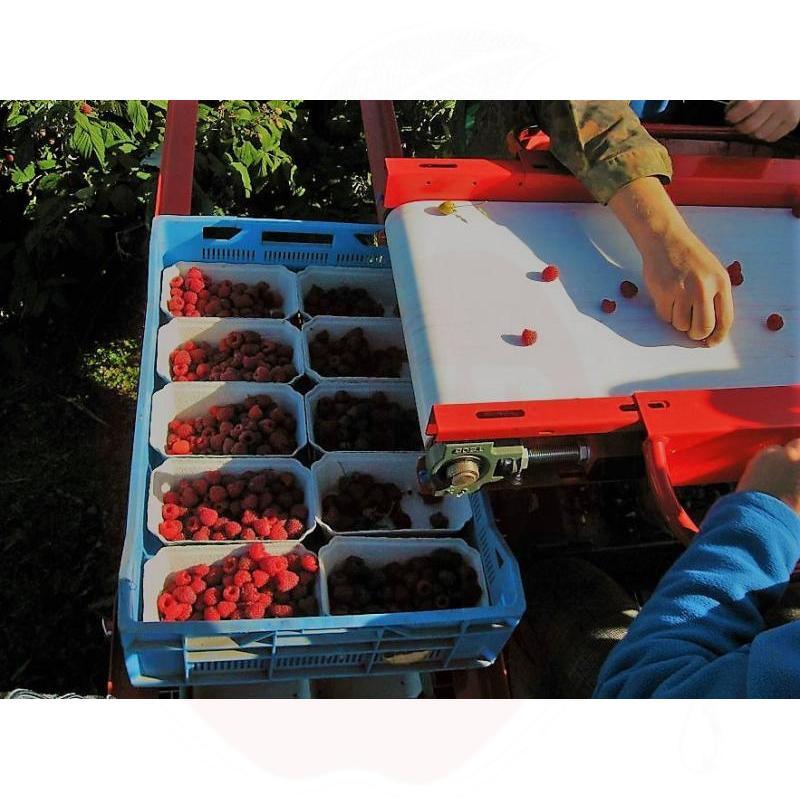

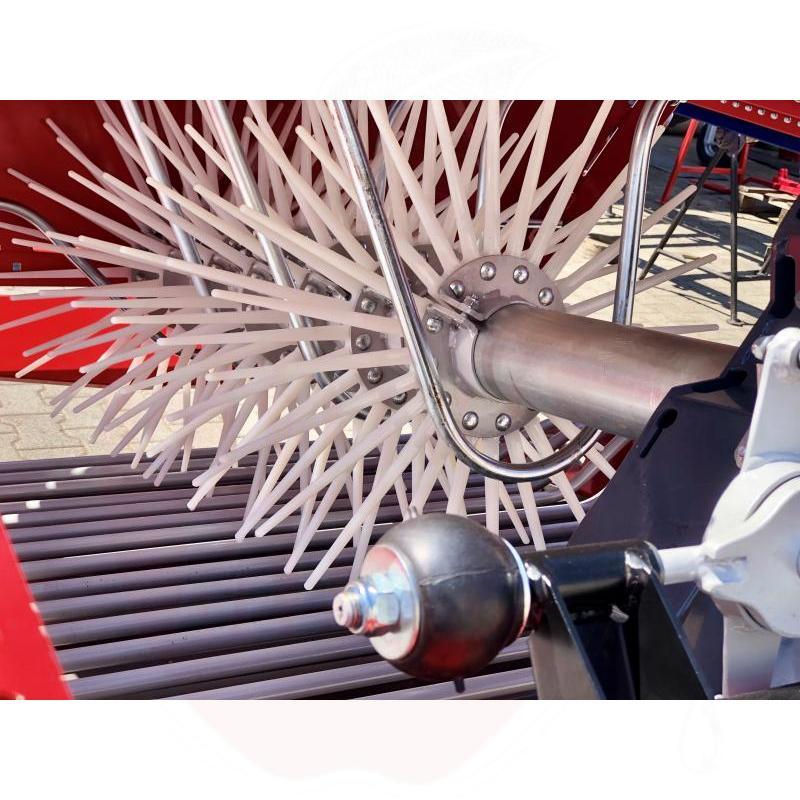

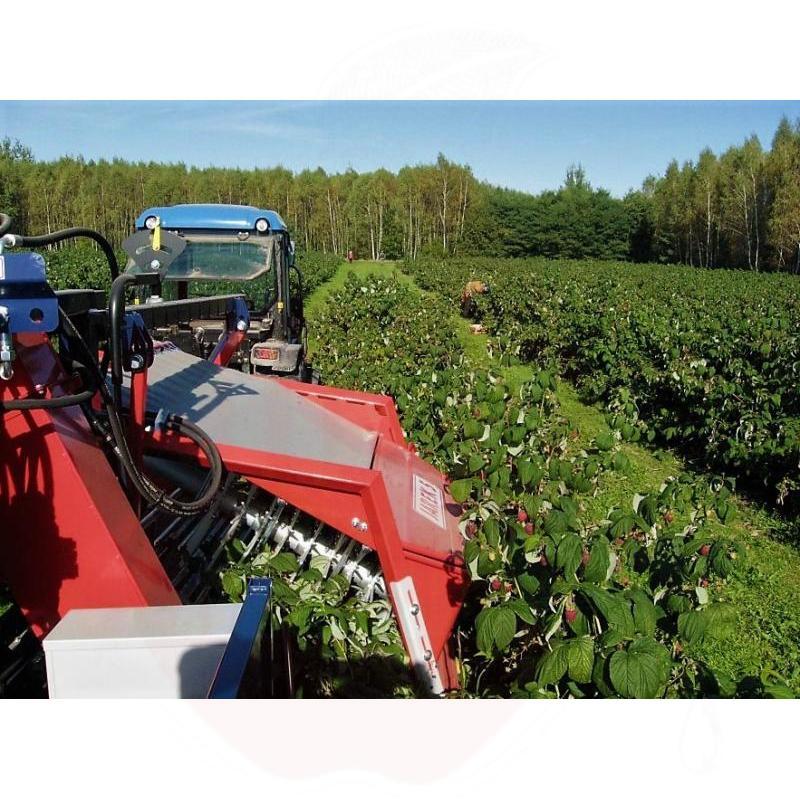

The harvester is equipped with a special shaker 920, designed for gentle handling of soft berries. Plastic shaking elements ensure minimal fruit damage. The pre-separator removes small debris, and the inspection conveyor facilitates the removal of dirt and damaged fruits.
Main Features
- 98% harvesting accuracy
- Damaged fruit ratio below 1%
- Hydraulic steering axle for optimal maneuvering
- Protective roof

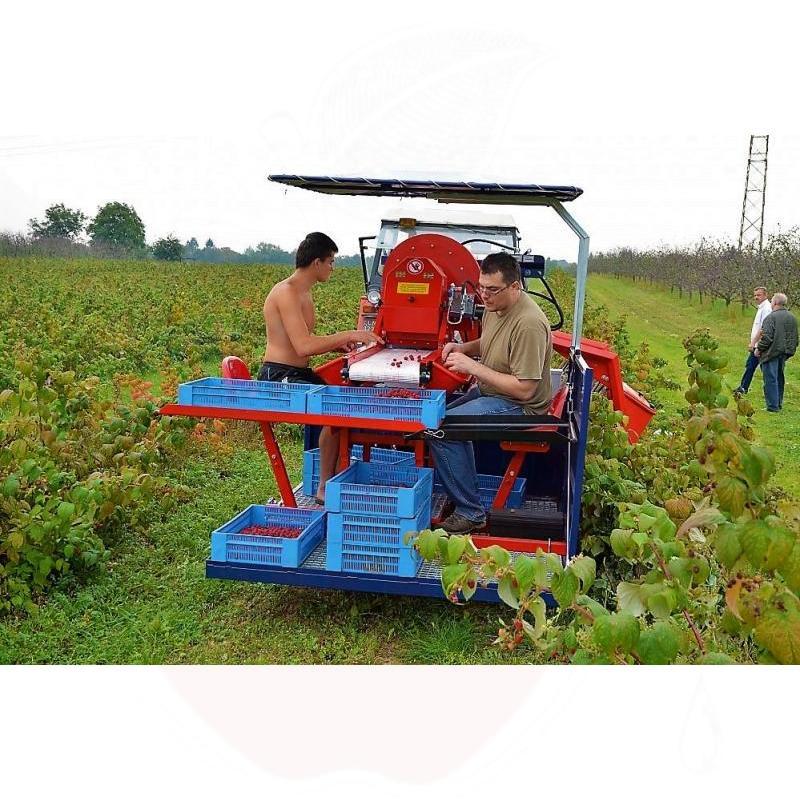

- Adjustable platform for fruit collection (10 kg boxes or 500 kg pallets)
- 7 plastic/metal shaking elements
Technical Specifications
- Harvesting speed: 0.6-1.5 km/h (0.1-0.2 ha/h)
- Transport speed: 20 km/h
- Minimum tractor power: 30 HP / 300 rpm

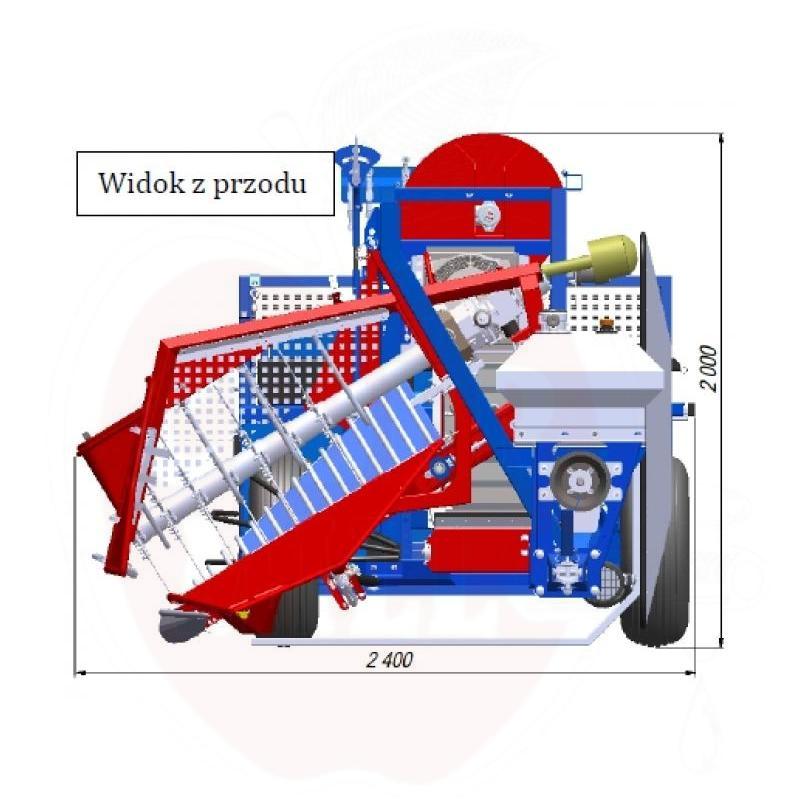

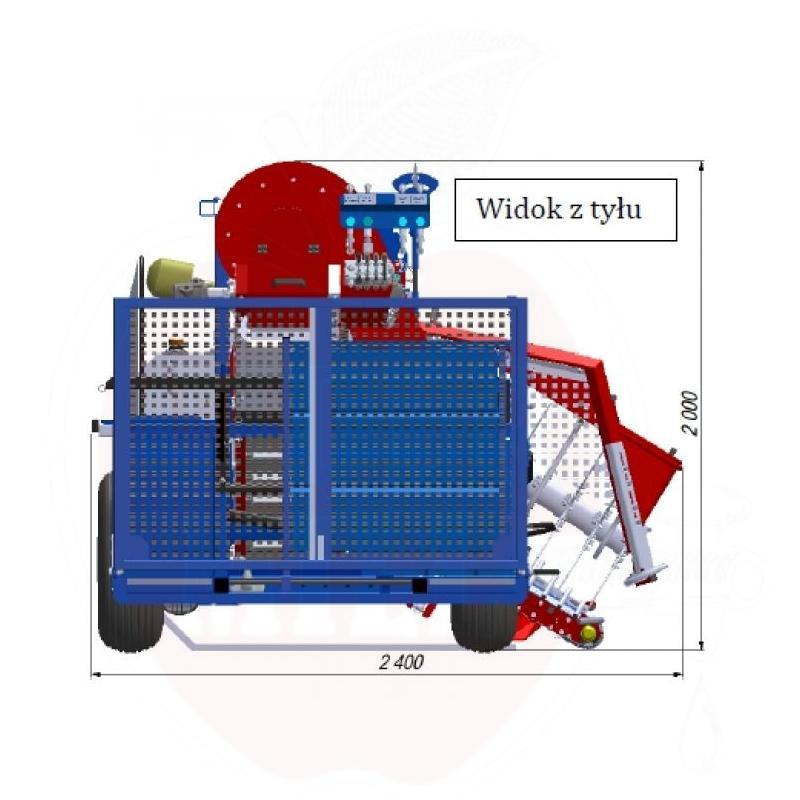

- Dimensions: 2.5 x 6.1 x 2.6 m
- Weight: 1950 kg
Optional Equipment
- Hydraulic leveling wheels (for slopes 3°-12°)
- Oil cooler for continuous operation
- Radio control panel (up to 80 m)
- Gooseberry covers
- Work light and road lights
- Various shaking heads (ARONIC, 920, BOS)
Cider Mill OÜ is the official representative of JAGODA products in Estonia. Transport from manufacturer's warehouse available for additional fee.
Keywords: berry harvester, picking machine, jarek 5, black currant harvesting, berry picking equipment, aronia harvester, half-row harvester, berry crop harvesting
Weight (kg) | 1850.000000 |
High (m) | 2.5 |
Width (m) | 2.4 |
Length (m) | 6.1 |
The hydraulic fork lift for tractor is designed for loading and unloading goods placed on pallets, in containers and boxes, and for transporting them over short distances. The loader is a device mounted on the three-point linkage system (TUZ), designed for 0.6-0.9T class tractors with external hydraulic output (single-acting cylinder). Maximum lifting height is 2.4 m and the maximum lifting capacity is 700 kg.
The hydraulic fork lift consists of two main components: the lifting mechanism and loader frame, and the cross bar of the tractor's three-point linkage system. The lifting mechanism consists of outer guide, inner guide, fork plate, lifting forks, piston cylinder, and lifting cable. The frame consists of steel frame construction, supports (left and right), and double-acting piston cylinder. Components required for hydraulic system installation are supplied separately.
The product is delivered directly from manufacturer's warehouse and transport cost is calculated in the shopping cart.
The device is easy to use - it attaches to the tractor's three-point linkage system and connects to the tractor's hydraulic system. The loader enables lifting and transporting heavy cargo boxes or pallets, moving them to the required location. The lateral hydraulic shift device allows the forks to move sideways, enabling more precise positioning when handling cargo.
Technical parameters: Model: PHW-240/T Machine type: Mounted on tractor TUZ Weight: 310 kg Lifting capacity: 700 kg Lifting height: 240 cm Fork spacing: 26-90 cm (adjustable)
Overall dimensions: Length: 45 cm Width: 96 cm Height: 176 cm
