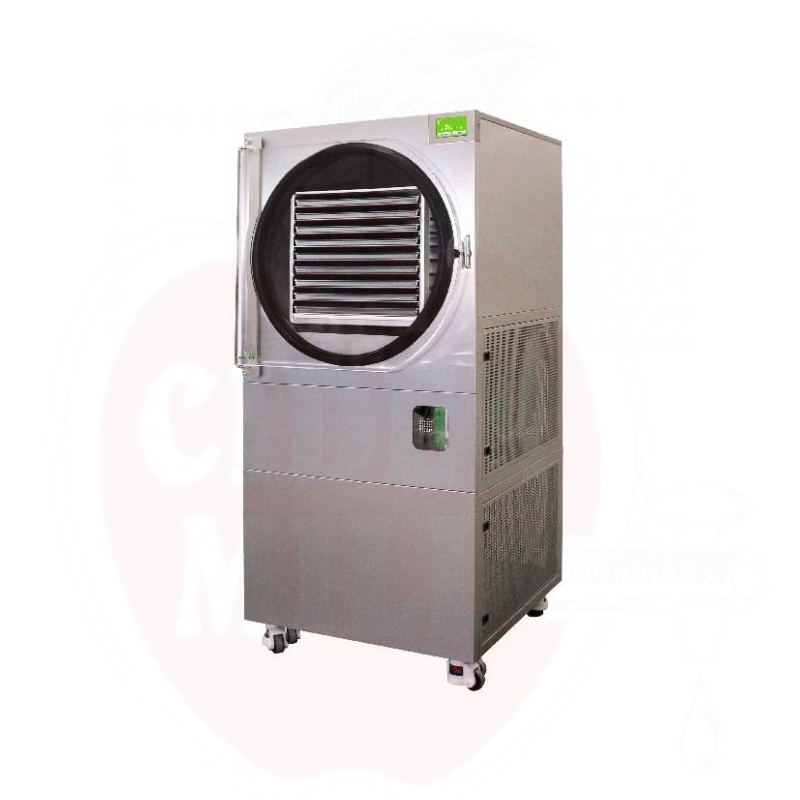

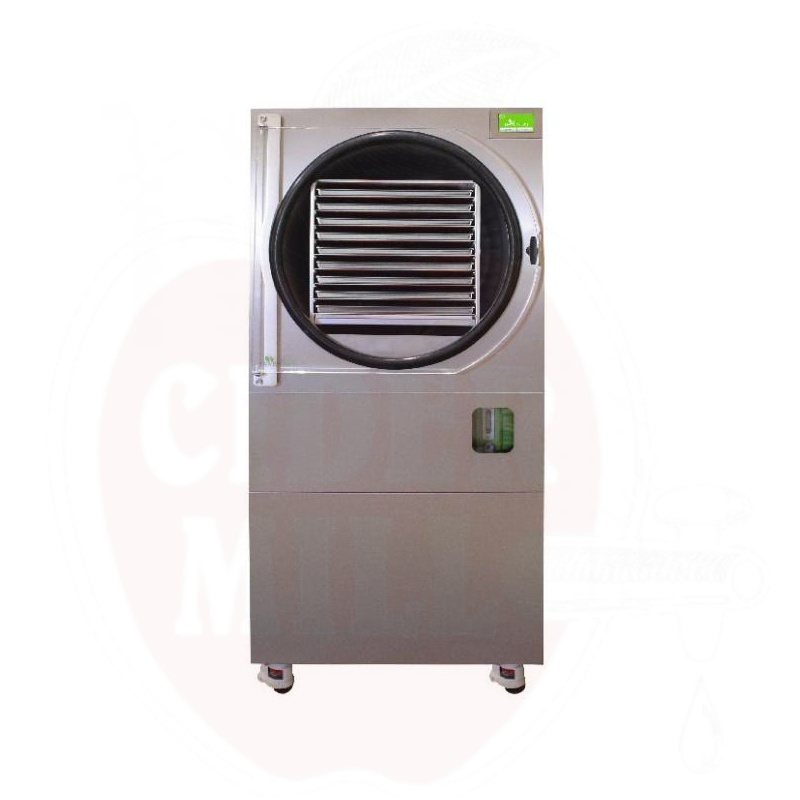

Freeze Dryer Harvest Right HRC100 27m2/29-40kg

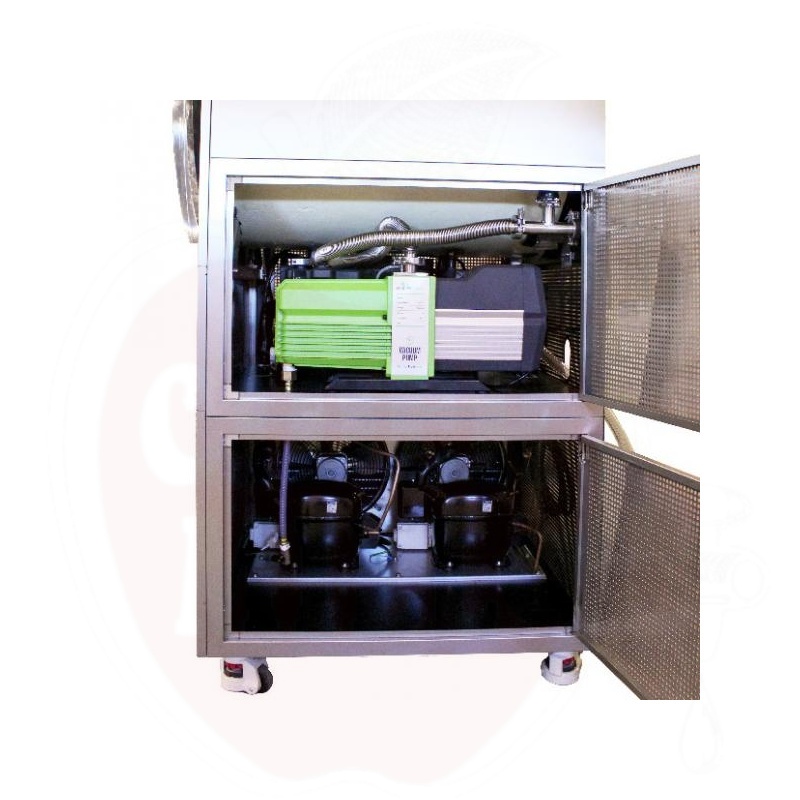

Harvest Right Scientific Freeze Dryer - Professional Laboratory Lyophilizer. The Harvest Right lyophilizer is a perfect solution for laboratories and scientific institutions, enabling precisely controlled freeze-drying processes. The unit can accommodate up to 12-15 kg of raw material on five trays. Smart Control Features: 4.3-inch full-color touchscreen, Customizable recipes (10 thermal treatments, 12 drying phases), Adjustable freezing rate and temperature, Automatic sublimation rate control, Real-time pressure and temperature monitoring. Technical Capabilities: 6-liter ice condensing capacity, Cooling temperature down to -43ºC, Five different shelf temperature settings, Ethernet connection for data transfer, 7 CFM oil-free scroll vacuum pump. Device Specifications: Dimensions: 52 x 65 x 58 cm (height x depth x width), Cooling compressor: 372W, Vacuum compressor: 560W, Power supply: 220V, 10A, Housing: stainless steel or powder-coated aluminum. Warranty: The device comes with a one-year manufacturer warranty. The vacuum pump has a 6-month warranty.

Professional Freeze Dryer for Small Quantities. Fully automatic freeze dryer for processing smaller quantities, especially suitable for seeds and plant parts. Drying capacity up to 7kg of material at once. Technical Specifications: Drying surface: 0.95m², 8 trays (dimensions 22.8x52x1.9cm), Device dimensions: 604x514x781cm, Weight: 115kg, Power supply: 220V (special 10A circuit). Smart Features: Automatic freeze-drying process control, Precise vacuum pressure and temperature control, Raw material quality preservation. Vacuum Pump Specifications: Capacity: 12.23m³/h, Cooling compressor: 372W, Vacuum compressor: 560W, 1725 rpm, Noise level: 64dB, Inlet: 3/4 JIC, 680cm³. Additional Equipment Options: Premier vacuum pump (52dB, oil change after 20-25 uses): +895€, Maintenance-free vacuum pump: +1990€. Warranty and Maintenance: The device comes with a 1-year manufacturer warranty (6 months for vacuum pump). Regular maintenance includes oil changes every 4-5 uses and pump cleaning every 20-30 uses. Delivery Information: The device is delivered complete in one package (74x96x121cm). Delivery is made to physical addresses.

Harvest Right Laboratory Freeze Dryer - Professional Lyophilizer The advanced Harvest Right lyophilizer is designed for precise laboratory work, offering high-level control over freeze-drying processes. The unit can accommodate 13-24 liters of raw material on six trays. Smart Control Features: 4.3-inch full-color touchscreen, customizable recipes (10 thermal treatments, 12 drying stages), adjustable freezing rate and temperature, automatic sublimation rate control, real-time pressure and temperature monitoring. Technical Specifications: cooling temperature down to -43ºC, 13-liter ice condensation capacity, 7 CFM oil-free scroll vacuum pump, power supply: 220V, 10A, stainless steel construction. Dimensions and Construction: Dimensions: 82.55 x 64.8 x 57 cm (height x depth x width), body: stainless steel or powder-coated aluminum, six drying trays for professional use. Warranty and Support: The unit comes with a one-year manufacturer warranty (6 months for vacuum pump). Data exchange possible with computer via Ethernet connection.

Excellent for research and development
Food capacity up to 4.1 kg
Customizable settings
Dimensions: 44.2 cm W x 54.6 cm D x 68.1 cm H
Food capacity: 2.7-4.1 kg
Power: 110v
4 trays
Tray dimensions: 19.7 cm W x 35.6 cm L x 1.9 cm H
Weight: 44.5 kg
Material: Stainless Steel
Full-color touchscreen display
Fits easily on countertop or cart
Stainless steel chamber and ice collection coils
Stainless steel purge valve for dry air or inert gas purge

Usage principle:
The device is designed for freeze-drying food for laboratory or industrial purposes. The freeze-drying process removes moisture from food while preserving its nutritional value, structure, and taste.

Keywords: freeze dryer, lyophilizer, food dehydrator, laboratory dryer, industrial dryer, vacuum dryer, sublimation dryer

Excellent choice for food freeze-drying

Large-capacity industrial freeze dryer

Customizable settings according to needs

Product dimensions:
Width: 54.1 cm
Depth: 69.9 cm
Height: 79.5 cm

Product weight: 68.1 kg

Food capacity: 8.2-10.4 kg

Material: Stainless Steel

6 trays

Tray dimensions:
Width: 22.9 cm
Length: 52.1 cm
Height: 1.9 cm

Voltage: 110V
AMPS: AC20

Full-color touchscreen display

Pump: Premier Pump or Oil-Free
Pump weight: 14.5 kg

Fits easily on a cart or countertop

Operating principle: The freeze dryer freezes food at very low temperatures and then removes moisture through vacuum, preserving the food's nutritional value, taste, and texture. Ideal for long-term preservation of fruits, vegetables, meat, fish, and prepared meals.

Keywords: freeze dryer, food dehydrator, industrial freeze dryer, lyophilizer, vacuum dryer, food preservation, food processing, commercial dryer

VEVOR 4-Tray Freeze Dryer for Vegetables, White Large Capacity: The freeze dryer has a capacity of 4-6 kg and a 4-tier design, enabling processing of large quantities of food for long-term preservation. It's suitable for freeze-drying meat, seafood, vegetables, and fruits. The vacuum freeze-drying technology preserves the nutrients, flavor, and texture of foods. Efficient Freeze Drying: Thanks to its powerful compressor, the freeze dryer cools quickly. The -35°C cooling chamber temperature ensures effective water removal during the freeze-drying process. Combined with a powerful vacuum pump, it maintains optimal vacuum conditions and prevents compatibility issues with the vacuum pump. Smart Control: The freeze dryer is equipped with a user-friendly touch control system, making operation simple yet powerful. It offers programmable temperature control, freeze-drying curves, and process monitoring, ensuring accurate and customized freeze-drying results for various applications. Quiet and Energy-Efficient: The vacuum freeze dryer has stable performance and operates at a low noise level, maximum 60 dB, ensuring a quiet environment. The compact and space-saving solution offers convenient use without limitations. Energy-efficient design helps reduce overall operating costs. Visualized Freeze-Drying Process: Through the highly transparent acrylic door, you can monitor the entire freeze-drying process precisely. The 304 stainless steel trays are durable and reliable, providing peace of mind. The design includes wheels for easier movement. The freeze dryer operates based on the sublimation process, where food is first frozen, then moisture is removed through vacuum, converting water directly from solid to vapor state. This preserves the food's structure and nutrients, ensuring long shelf life without adding preservatives.

Washable Teflon Drying Sheet for Drying Berries and Fruits High-quality German-made Teflon drying sheet is specially designed for dehydrating smaller berries, fruits, and liquid mixtures. This durable sheet is placed on top of the drying rack, ensuring ideal air circulation throughout the entire drying process. Technical specifications of the Teflon sheet: Thickness: 0.115mm (235g/m²) Temperature resistance: -73°C to +260°C Country of origin: Germany Main advantages: Ensures uniform drying results Prevents food from falling through the rack Reusable and easy to clean Suitable for all drying racks We recommend purchasing Teflon sheets according to the number of your drying racks to ensure maximum drying efficiency. Thanks to the high quality of materials, the sheet is suitable for long-term use.

Reusable Teflon Drying Sheet for Food Dehydrator High-quality German-made Teflon drying sheet is specifically designed for drying smaller berries and liquid mixtures in a food dehydrator. The sheet is placed on the dehydrator tray, ensuring efficient air circulation and preventing food from falling through. Technical Specifications: Thickness: 0.115 mm (235g/m²) Temperature resistance: -73°C to +260°C Country of origin: Germany Main Benefits: Ideal for drying berries and smaller food items Ensures optimal air circulation in the dehydrator Easy to clean and maintain Long-lasting durability with repeated use We recommend purchasing Teflon drying sheets according to the number of trays in your food dehydrator for maximum efficiency.

Two-Stage Vacuum Pump for Professional Use. Durable Construction: Made from high-quality aluminum alloy ensuring efficient heat dissipation. Copper motor ensures stable operation, and composite rubber base extends the device's lifespan. Advanced Oil System: Special design prevents oil backflow and chamber contamination. Oil addition is convenient thanks to front and side-accessible filling port. Oil sight glass allows monitoring of oil level and quality. Smart Cooling System: Built-in thermal protection and cooling system protect the pump from overheating, ensuring longer service life. Technical Specifications: Vacuum: 3x10-1Pa (25 microns), Rotation speed: 2000 rpm, Oil capacity: 600 ml, Air displacement: 254 L/M (10 CFM), Power: 0.74kW, Power supply: 220V/50-60Hz. Applications: Ideal for air conditioning maintenance, auto repair, vacuum packaging, and industrial use. Compatible with refrigerants R12, R134a, R22, R410a, R404, R502. Ergonomic handle makes device transportation comfortable. Note: Oil must be purchased separately.

Harvest Right Freeze Dryer - Professional Food Preservation Solution Smart Core Features Intelligent freeze-drying system automates the entire drying process. The device maintains consistent optimal vacuum pressure and drying temperature, ensuring maximum food freshness preservation. Technical Specifications Drying area: 1.45m² (7 stainless steel trays) Simultaneous drying capacity: 18-22kg Dimensions: 604x900x900cm Weight: 117kg Power supply: 220V (EU plug) Energy consumption: 1.6kW/h Required: 10A circuit Package Includes Freeze dryer main unit Vacuum pump with oil filter 7 stainless steel trays (27.6x75x1.9cm) 50 Mylar bags 50 oxygen absorbers Impulse bag sealer User manual Warranty and Maintenance The device has a 1-year warranty (6 months for vacuum pump). Maintenance includes vacuum pump oil filtering and replacement every 4-5 uses and thorough pump cleaning every 20-30 cycles. Delivery The freeze dryer is delivered complete in one package (dimensions: 90x90x150cm). Delivery is available to physical addresses across Estonia. Official importer in Estonia: Cider Mill OÜ

Vacuum Pump Premier Harvest Right 220V 60Hz Industrial design, intended for use with small, medium, and large freeze dryers. Technical specifications: Oil: Only Robinair Premium high vacuum pump oil or JB Industries Black Gold vacuum pump oil Motor: Energy-efficient DC motor Voltage: Standard, 220V, 60Hz Dimensions: 41.4 cm x 15.2 cm x 30.7 cm Weight: 14.5 kg Noise level: 52 decibels Product overview: This pump is only compatible with small, medium, and large freeze dryers. It's a professional device designed for long-term use, providing efficient vacuum creation for freeze-drying processes. Comparison with standard oil pump: Oil change: With the new Premier pump, oil changes or filtering are rarely needed. The pump has a gas ballast function that prevents water from remaining in the oil. Therefore, the oil stays clean and clear even after 30 or more uses. Oil change is only necessary after 20 or more uses. In comparison, a standard vacuum pump requires oil changes and filtering every 4-5 uses (when using a new 3/8-inch vacuum hose). This pump should only use Robinair Premium high vacuum pump oil or JB Industries Black Gold vacuum pump oil. These can be purchased from Harvest Right, Amazon, and other sources. Do not use Dairyland vacuum pump oil in the Premier pump. Vacuum pressure: In both cold and hot conditions, the Premier pump can create a deeper vacuum than the standard pump. In cold conditions, the difference is 0.05 Pascal for the Premier pump and 0.08 Pascal for the standard pump. However, in warm conditions, the difference is much greater: 0.05 Pascal for the Premier pump and 2.05 Pascal for the standard pump. Thus, the Premier pump is barely affected by warm environmental conditions. When temperature rises, it creates vacuum much better than the standard pump. External heat barely affects the Premier pump. It creates the same deep vacuum even in warmer environments. Noise level: The Premier pump is significantly quieter than the standard pump, 52 decibels compared to 64 decibels. An industrial pump at 52 decibels is about as quiet as a refrigerator. Oil mist filter: Both pumps are equipped with oil mist filters. However, the Premier pump's oil mist filter prevents oil from spraying completely and lasts much longer. Energy consumption: The Premier pump uses less energy than the standard pump (187 watts compared to 218 watts). Current draw: In hot conditions at final vacuum pressure, the standard pump draws 2.1 amps, while the Premier pump uses only 1.7 amps. Thus, the Premier pump is more efficient. Weight: The Premier pump is easier to move as it weighs 5 pounds less than the standard pump (14.5 kg compared to 16.8 kg). Lifespan: The Premier pump is more durable and lasts longer than the standard pump. Operating principle: The vacuum pump is an essential part of the freeze-drying process, removing moisture from the drying object. The pump creates a deep vacuum that enables ice sublimation (direct transition from solid to gas) at a lower temperature. This preserves food nutrients, texture, and taste, ensuring the highest quality end result.
