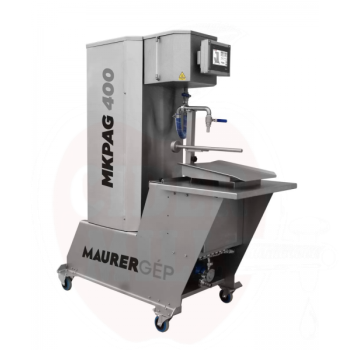

Pasteur MKPAG 400 without filler

Professional Food Pasteurizer: Automatic Solution for Liquid Heat Treatment The fully automatic pasteurizer is specifically designed for safe heat treatment of liquid foods and drinking water. The device meets all modern safety requirements and is made of high-quality AISI 304 stainless steel. Technical Specifications: Capacity: 700 l/h (heating from 20°C to 80°C), Power consumption: 800 W (230 V, 6 A), Heating power: 70 kW, Suitable fuels: propane, LPG or natural gas, Compact dimensions: 850 x 690 x 1700 mm, Weight: 350 kg. Smart Features: Automatic temperature control, Integrated bypass system, Double temperature control, IP65 certified electronics, DN 25 standard connections, 110 mm flue gas outlet. Additional Options and Accessories: Automatic buffer tank above pasteurizer, Semi-automatic Bag in Box filling system, 6-nozzle bottle filling module, Special sponge balls for cleaning. The pasteurizer is equipped with a gas or heating oil boiler and automatic boiler for heating water temperature control. The processed liquid temperature is regulated by a precise bypass valve. The device is easy to maintain thanks to the sponge ball cleaning system. The pasteurizer is perfectly compatible with various filling solutions and is ideal for food industry needs. Minimal maintenance requirements and automated operation ensure an efficient production process.

Juice Pasteurizer Technical Specifications Professional juice pasteurizer is made of high-quality AISI 304 stainless steel (Wnr. 1.4301) and is ideal for industrial juice production. Main Features Capacity: 1200 liters per hour (heating from 20°C to 80°C) Power consumption: 2100 W, 230 V, 6 A Heating power: 120 kW Supported fuel types: propane, LPG, natural gas Weight: 430 kg Dimensions Length: 1210 mm Width: 890 mm Height: 2070 mm Device Benefits IP65 certified electronics DN 25 connections Flue gas outlet: 110 mm diameter Automatic temperature control Built-in bypass system Easy maintenance and cleaning with sponge balls Minimal maintenance requirements Additional Equipment Automatic buffer tank mountable above the pasteurizer Fully automatic control Automatic stop function when juice level is low Compatible with both bottle fillers Semi-automatic Bag in Box filler MKBiB Top 180 6-nozzle bottle filling module Cleaning sponges

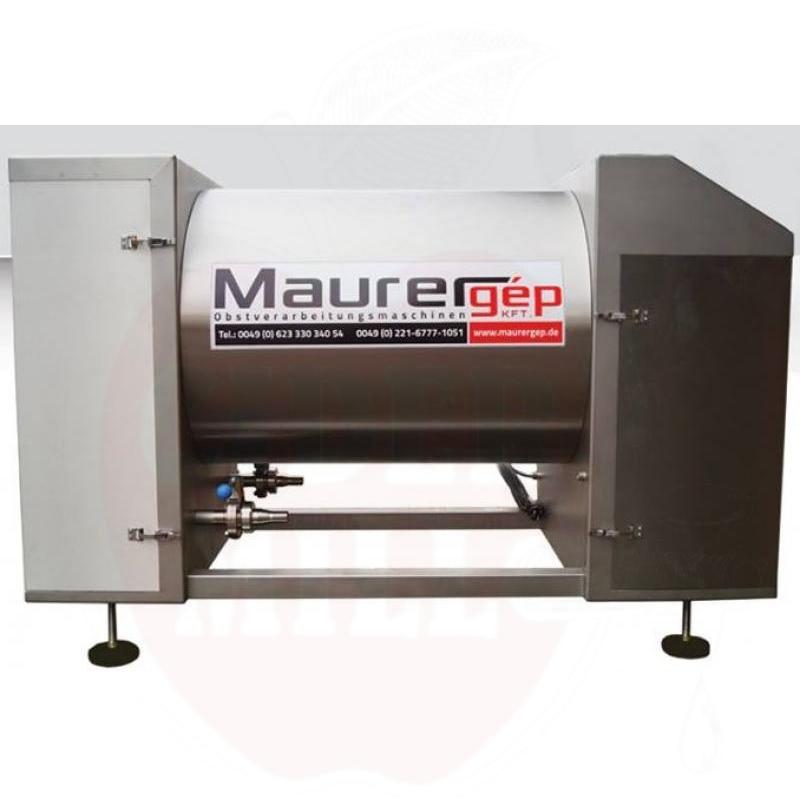

Industrial Juice Pasteurizer with Automatic Temperature Control 1000L/H Fully automatic hot steam pasteurizer ensures maximum juice quality and shelf life. The unit is equipped with an efficient heat exchanger and condensate drainage system. Main Features of the Pasteurizer: Processing capacity: 1000 liters per hour, Power capacity: 90kW (gas or oil heating), Power supply: 400V, Made of food-grade stainless steel. Technical Equipment: Precise pressure regulator, Water circulation system with circulation pump, Tube-in-tube type heat exchanger, Automatic safety system, Special juice pump, Water tank for constant steam pressure, Expansion tank for system stability. The unit is mounted on a sturdy stainless steel base frame ensuring stability and easy maintenance. Note: steam generator must be purchased separately. The pasteurizer is ideal for industrial juice production, ensuring high product quality and extended shelf life thanks to precise temperature control and efficient pasteurization process.

Pasteurizer EHA-45: Powerful Juice Processing Equipment for Professionals The EHA-45 pasteurizer is an efficient juice processing unit capable of processing up to 450 liters of juice per hour. The powerful 45kW heating element (400V/80A) ensures a quick and uniform pasteurization process at +80°C. Technical specifications: Compact dimensions: 750x500x1400mm Weight: 200kg Quick heating time: approximately 8 minutes Usage benefits: Juice temperature can be precisely regulated using a manually controlled valve, allowing flexible flow rate adjustment. The unit is equipped with a temperature display ensuring accurate processing. Installation and operation: For efficient operation, the pasteurizer requires an external pump for raw juice feed. The device is ideal for both small producers and larger juice industries, ensuring quality and safe juice processing.

Industrial Pasteurizer EHA-40 - Fully Automatic Juice Processing Equipment Advanced spiral heat exchanger pasteurizer ensures uniform and effective heat treatment of juice. The device design, where the juice pipe is located inside the hot water pipe, enables maximum heat transfer and energy-efficient processing. Technical Specifications: Production capacity: up to 400 liters per hour Processing temperature: +80°C Oil burner power: 48 kW Dimensions: 1000 x 1000 x 1200 mm Weight: 280 kg Main Functions: Fully automatic control center Integrated juice pump Thermostatic temperature control Stepped power regulation The pasteurizer automatically maintains hot water temperature 4-5 degrees higher than the outgoing juice temperature, ensuring optimal pasteurization process. The device power can be adjusted according to production needs by changing the number of active heating elements.

Industrial Juice Pasteurizer EHA-45E: For Precise Juice Processing The high-quality juice pasteurizer EHA-45E is equipped with a modern spiral heat exchanger and powerful hot water pump. The pasteurizer's unique design ensures uniform juice heating thanks to a double-layer pipe system, where the inner juice pipe is surrounded by a hot water pipe. Technical Specifications: Capacity: up to 450 liters per hour Processing temperature: +80°C Power: 45kW (400V) Dimensions: 750 x 850 x 1400 mm Weight: 230 kg Heating time: approximately 8 minutes Smart Solutions: Built-in juice pump Automatic temperature regulation Stepped power control Precise temperature control via thermostat The device's thermostat automatically maintains the hot water temperature 4-5 degrees higher than the outgoing juice temperature, ensuring optimal pasteurization process. The pasteurizer's power can be regulated as needed by activating the required number of heating elements.

Professional Fruit and Berry Juice Pasteurizer 300L/h Fully automatic electric pasteurizer is ideal for heat treatment of various fruits, berries, and vegetables. The device is designed for processing apples, pears, berries (cloudberries, strawberries, blueberries, elderberries, currants), carrots, herbs, quince, beetroots, sea buckthorn, rowan berries, and onions. Main Features: Fully automatic flow-through type, Dual temperature control (heat exchanger and outlet), Automatic bypass system for temperature regulation, Easy cleaning with sponge balls, Minimal maintenance required. Technical Specifications: Capacity: 300 liters per hour (20°C to 80°C), Power: 28 kW, 400 V, 32 A (three-phase), Stainless steel: WNr. 1.4301, AISI 304, IP65 certified electronics, DN 25 connections, 2 thermometers. Dimensions and Weight: Length: 1539 mm, Width: 642 mm, Height: 1850 mm, Weight: 230 kg. Optional Accessories: BiB filling modules, Bottle filling modules, Manual BiB filler with digital scale, Dual-head bottle filling module, Cleaning sponges.

Efficient EHA Series Pasteurizers for Juice Industry. High-quality pasteurizers with spiral heat exchangers ensure uniform juice heating. The equipment is equipped with a hot water circulation pump, and innovative counter-flow liquid movement optimizes heat transfer. Main Features of the Pasteurizer: Stepwise adjustable power, precise temperature control via thermostat, hot water temperature adjustable 4-5°C higher than outgoing juice temperature. Model Selection: Basic models EHA18, EHA27, EHA45: Manually adjustable juice temperature, requires external juice feed pump. E-series models EHA18E, EHA27E, EHA45E: Built-in juice pump, automatic temperature control. EHA-18 Technical Specifications: Capacity: up to 200 l/h, Power: 18 kW (2x9 kW), Electrical connection: 400V/32A, Heating time: 15 minutes, Dimensions: 750x500x1150 mm, Weight: 150 kg.

EHA Series Juice Pasteurizers - For Precise Juice Processing Our pasteurizers use efficient spiral heat exchanger technology with a hot water circulation pump. Juice processing takes place in an innovative double piping system where the inner juice pipe is surrounded by hot water, ensuring optimal heat transfer. Technical Features: Stepwise adjustable power, automatic temperature control with thermostat, hot water temperature adjustable 4-5°C higher than juice temperature. Model Range: Standard models: EHA18, EHA27, EHA45 - with manually adjustable flow rate. E-series models: EHA18E, EHA27E, EHA45E - equipped with juice pump and automatic temperature regulator. EHA-27 Technical Specifications: Productivity: up to 300 l/h at +80°C, power: 27 kW (3x9 kW), electrical connection: 400V/63A, heating time: approximately 10 minutes, dimensions: 750 x 500 x 1400 mm, weight: 150 kg.

Pasteurizer EHA-45: Powerful Juice Processing Equipment for Professionals The EHA-45 pasteurizer is an efficient juice processing unit capable of processing up to 450 liters of juice per hour. The powerful 45kW heating element (400V/80A) ensures a quick and uniform pasteurization process at +80°C. Technical specifications: Compact dimensions: 750x500x1400mm Weight: 200kg Quick heating time: approximately 8 minutes Usage benefits: Juice temperature can be precisely regulated using a manually controlled valve, allowing flexible flow rate adjustment. The unit is equipped with a temperature display ensuring accurate processing. Installation and operation: For efficient operation, the pasteurizer requires an external pump for raw juice feed. The device is ideal for both small producers and larger juice industries, ensuring quality and safe juice processing.

50L Professional Juice Pasteurizer in Stainless Steel This industrial pasteurizer is specifically designed for efficient processing of larger quantities of juices. The device ensures safe and high-quality pasteurization of juices while maximally preserving vitamins and nutrients. Key Features of the Pasteurizer: Capacity: 50-liter stainless steel pot, Integrated heat exchanger spiral for uniform juice processing, Precise output thermometer (temperature range up to 120°C), Adjustable juice outflow system, Removable DIN-standard compliant connections. Operating Principle: The pasteurization process occurs through the heat exchanger spiral, where heated water uniformly warms the flowing juice. To ensure the quality of pasteurized juice, immediate cooling after bottling is recommended. Applications: Ideal for small producers and juice industries who value: Preservation of natural juice flavor, Maximum retention of nutrients, Efficient production process, High hygiene standards.
