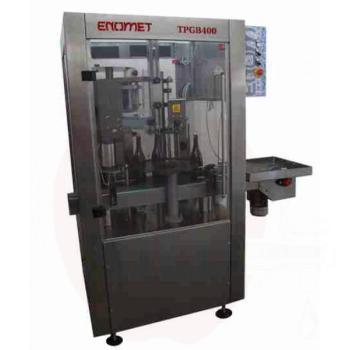

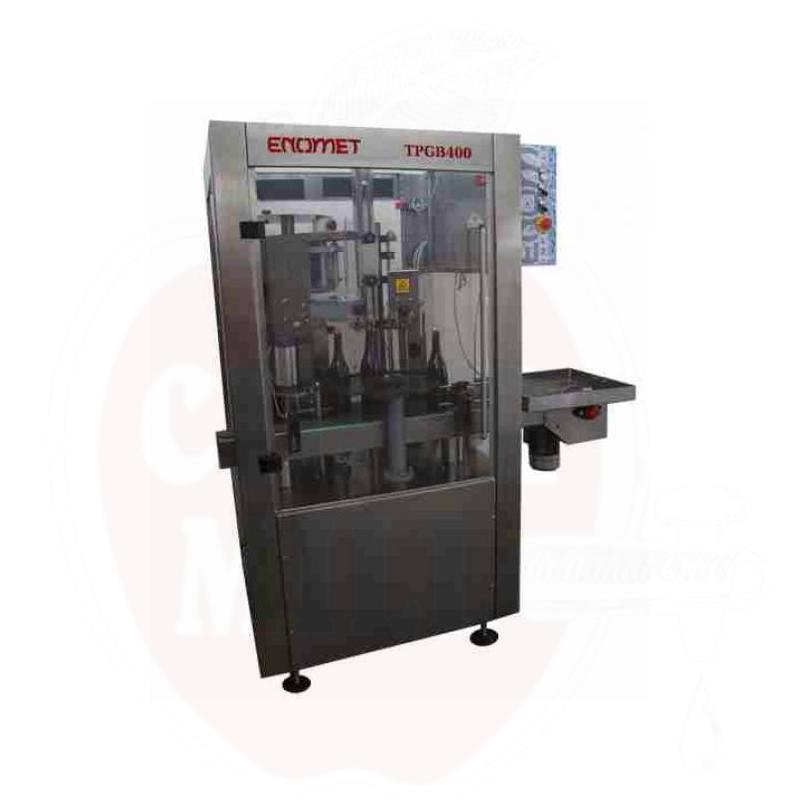

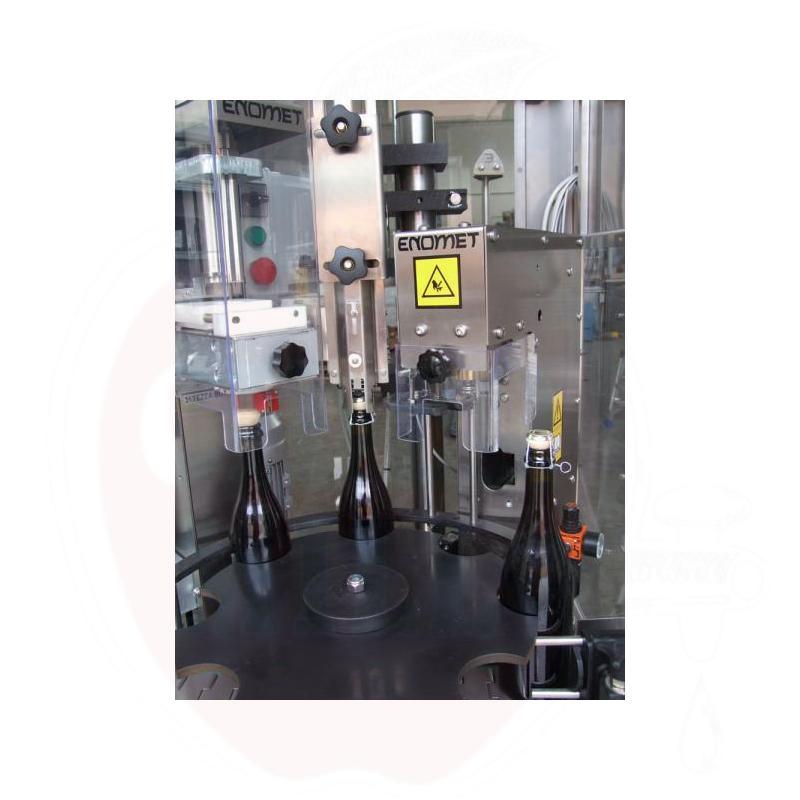

Monoblock TPGB filling-corking-Wireing 450pdl/H

Automatic 8-head filling machine for carbonated beverages Perfect solution for small and medium-sized soft drink manufacturers - a compact monoblock filling machine. The device is equipped with 8 precise filling nozzles on a rotating base, ensuring uniform and rapid filling process. Main features: Automatic filling system for lightly carbonated drinks 8 filling nozzles ensure optimal production speed Integrated automatic capping system for DN26mm caps Vibrating cap feeding system for smooth operation Bottle transport line with collection system Technical information: Compact monoblock construction Rotating filling base ensures uniform filling Suitable for filling various soft drinks Easy to clean and maintain The machine is an ideal choice for manufacturers who need a reliable and efficient filling solution. Thanks to its compact design, it's also suitable for facilities with limited production space.

Stainless Steel Automatic Filling and Capping Machine High-quality Italian-made compact monoblock ensures precise and efficient filling process. The machine is manufactured from food-grade stainless steel meeting food industry standards. Technical Specifications: Standard bottle size: 75mm diameter (75cl), Adjustable bottle height: up to 375mm, Cap dimensions: diameter 22-28mm, height up to 50mm, Production capacity: up to 800 bottles per hour (75cl). Applications: Juice filling and capping, Oil filling and capping, Suitable for filling various liquids. Additional Equipment: Conveyor belts for production line automation, Vacuum system for accelerating filling process. The machine's flexible adjustability allows processing bottles of different sizes, ensuring maximum production efficiency and high-quality end results.

Stainless Steel Bottle Filling and Capping Machine High-quality Italian-made compact monoblock ensures precise and efficient filling process. The device is made of durable stainless steel, ensuring long service life and hygienic working environment. Technical specifications: Productivity: up to 500 bottles per hour with standard equipment Adjustable bottle height: up to 375mm Adaptable to different bottle diameters Suitable for both beverages and oil filling Optional equipment: Automatic conveyor belts for smooth production Vacuum system to increase productivity (up to 800 bottles per hour) This versatile filling and capping machine is ideal for small and medium-sized production companies, offering a flexible and reliable solution for automating the filling process.

Semi-Automatic Monobloc Filling and Capping Machine Perfect solution for filling and packaging liquid and semi-liquid products. The device is suitable for precisely dosed filling into jars and bottles with volumes from 5ml to 1500ml. Main Features: Production capacity: up to 400 jars per hour (for 350ml packages). Suitable for hot filling at temperatures up to 95°C. Operates with compressed air (2-6 bar). Capable of processing viscous products containing fibers. Filling Volumes: 5-250 ml, 5-380 ml, 20-680 ml, 50-1500 ml. Technical Details: Main frame: AISI 304 stainless steel. Product contact parts: AISI 316L stainless steel. Food industry compliant seals. Pneumatic capper with adjustable torque. Air consumption: ~250 Nl/min. Machine Components: Volumetric filling module made of AISI 316L steel. Three-way rotary valve. Pneumatic two-way shut-off valve. Food industry standard flexible hose. Height-adjustable construction.

Industrial heat treatment block made of AISI 304 stainless steel. Professional production equipment for mixing raw materials, precise dosing, and capping. Made of high-quality AISI 304 stainless steel, ensuring maximum hygiene and durability. Production Capacity: Processes up to 1500 units per hour, ideal for medium and large-scale production facilities. Technical Specifications: Control system: Siemens PLC. Pneumatics: Camozzi quality components. Electrical connection: 400V - 50Hz. Power consumption: 8 kW. Compressed air: 6 bar, 900 Nl/min. Physical Dimensions: Equipment dimensions: 3000 x 2500 mm. Equipment weight: 900 kg. The automatic processing block is equipped with a complete safety system and complies with all European food industry standards.

Automatic Jar Filling and Sealing Machine for Beverage Bottling Professional stainless steel filling equipment and capper that perfectly matches your beverage industry needs. Technical Capabilities Suitable for jars with diameter 63-66 mm Accommodates jars with heights from 33cl to 50cl Production capacity: up to 600 jars per hour Operating Conditions Optimal filling temperature: 0°C to +2°C Working room temperature range: +2°C to +40°C Carbonation level: 4.6 g/l Filling from isobaric tank with precise measurement control Technical Specifications Electric power: 0.5 kW Power supply: 220V/24V Required compressed air: 6 bar Stainless steel construction Mechanical jar sealing system

Automatic Can Filling and Sealing Machine for Beverages Technical Specifications: Can dimensions: diameter 63-66 mm, height 33cl-50cl. Production capacity: up to 1200 cans per hour. Electrical connection: 220V/24V. Compressed air: 6 bar. Operating temperature: +2°C to +40°C. Filling Process Features: Optimal beverage temperature: 0°C to +2°C. Carbonation level: 4.5-5.5 g/l. Isobaric precise pressure control. CO2 dosing before and after filling. Automatic weight control. Equipment Features: Stainless steel construction. Electronic control panel. Mechanical lid sealer. Remote control capability via internet. Includes round collection table. Equipment Dimensions: Length: 2500 mm. Height: 3010 mm. Width: 950 mm. Made in Italy.

Automatic Isobaric Filling Machine for Carbonated Beverages The fully automatic isobaric filling and capping machine is designed for filling carbonated beverages with pressure up to 5 bar. The machine's productivity ranges from 600-850 bottles per hour, depending on the beverage type and bottle format. Technical Specifications Power supply: 400V, power 3kW Compressed air consumption: 120l/min at 7 bar Connections: Tri-clamp standard Bottle Parameters Minimum diameter: 55mm Minimum height: 110mm Maximum diameter: 110mm Maximum height: 350mm Capping System The machine is equipped with an automatic crown cap vibrating hopper and feeding system. Compatible with 26mm or 29mm crown caps. The entire work process is conveniently controlled through a central control panel.

Cannular Fully Automatic Canning Line - Single Line for Brewers Cannular fully automatic single-line canning system is a modern solution for packaging beer and other carbonated beverages. This compact device is specifically designed for microbreweries producing 1000-5000 liter batches. Benefits of Canning Beer canning ensures: Better product shelf life due to low oxygen levels Complete hermetic sealing Complete light protection Environmentally friendly packaging Convenient outdoor use Technical Specifications Power supply: single-phase 230V Equipped with B64 cartridge (for 202 can bodies) Dimensions: standard pallet size Titanium-coated hardened cartridge (hardness 58-62 dH) Production capacity: up to 15 cans per minute Oxygen level: below 40 ppb Operating Principle and Usage The canning line operates fully automatically: empty cans move independently to the filling position, filling occurs, hermetic sealing is performed, and finished products are ejected. The system requires only one operator and ensures consistent quality throughout the production process. Maintenance and Cleaning The equipment is easy to clean thanks to hose-washable surfaces. Regular maintenance ensures long-term and trouble-free operation. Ideal for small and medium-sized breweries looking to automate their production and ensure high-quality packaging.

Semi-Automatic Filling Line for Carbonated Beverages - Washer, Filler, and Capper High-quality Italian manufactured semi-automatic filling set including container washing unit, 4-head isobaric filler, and crown cap applicator. The unit is adaptable with 2 or 6 filling heads and suitable for both crown caps and screw caps. Application and Technical Specifications Suitable for carbonated beverages: beer, cider, sparkling wine, carbonated water. Maximum filling pressure: 5 bar. Power consumption: 0.37kW/220V. Compressed air requirement: 120l/min/6bar, 24V. Machine dimensions: 1.92m x 0.8m x 0.40m. Maximum bottle dimensions: height 350mm, diameter 120mm. Machine Benefits and Additional Features Automatic filling process control. Pneumatic pump for liquid transfer. CO2 pre-insertion for foam-free filling. Transparent automatic safety door. Washing liquid recycling system. Automatic cap feeder with vibration system. Enhanced oxygen removal through water spraying. Included Accessories Integrated pressure washer. 1" connection valve seal kit. Adjustable filling level tubes. Cleaning dummies for valve maintenance. Non-return valve.

Isobaric Filling Machine - Professional Solution for Carbonated Beverage Filling High-quality Italian-made isobaric filling machine is equipped with two filling nozzles, ensuring efficient and quality filling process. The device operates under pressure (2-4 bar), preventing raw material contact with oxygen and maintaining the original taste and quality of the beverage. Technical Features and Capabilities Power source: 230V electricity or 6-bar air pressure. Special foam-reducing nozzles. Dimensions: height 2.145m, width 0.70m. Weight: 96kg. Mobility-enabling wheels (optional). Filling Capabilities The device is perfect for filling various carbonated beverages: Beer, Cider, Sparkling wine, Carbonated water. Bottle Parameters Maximum bottle height: 305mm. Maximum bottle diameter: 88mm.

Isobaric Four-Bottle Filling Device - Professional Solution for Beverage Filling Versatile filling device made of stainless steel AISI 304 and food-grade PP plastic, ideal for filling sparkling wines, soft drinks, and beer into both glass and PET bottles. Technical Specifications: Filling capacity: 300-500 bottles per hour (0.35-0.65l bottles) Optimal filling speed at 2.5 bar: approximately 200 bottles per hour Maximum working pressure: 5.5 bar Main Features: Stainless steel filling valves and triple valves Removable stainless steel drip tray with grid HDPE plastic adjustable height setting Food industry standard pipe fittings and hoses Adaptable for different bottle sizes Operating Instructions: The filling process occurs in two stages: CO2 filling: turning the valve to one side Liquid filling: turning the valve to the other side Completing the process: turning the valve to middle position Filling efficiency depends on beverage properties, pressure, bottle sizes, temperature, and user experience. The device is easy to maintain and clean thanks to removable parts.

6-Nozzle Isobaric Filling Machine - Professional Solution for Beverage Filling High-quality Italian isobaric filling machine that enables precise and efficient filling process. The device is specially designed for filling carbonated beverages, including beer, cider, sparkling wine, and carbonated water. Technical Specifications Maximum filling pressure: 5 bar Power consumption: 0.37 kW/220V Compressed air consumption: 120 l/min/6 bar Control voltage: 24V Dimensions: height 1.92 m, width 0.8 m, depth 0.40 m Bottle Parameters Maximum bottle height: 350 mm Maximum bottle diameter: 120 mm Available Accessories Automatic filling system Pneumatic pump system Container cleaning system (water and air or air only) Professional corking device 1" connection valve seal kit Adjustable filling pipes Cleaning process bottle dummies Back-flow valve The machine is equipped with foam-reducing nozzles, ensuring quality filling results. A professional filling solution ideal for small producers and medium-sized enterprises.

Automatic Filling Machine for Small Producers - for Precise and Efficient Filling A compact and efficient filling machine specifically designed for small producers who work with craft beer, soft drinks, cider, wine, or water bottling. The device is available in three different versions: 4-, 6-, or 8-head, allowing you to choose the solution that suits your production volume. Flexible Filling System for Different Bottles The filling machine works successfully with both glass and PET bottles with capacities from 200ml to 2 liters. Thanks to the preset calibration system, the device automatically ensures accurate volume filling in each bottle. Complete Filling Solution with Additional Equipment To enhance the filling line, we offer the following additional equipment: Carbonators for beverage carbonation, Automatic cap sealers, Efficient cooling systems, Precise labeling machines, Bottle rinsing and washing equipment, Pasteurization equipment.
