Hydraulic fork loader for tractor
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 20000000542368
Unit: pc
Stock qty: On special order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.

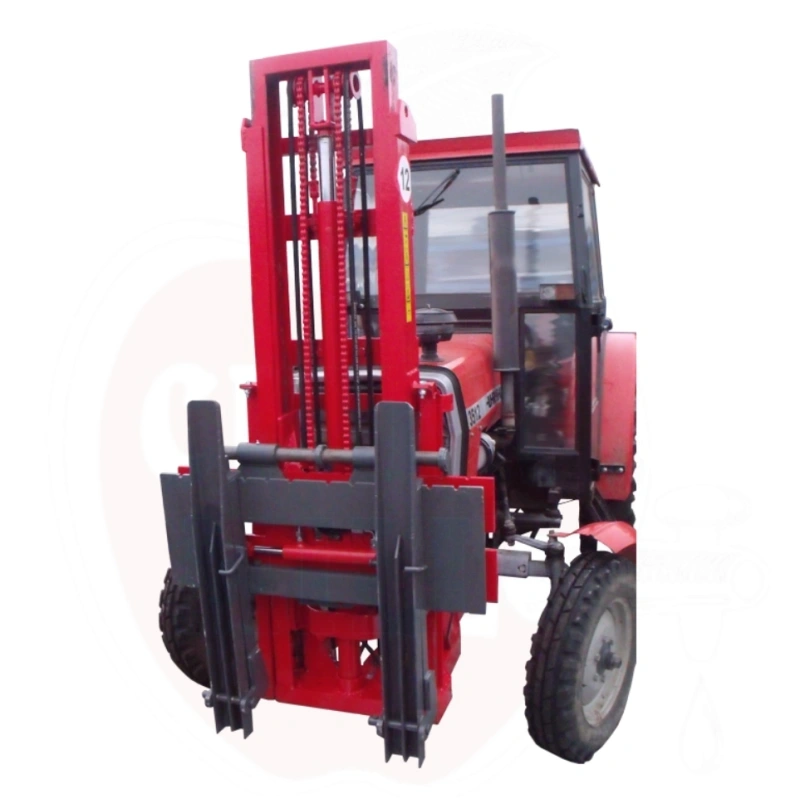

Hydraulic front fork loader for tractor

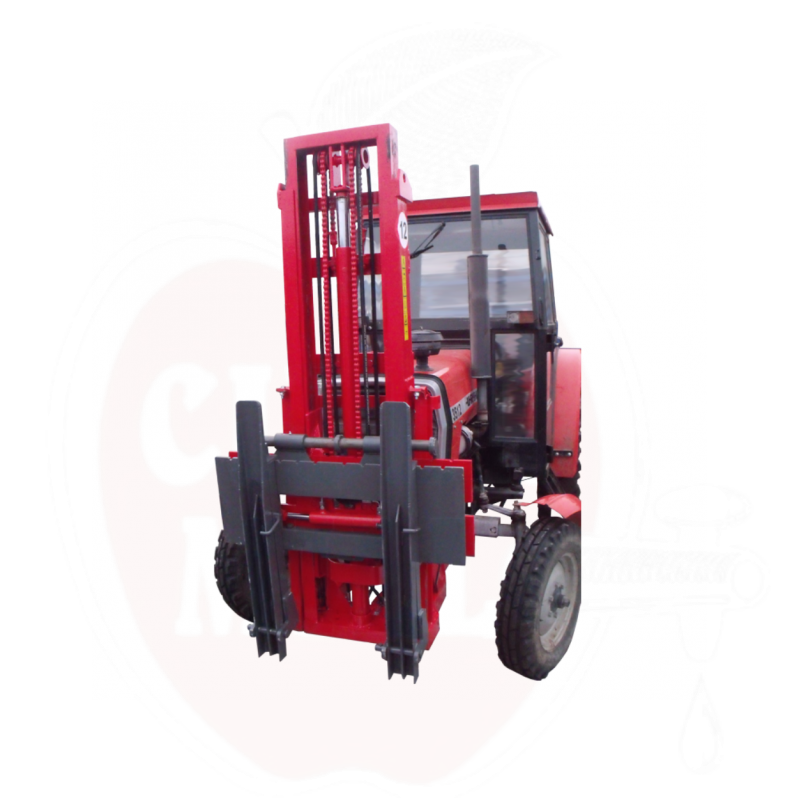

The hydraulic fork loader for tractor is designed for loading, unloading, and short-distance transportation of goods in packages, pallets, and containers. Transportation can also occur on unpaved surfaces. The loader is a three-point linkage (TPL) mounted device designed for 0.6-0.9T class tractors. It attaches to the tractor's front axle support with an external hydraulic system (single-acting cylinder). Maximum lifting height is 2.4 m and maximum lifting capacity is 700 kg.

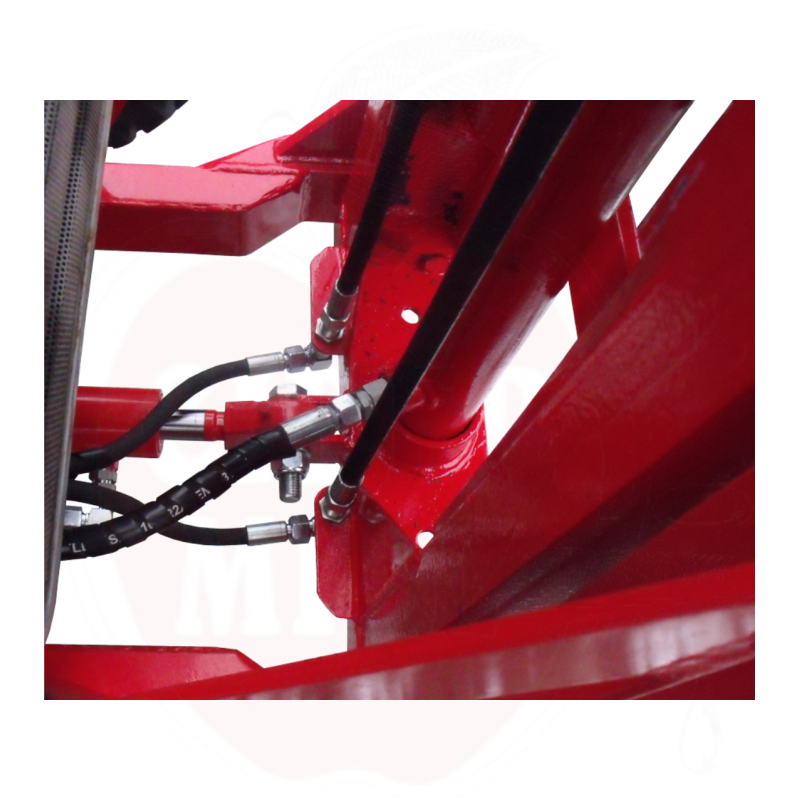

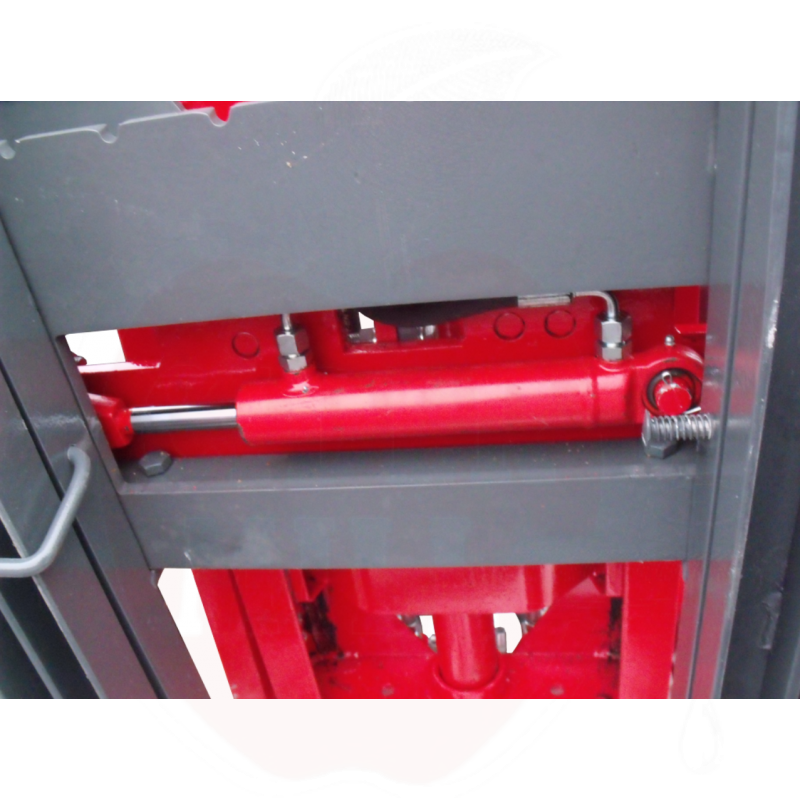

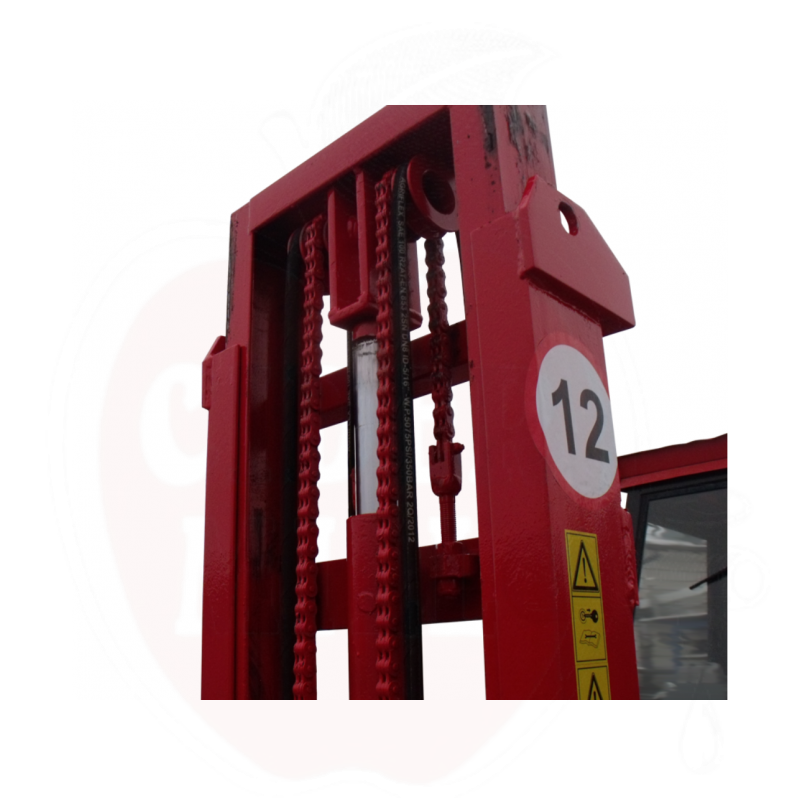

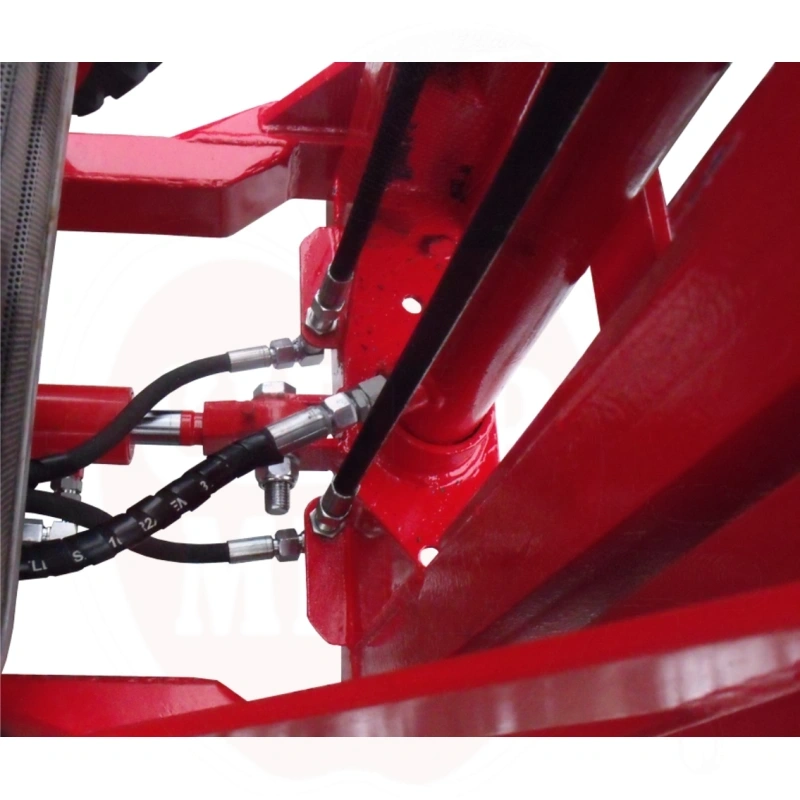

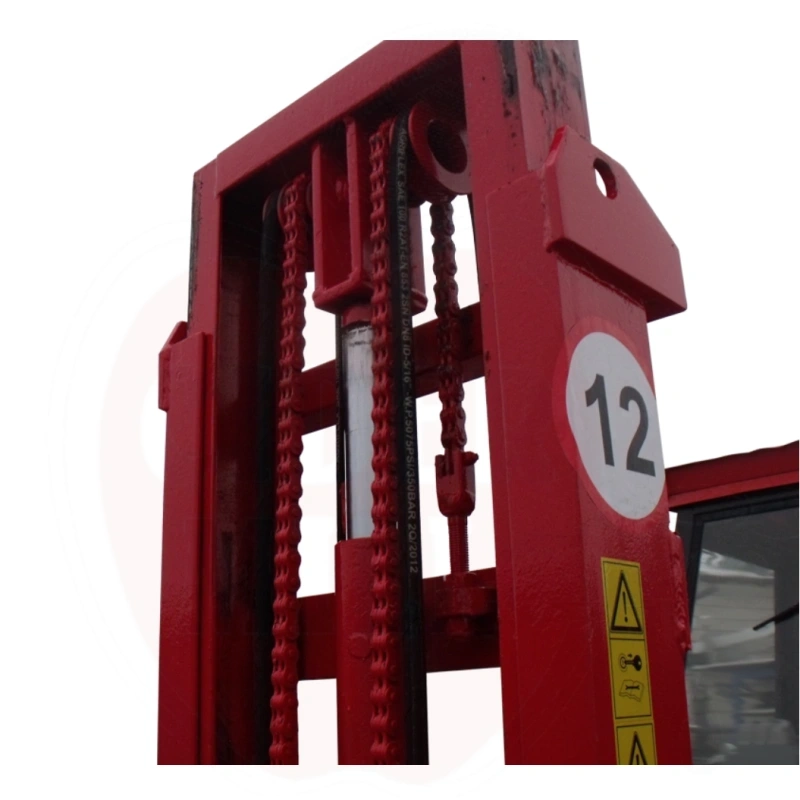

The hydraulic fork loader consists of two main components: lifting mechanism and loader frame. The lifting mechanism includes outer guide, inner guide, fork plate, lifting forks, plunger cylinder, and lifting cable. The frame consists of steel frame construction, supports (left and right), and double-acting piston cylinder. Hydraulic system installation components are supplied separately. A piston cylinder mounted horizontally to the lower part of the frame is used for guide tilting.
The operating principle is the same for all loader types. They only differ in how they attach to the tractor's front axle support, distributor connection to the external hydraulic system, and hydraulic hose lengths.
Technical parameters:
- Model: PHW
- Machine type: Mounted on tractor front axle support
- Weight: 290 kg + support
- Lifting capacity: 700 kg
- Lifting height: 240 cm
- Fork spacing: adjustable 26-90 cm
Overall dimensions:
- Length: depends on tractor type
- Width: 96 cm
- Height: 176 cm
Operating principle: The hydraulic fork loader enables effortless lifting and transportation of pallets and containers. Hydraulic power makes heavy loading tasks easy and efficient, saving time and physical effort. The side shift function increases loader versatility and positioning accuracy.
Product is delivered directly from manufacturer's warehouse and shipping cost is calculated in shopping cart.
Keywords: hydraulic fork loader, tractor-mounted loader, front tractor loader, pallet lifter, hydraulic lift, agricultural machinery, fork loader for tractor, front loader, side shift movement, agricultural equipment, pallet handling, material handling, lifting equipment, agricultural loader, TPL system, fork trucks for tractor, forklift.
| Weight (kg) | 0.000000 |
| High (m) | 1.76 |
| Width (m) | 0.96 |
| Length (m) | 0 |
The hydraulic fork lift for tractor is designed for loading and unloading goods placed on pallets, in containers and boxes, and for transporting them over short distances. The loader is a device mounted on the three-point linkage system (TUZ), designed for 0.6-0.9T class tractors with external hydraulic output (single-acting cylinder). Maximum lifting height is 2.4 m and the maximum lifting capacity is 700 kg.
The hydraulic fork lift consists of two main components: the lifting mechanism and loader frame, and the cross bar of the tractor's three-point linkage system. The lifting mechanism consists of outer guide, inner guide, fork plate, lifting forks, piston cylinder, and lifting cable. The frame consists of steel frame construction, supports (left and right), and double-acting piston cylinder. Components required for hydraulic system installation are supplied separately.
The product is delivered directly from manufacturer's warehouse and transport cost is calculated in the shopping cart.
The device is easy to use - it attaches to the tractor's three-point linkage system and connects to the tractor's hydraulic system. The loader enables lifting and transporting heavy cargo boxes or pallets, moving them to the required location. The lateral hydraulic shift device allows the forks to move sideways, enabling more precise positioning when handling cargo.
Technical parameters: Model: PHW-240/T Machine type: Mounted on tractor TUZ Weight: 310 kg Lifting capacity: 700 kg Lifting height: 240 cm Fork spacing: 26-90 cm (adjustable)
Overall dimensions: Length: 45 cm Width: 96 cm Height: 176 cm
127,00 €
The hydraulic fork lift for tractor is designed for loading and unloading goods placed on pallets, in containers and boxes, and for transporting them over short distances. The loader is a device mounted on the three-point linkage system (TUZ), designed for 0.6-0.9T class tractors with external hydraulic output (single-acting cylinder). Maximum lifting height is 2.4 m and the maximum lifting capacity is 700 kg.
The hydraulic fork lift consists of two main components: the lifting mechanism and loader frame, and the cross bar of the tractor's three-point linkage system. The lifting mechanism consists of outer guide, inner guide, fork plate, lifting forks, piston cylinder, and lifting cable. The frame consists of steel frame construction, supports (left and right), and double-acting piston cylinder. Components required for hydraulic system installation are supplied separately.
The product is delivered directly from manufacturer's warehouse and transport cost is calculated in the shopping cart.
The device is easy to use - it attaches to the tractor's three-point linkage system and connects to the tractor's hydraulic system. The loader enables lifting and transporting heavy cargo boxes or pallets, moving them to the required location. The lateral hydraulic shift device allows the forks to move sideways, enabling more precise positioning when handling cargo.
Technical parameters: Model: PHW-240/T Machine type: Mounted on tractor TUZ Weight: 310 kg Lifting capacity: 700 kg Lifting height: 240 cm Fork spacing: 26-90 cm (adjustable)
Overall dimensions: Length: 45 cm Width: 96 cm Height: 176 cm
