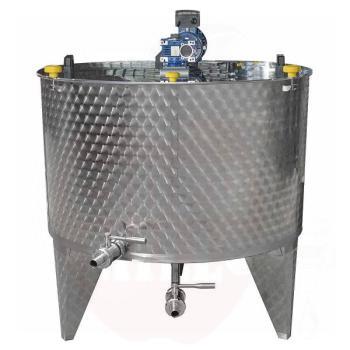

500L Stainless Steel Mixer with Conical Bottom

Professional 500-liter stainless steel mixer designed for liquid mixing, wine production, kombucha brewing, and fruit and food processing. Made from high-quality AISI 304 stainless steel.

Technical Specifications

  • Volume: 500 liters
  • Motor: 220V, with speed reducer (14 rpm)
  • Power consumption: 0.18 kW
  • Conical bottom: 10° slope
  • Diameter: 1025 mm
  • Total height: 1225 mm

Construction

  • Reinforced stainless steel lid with securing hooks
  • Mirror-polished interior surface for hygienic cleaning
  • Satin-finished welded exterior surface
  • Wall thickness: 1.2 mm
  • Bottom thickness: 1.5 mm

Drainage System

  • Main drain: DIN32 ball valve (DIN32 M x DIN 32 F)
  • Additional drain: DIN32 ball valve (DIN32 M x DIN 32 F)
  • Hose connections: DIN32 M x PG30

Support Structure

Equipped with three sturdy stainless steel legs, 400 mm in height, ensuring optimal stability of the unit.

Keywords: mixer 500L, stainless steel mixer, wine mixer, kombucha tank, fruit mixer, food mixer, conical mixer, industrial mixer

Weight (kg) 0.000000
High (m) 1.225
Width (m) 1.025
Length (m) 1.025
