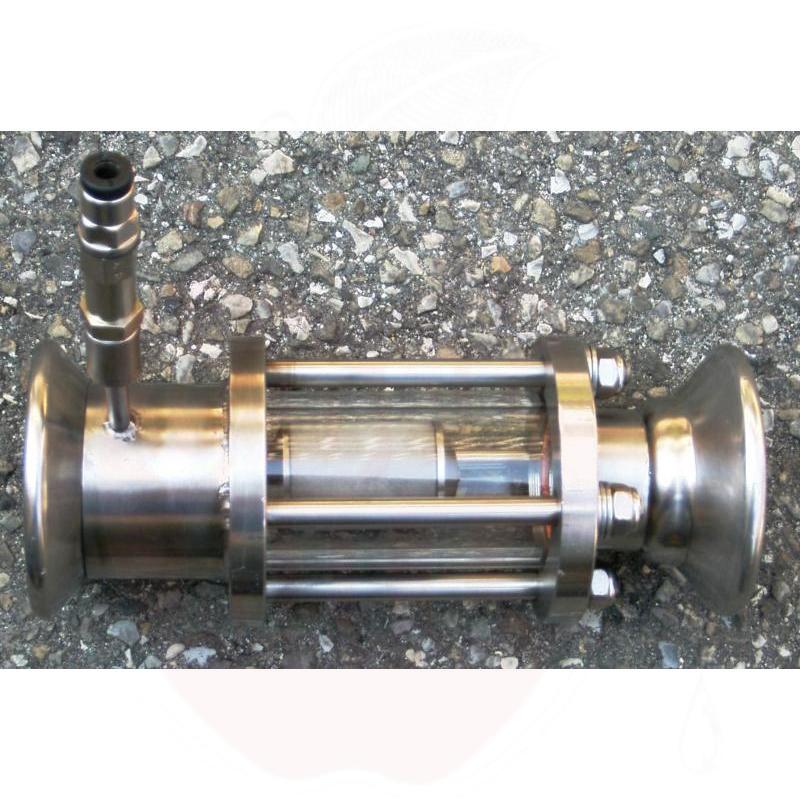

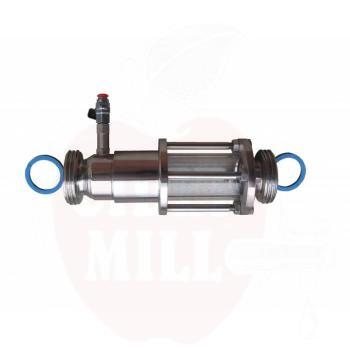

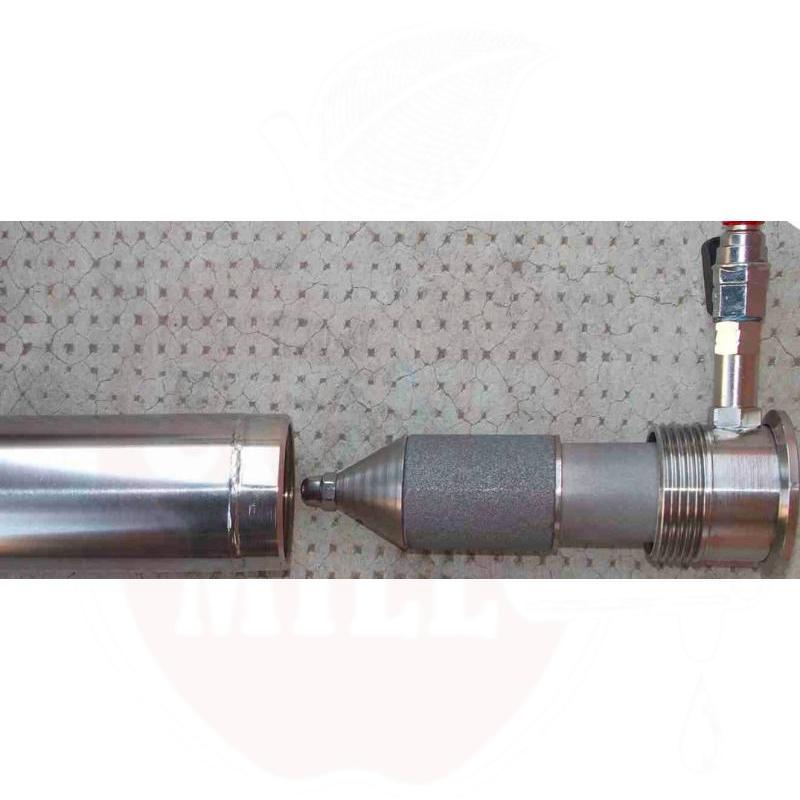

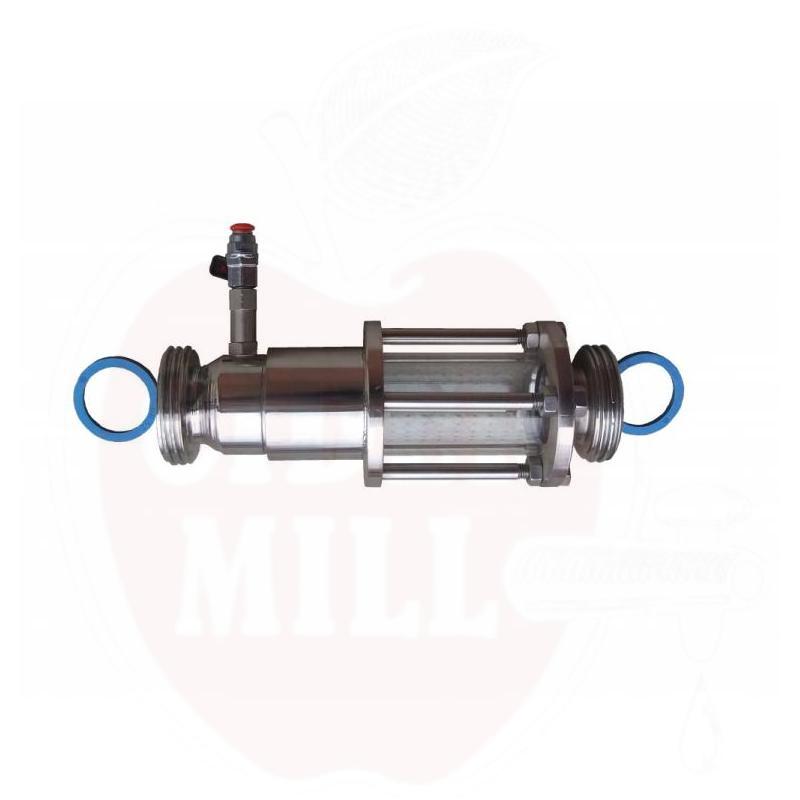

CARGAS CS1 dn40 RJT1,5+Or

In-line Carbonator for Beverage Carbonation - Professional Solution. Fully automatic carbonation unit for processing cider, beer, wine, and water, enabling precise CO2 addition with pressure up to 6 bar. Main Features and Construction: Durable AISI 304 stainless steel housing, insulated tank for optimal temperature control, built-in check valves and pneumatic valves, 7-inch touch-sensitive LED screen for convenient control. Technical Equipment: Electronic pressure switch for precise pressure control, automatic level sensors for min/max volume, adjustable CO2 system with flow indicator, stainless steel pumps for raw material handling. Safety and Control: IP55 standard compliant control panel, integrated safety systems, automatic 6-bar pressure control, DIN-standard clamp connections. Additional Options: AISI 316 stainless steel special components, electronic flow meter for precise dosing, CO2 pre-heating system, 500-liter pressure vessel (6 bar), heat exchanger with separate cooling unit. Maximum power consumption 2kW. Unit is equipped with wheels for easier relocation.

Professional Beverage Carbonation System 200L/h The fully automatic beverage carbonator is designed for industrial-scale production of lemonades, soft drinks, and other carbonated beverages. The device seamlessly integrates with isobaric fillers, ensuring an efficient production process. Technical Specifications: Production capacity: 200 liters per hour Maximum working pressure: 5 bar Suitable for carbonating all cold beverages Integrated automatic pressure control The equipment is made of food-grade stainless steel and ensures consistent, high-quality carbonation. Its compact design allows easy installation into existing production lines. Applications: Small and medium-sized beverage producers Lemonade and soft drink production Mineral water carbonation

Professional Carbonator Fal for Beverage Carbonation The Carbonator Fal is an efficient industrial device that enables the production of quality carbonated beverages with a capacity of up to 1000 liters per hour. The unit is equipped with an integrated pressure tank, ensuring a uniform and stable carbonation process. Versatile Applications: Soda production, cider making, sparkling wine production. Technical Advantages Main technical features of the device: Productivity up to 1000l/h, integrated pressure tank, option to connect directly to filling line. Additional Equipment Options: Automatic syrup dosing system, more powerful model with productivity up to 3000l/h. The Carbonator Fal is a reliable choice for both small producers and larger beverage industries, ensuring an efficient and quality production process.

Three-Tank Industrial Carbonator for Carbonated Beverage Production The fully automatic carbonator is equipped with three special tanks ensuring an efficient production process: Syrup tank for concentrate, Mixing tank for component homogenization, Final product tank for carbonated beverage. Precise dosing is performed by an automatic pump that adds syrup directly into the water flow. The mixture then passes through the carbonator where carbon dioxide (CO2) is added. The finished product moves through a closed system directly to the filling machine. Technical Specifications: Production capacity: 1000 liters per hour, Maximum closed tank pressure: 10 bar, Operating cycle pressure: 2-4 bar, Electrical system: 400V, 50Hz, 3kW, Water connection: ½-inch, 1500 l/h, 3-6 bar, Device dimensions: 1500x500x1690 mm, Weight: approximately 150 kg. Usage Instructions: Water used must be pre-cooled, System needs syrup addition only periodically, Mixing ratio is determined upon ordering.

Professional Carbonation Device for Wine and Cider A modern carbonation device that makes your wine and cider production significantly easier. The device allows efficient addition of carbon dioxide to various beverages, bringing out their perfect aroma and taste. Technical Specifications and Usage: Device dimensions: 380x170 millimeters Connection: Gorolla DN50 Optimal carbonation temperature: +4°C Carbon dioxide concentration: 1x2bar=8.3g/l Carbonation time: approximately 10 minutes Carbonation occurs through an efficient circulation system that ensures even gas distribution throughout the liquid. The device is specifically designed for carbonating wine and cider, offering professional results in a home environment. Perfect choice for home wine and cider makers who want to add sparkle to their drinks and bring out the best flavor nuances.

Carbonation Stone with Micropores Made of AISI316 Stainless Steel The high-quality carbonation stone Micros 01 is made of durable AISI316 stainless steel, ensuring long service life and optimal carbonation results. Technical Specifications: Outer diameter: 30 mm Inner diameter: 25 mm Length: 40 mm Thread: 1/4" Pore size: 15 microns The Micros 01 carbonation stone is ideal for beverage carbonation and even gas distribution. Thanks to its 15-micron pores, the stone creates uniform and fine bubble distribution. The durable AISI316 stainless steel ensures hygiene and long service life even with intensive use. The standard 1/4-inch threaded connection allows easy installation into most carbonation devices and beverage systems.

Carbonation Stone Micros 02 - Two-Stone Set for Processing Wines and Beverages High-quality two-piece carbonation stone set Micros 02, made from durable AISI316 stainless steel. This professional solution is ideal for carbonating wines, juices, and other beverages. Technical Specifications: Material: AISI316 stainless steel Number of stones in set: 2 pcs Single stone dimensions: 30/25 x 40 mm Thread size: 1/4" Pore size: 15 microns Micros 02 carbonation stones ensure uniform and effective CO2 dispersion in liquids. The AISI316 stainless steel components are durable and easy to clean. The 15-micron pore size allows optimal gas permeability, ensuring quality carbonation results. Applications: Wine carbonation Juice carbonation Soft drink production Beer post-carbonation

Stainless Steel Carbonation Stone for CO2 The professional carbonation stone is made of high-quality stainless steel and equipped with hose connections. The device is designed for carbonating beverages and adding CO2. Technical Specifications: Material: stainless steel. Compatible hoses: 7 mm (not included). Compact and durable construction. Use and Maintenance: To connect the carbonation stone, attach the hoses and direct CO2 to the stone. Follow these maintenance instructions to ensure long-term reliability of the device: Clean regularly with active oxygen OXI solution. Sterilize with boiling water. Always handle the stone with gloves or a clean cloth. Safety Instructions: To ensure long-term reliability of the carbonation stone, avoid touching the stone with bare hands. Grease from skin can clog the fine pores of the stone and reduce the device's efficiency.

Karboniseerimiskaas õlleankrutele (mullivesi), kuni 10L/h. See on lihtsaim viis, kuidas saada pidevalt mullivett otse kraanist. Ära raiska oma aega Sodastream'i või teiste kallimate karboniseerijatega. See lihtne seade võimaldab sul hõlpsasti saada pidevalt karboniseeritud vett otse oma veevõrgust. Loe allpool olevat kirjeldust, kuidas seda seadistada. Mullivee karboniseerija - Ankru reaktorkaas. Miski pole värskendavam kui oma mullivesi kodus kraanist. Sodastream seadmed on head, kuid nende väikeste 1L pudelite täitmine on tülikas ning väikesed CO2 balloonid saavad kiiresti tühjaks ja nende vahetamine on kallis. Lahenda see probleem jäädavalt pideva mullivee karboniseerimissüsteemiga. KegLand on loonud selle väga lihtsa kasutuslahendusega kaane, mis kinnitub standardsele kuulliitmikuga õlleankrule. Saad kasutada nii meie 19L kui ka 9,5L ankreid. Kõik, mida teha tuleb: Aseta ankur külmkappi, õllekülmikusse, külmruumi või mujale jahedasse kohta (ideaalis alla 5°C). Kinnita oma valitud kraaniosa mullivee väljalaskeavasse. Ühenda CO2 gaasi sisendavasse. Seadista CO2 regulaator, mis on ühendatud gaasi sisendavaga, rõhule 30-50 psi (kõrgem rõhk annab rohkem karboniseeritust, seega seadista regulaator vastavalt soovitud karboniseerituse tasemele). MÄRKUS: Soovitatav on kasutada tagasilöögiklappi CO2 voolikus. Soovitame kasutada duotight tagasilöögiklappi või integreeritud klappi kuulliitmiku lahtiühendajas. Esimesel kasutuskorral on hea mõte puhastada ankru ülaosas olev õhk. Selleks tõmba PRV-d ankru kaanel umbes 5 korda 2-sekundiliste tõmmetega. Ühenda veevõrk ankru kaane vee sisendavaga. Soovitame selleks kasutada tagasilöögiklappi, et vältida mullivee tagasivoolu kodusesse veevõrku. Soovitame duotight tagasilöögiklappi. Samuti on hea mõte vähendada oma veevõrgu rõhku. Enamiku kodude veevõrgu rõhk on üle 100 psi. Selle seadme hästi töötamiseks peaks veevõrgu rõhk olema 10-15 psi kõrgem kui regulaatori seaderõhk (punktist 4). Veerõhu reguleerimiseks soovitame kasutada Inline Regulaatorit. Ongi kõik. See lihtne seade varustab sind pideva mullivee vooluga, mis on ühendatud sinu veevõrguga. Suurepärane lahendus nii baari, kohviku, restorani kui ka kodu jaoks. Seade suudab karboniseerida kuni 10 liitrit tunnis, kui sul on piisav võimekus vett jahutada. Mida külmem on vesi ja mida kõrgem on gaasirõhk (punktist 4), seda kõrgem on karboniseerituse tase. Kui soovid äärmiselt kõrget mullivee tootmiskiirust, saad vett eeljahutada, asetades ühe (või mitu) ankrut jadamisi enne karboniseerimisreaktorit. See aitab vett eeljahutada enne, kui see siseneb karboniseerijasse. Alternatiivina võid kasutada jahutit, näiteks G40 glükoolijahutit, et vett eeljahutada enne selle sisenemist karboniseerijasse. Kui teed seda, saad suurendada karboniseerimiskiirust üle 30 liitri tunnis. Seade kasutab rõhu all olevat süsihappegaasi, mis seguneb külma veega, luues karboniseeritud mullivee. Külm temperatuur ja kõrge rõhk aitavad süsihappegaasil veega paremini seguneda, moodustades püsivaid mulle.
