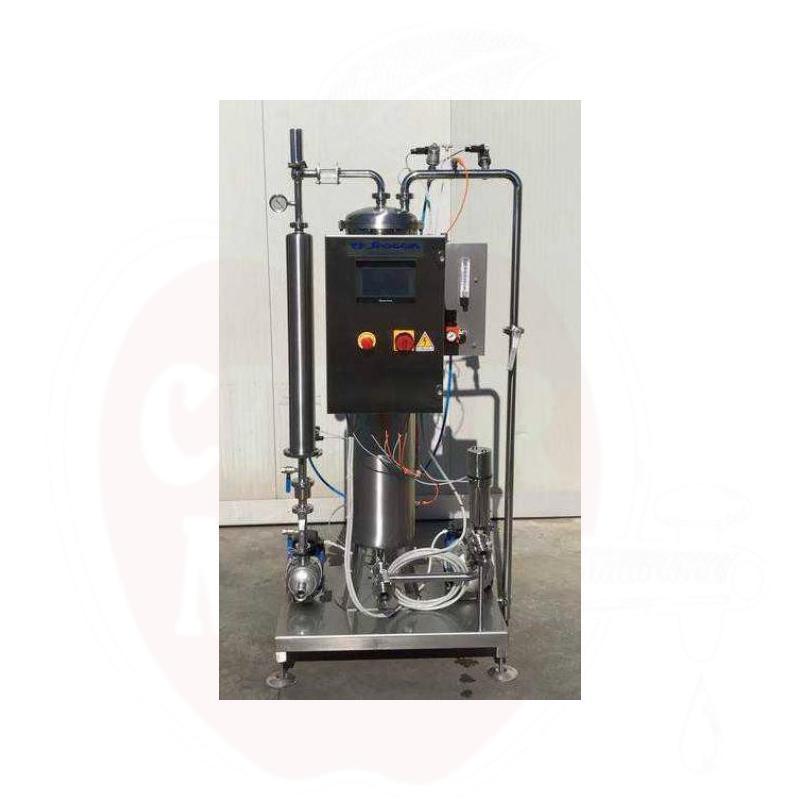

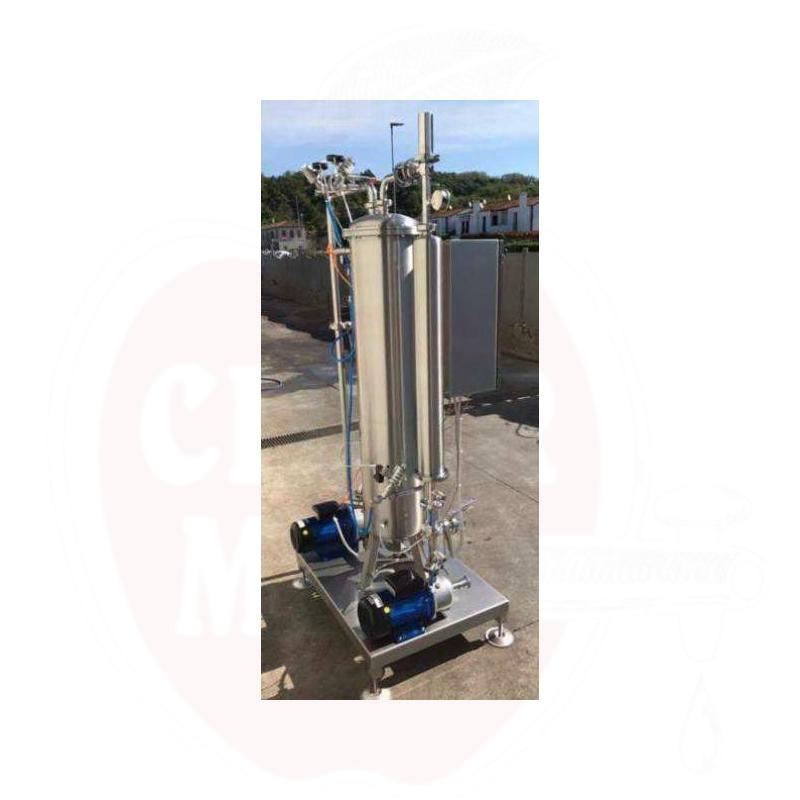

Carbonizer Eco Micro Line up to 500l/h
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 2000000020228
Unit: pc
Stock qty: On special order
Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.
In-line Carbonator for Beverage Carbonation - Professional Solution
Fully automatic carbonation unit for processing cider, beer, wine, and water, enabling precise CO2 addition with pressure up to 6 bar.
Main Features and Construction
- Durable AISI 304 stainless steel housing
- Insulated tank for optimal temperature control
- Built-in check valves and pneumatic valves
- 7-inch touch-sensitive LED screen for convenient control
Technical Equipment
- Electronic pressure switch for precise pressure control
- Automatic level sensors for min/max volume
- Adjustable CO2 system with flow indicator
- Stainless steel pumps for raw material handling
Safety and Control
- IP55 standard compliant control panel
- Integrated safety systems
- Automatic 6-bar pressure control
- DIN-standard clamp connections

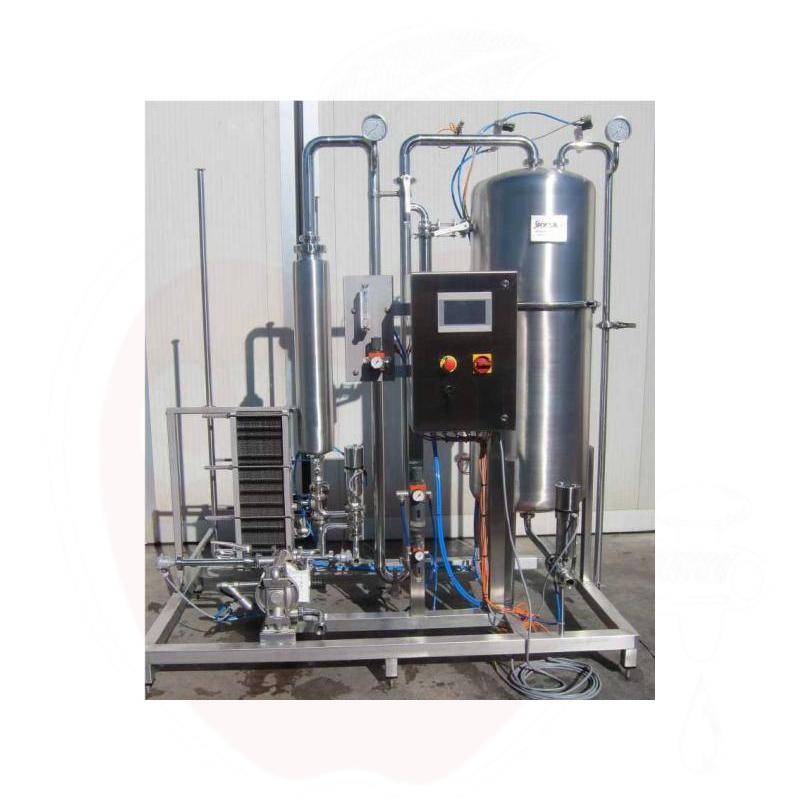

Additional Options
- AISI 316 stainless steel special components
- Electronic flow meter for precise dosing
- CO2 pre-heating system
- 500-liter pressure vessel (6 bar)
- Heat exchanger with separate cooling unit
Maximum power consumption 2kW. Unit is equipped with wheels for easier relocation.
Keywords: carbonator, beverage carbonation, cider equipment, beer production, wine carbonation, CO2 system, beverage industry equipment, industrial carbonation
| Weight (kg) | 0.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
