Tipping trailer PW-490/H for tractor
Professionals recommend - producers prefer!
EAN: 20000000542382
Unit: pc
Stock qty: On special order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.
9,05 €/Kg

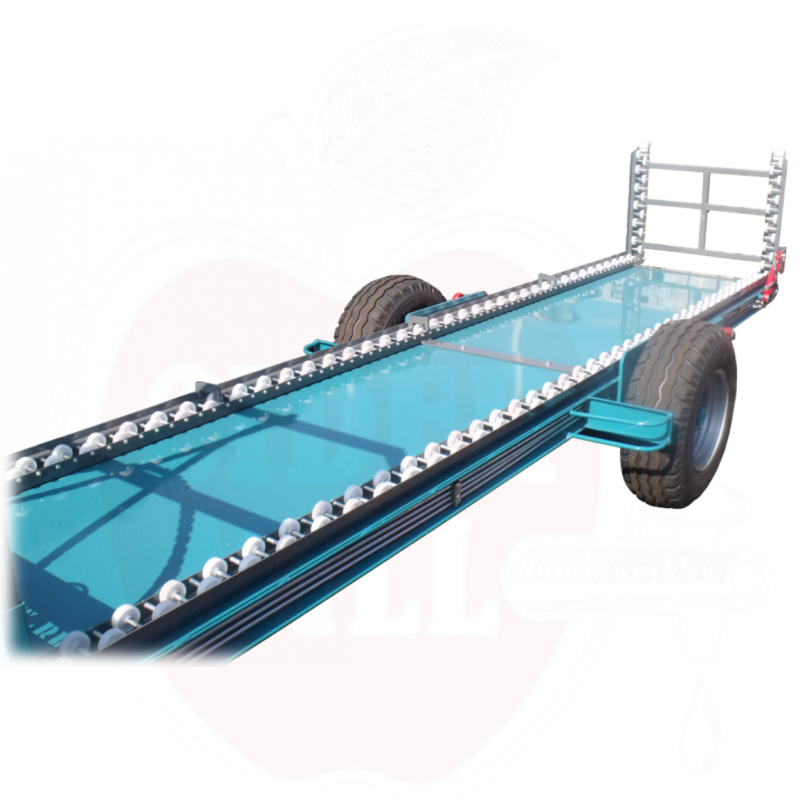

The tilting trailer PW-490/H is a machine connected with a three-point linkage system (TUZ), designed to work with 0.6T and higher class agricultural tractors. It is created to transport box pallets with fruits, vegetables, and other common agricultural loads from harvesting site to unloading location. Thanks to the sliding system of the support structure, tailgate sliding system, and height-adjustable support structure, the trailer can be emptied independently without using additional equipment.
Technical specifications:
Parameters - PW-490/H
Load capacity - 2500 kg
Minimum loading height - 25 cm
Weight - 850 kg
Trailer useful surface dimensions:
Width - 102 cm
Length - 490 cm
The operating principle of the tilting trailer is simple - it connects to the tractor's rear mounting points, allowing transportation of agricultural loads. Thanks to the special tilting system, loads can be easily unloaded without additional equipment.
The product is delivered directly from the manufacturer's warehouse, and transport costs are calculated in the shopping cart.
Keywords: tilting trailer, agricultural trailer, three-point linkage system, tractor trailer, box pallet trailer, self-tilting trailer, TUZ attachment, agricultural vehicle, crop transport, agricultural equipment, agricultural cargo transport, tractor-intended trailer, tilting mechanism.
Weight (kg) | 850.000000 |
High (m) | 0 |
Width (m) | 0 |
Length (m) | 0 |
The hydraulic fork lift for tractor is designed for loading and unloading goods placed on pallets, in containers and boxes, and for transporting them over short distances. The loader is a device mounted on the three-point linkage system (TUZ), designed for 0.6-0.9T class tractors with external hydraulic output (single-acting cylinder). Maximum lifting height is 2.4 m and the maximum lifting capacity is 700 kg.
The hydraulic fork lift consists of two main components: the lifting mechanism and loader frame, and the cross bar of the tractor's three-point linkage system. The lifting mechanism consists of outer guide, inner guide, fork plate, lifting forks, piston cylinder, and lifting cable. The frame consists of steel frame construction, supports (left and right), and double-acting piston cylinder. Components required for hydraulic system installation are supplied separately.
The product is delivered directly from manufacturer's warehouse and transport cost is calculated in the shopping cart.
The device is easy to use - it attaches to the tractor's three-point linkage system and connects to the tractor's hydraulic system. The loader enables lifting and transporting heavy cargo boxes or pallets, moving them to the required location. The lateral hydraulic shift device allows the forks to move sideways, enabling more precise positioning when handling cargo.
Technical parameters: Model: PHW-240/T Machine type: Mounted on tractor TUZ Weight: 310 kg Lifting capacity: 700 kg Lifting height: 240 cm Fork spacing: 26-90 cm (adjustable)
Overall dimensions: Length: 45 cm Width: 96 cm Height: 176 cm
