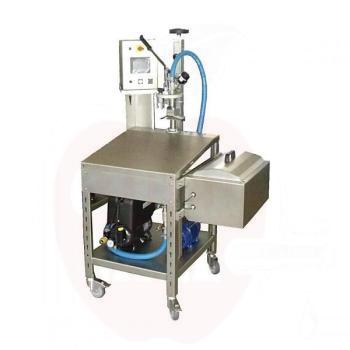

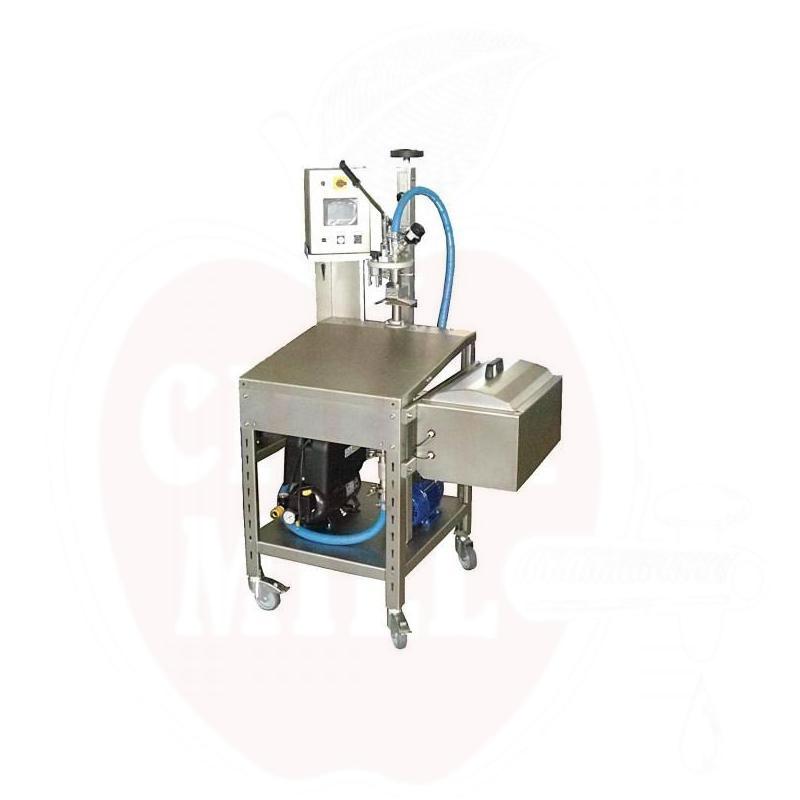

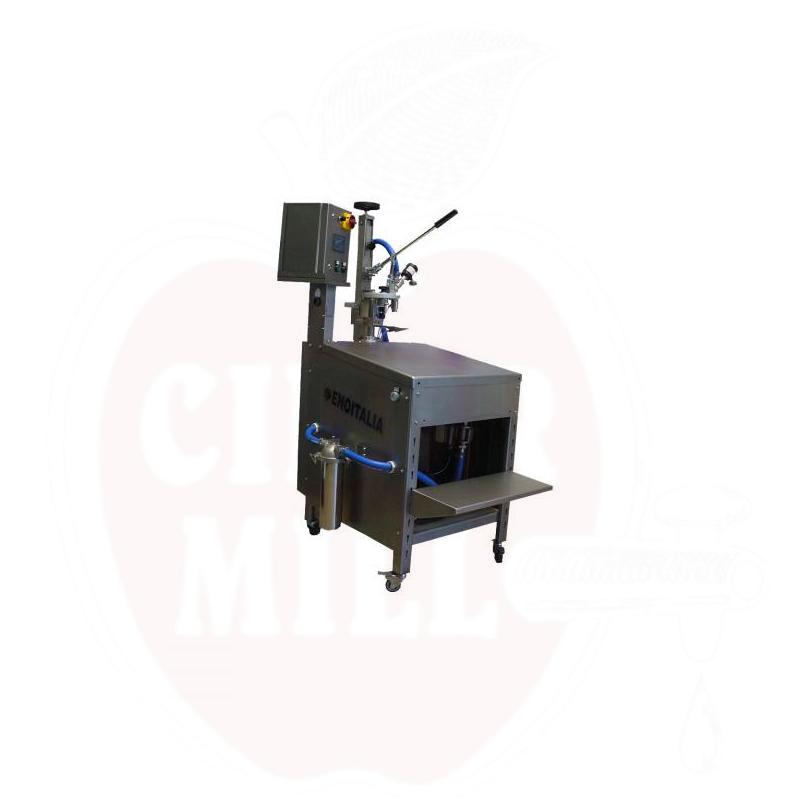

Semi-automatic filling TOP BB20 for hot filling without compressor

Bag-in-Box Filling Equipment for Juice Packaging

Advanced semi-automatic filling equipment of Italian origin, ideal for filling juice, wine, and other liquids into storage bags.

Main Features

• Automatic filling cycle: vacuum, filling, completion, and CO2 injection
• Precise dosing (+/- 5cl)
• Touch-screen PLC control panel with multilingual software
• Burkert type electromagnetic flow meter sensor

Production Capacity

• 3-liter bags: 350 pcs/h
• 5-liter bags: 300 pcs/h
• 10-liter bags: 180 pcs/h
• 20-liter bags: 130 pcs/h

Technical Specifications

• Power: 1.1 kW + 1.5 kW (220V/380V)
• Air pressure: 6 bar
• CO2 pressure: 1 bar
• Dimensions: 60x82x150 cm
• Weight: 70 kg

Standard Equipment

• EURO 30 pump (4500 l/h)
• Stainless steel wheeled workbench
• Automatic cleaning program (CIP)
• VITOP-standard tap system
• Buffer tank with pneumatic shut-off valve
• Triclamp 1.5" connection pipes and fittings

Optional Equipment

• Stainless steel control panel
• CO2 pressure reduction valve
• Oil filling accessories
• Filling speed regulator
• Air compressor
