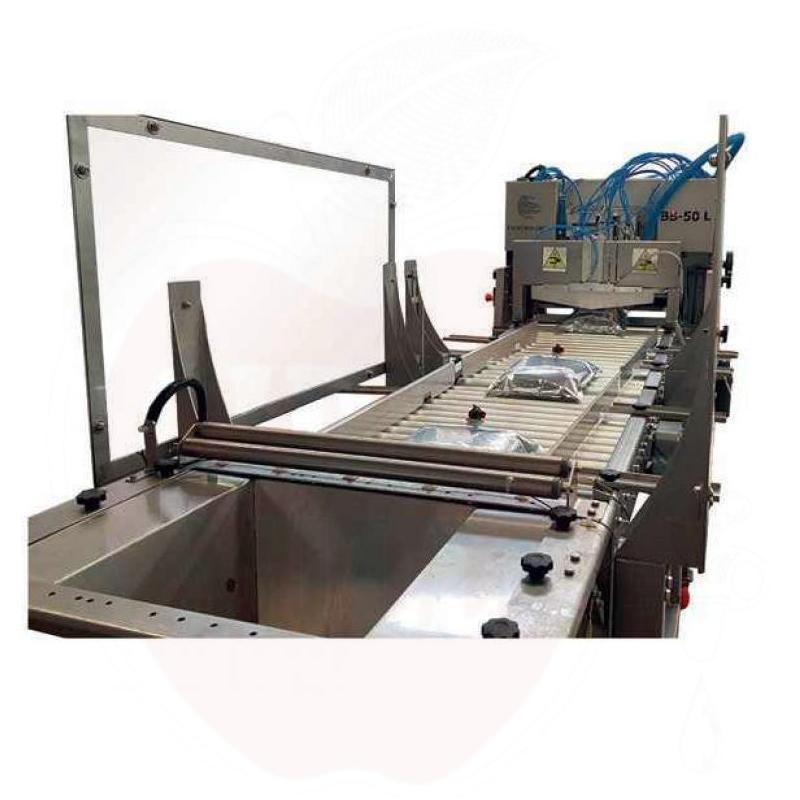

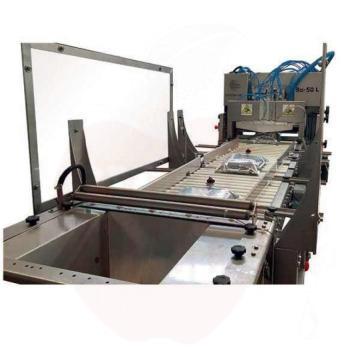

Automatic Filling Bag In Box BB50

Fully Automatic Bag-in-Box Filling Machine. State-of-the-art filling equipment combining precision and efficiency. Equipped with SIEMENS PLC touchscreen and multilingual user interface. Technical Specifications: Dimensions: 800x1000x1500mm, Weight: 110kg, Maximum filling temperature: +90°C, Filling capacity: up to 4500l/h. Hourly Production: 3L bags: 380 pcs, 5L bags: 240 pcs, 10L bags: 210 pcs, 20L bags: 140 pcs. Main Functions: Automatic valve handling, Induction flow meter (accuracy class 0.2%), Vacuum system with nitrogen injection, Self-cleaning rubber impeller volume pump (900 rpm), Automatic bag opening/closing (Vitop standard). Special Features: 10 saveable filling programs, Automatic CIP cleaning program, Disinfection capability up to +120°C, 4-wheel stainless steel frame, Adjustable support for box filling. Additional Equipment: Electronic filling speed controller, Automatic buffer tank, Air compressor, Special bag cap tool, Oil filling equipment, Filters (10" or 30"), Air filter.

Bag-in-Box Filling Equipment for Juice Packaging. Advanced semi-automatic filling equipment of Italian origin, ideal for filling juice, wine, and other liquids into storage bags. Main Features: Automatic filling cycle: vacuum, filling, completion, and CO2 injection, Precise dosing (+/- 5cl), Touch-screen PLC control panel with multilingual software, Burkert type electromagnetic flow meter sensor. Production Capacity: 3-liter bags: 350 pcs/h, 5-liter bags: 300 pcs/h, 10-liter bags: 180 pcs/h, 20-liter bags: 130 pcs/h. Technical Specifications: Power: 1.1 kW + 1.5 kW (220V/380V), Air pressure: 6 bar, CO2 pressure: 1 bar, Dimensions: 60x82x150 cm, Weight: 70 kg. Standard Equipment: EURO 30 pump (4500 l/h), Stainless steel wheeled workbench, Automatic cleaning program (CIP), VITOP-standard tap system, Buffer tank with pneumatic shut-off valve, Triclamp 1.5" connection pipes and fittings. Optional Equipment: Stainless steel control panel, CO2 pressure reduction valve, Oil filling accessories, Filling speed regulator, Air compressor.

Professional Filling Equipment for Juice Packages and Bottles Modern semi-automatic filling system, ideal for filling juice into both storage bags and bottles. The device is manufactured in Italy, ensuring the highest quality and reliability. Technical Specifications: Productivity: 3L packages - 350 pcs/h, 5L packages - 300 pcs/h, 10L packages - 180 pcs/h, 20L packages - 130 pcs/h. Filling accuracy +/- 5cl. Power: 1.1kW + 1.5kW (220V or 380V). Dimensions: 60x82x150cm. Weight: 70kg. Main Features: Touch-sensitive PLC control panel with multilingual software, Burkert type electromagnetic meter for cold liquids, Integrated vacuum and nitrogen system, Powerful pump (4500 l/h) with bypass, Adjustable filling volume 1-30 liters, 4 bottle filling nozzles with adjustable levels. Safety and Cleaning: Automatic cleaning program (CIP), Non-return valve in pump system, Stainless steel worktable with wheels, Triclamp 1.5" connection pipes and fittings. Additional Equipment: Stainless steel control panel, CO2 pressure reduction valve, Oil filling capability, Filling speed regulation, Filter systems, Pouch-up bag filling function, Bag-in-box installation add-on.

Fully Automatic Bag-in-Box Filling Machine. State-of-the-art filling equipment combining precision and efficiency. Equipped with SIEMENS PLC touchscreen and multilingual user interface. Technical Specifications: Dimensions: 800x1000x1500mm, Weight: 110kg, Maximum filling temperature: +90°C, Filling capacity: up to 4500l/h. Hourly Production: 3L bags: 380 pcs, 5L bags: 240 pcs, 10L bags: 210 pcs, 20L bags: 140 pcs. Main Functions: Automatic valve handling, Induction flow meter (accuracy class 0.2%), Vacuum system with nitrogen injection, Self-cleaning rubber impeller volume pump (900 rpm), Automatic bag opening/closing (Vitop standard). Special Features: 10 saveable filling programs, Automatic CIP cleaning program, Disinfection capability up to +120°C, 4-wheel stainless steel frame, Adjustable support for box filling. Additional Equipment: Electronic filling speed controller, Automatic buffer tank, Air compressor, Special bag cap tool, Oil filling equipment, Filters (10" or 30"), Air filter.

Automatic Bag in Box Filling Machine for Industrial Use Efficient and reliable filling machine with a capacity of up to 7000 liters per hour. Perfect solution for small producers with an annual filling volume of approximately 5000 bags. Main features: Electromagnetic pre-settable dosing automation. Adjustable filling height for comfortable use. Pressure-based filling system. Minimum dosing volume: 1 liter. Accuracy: +/- 5-10cl. Maximum operating temperature: +80°C. Applications: Juice filling, Wine filling, Oil filling, Canister filling (max diameter 85mm). Technical advantages: Easy to clean thanks to removable piping. Versatile sensors for filling different liquids. Optional steam sterilization function (+110°C). Work process: Operator removes the cap. Machine performs automatic filling. Operator closes the cap. Available as additional equipment: Pump, Steam sterilization system (+110°C).

Bag-in-Box Filling Equipment for Juice Packaging. Advanced semi-automatic filling equipment of Italian origin, ideal for filling juice, wine, and other liquids into storage bags. Main Features: Automatic filling cycle: vacuum, filling, completion, and CO2 injection, Precise dosing (+/- 5cl), Touch-screen PLC control panel with multilingual software, Burkert type electromagnetic flow meter sensor. Production Capacity: 3-liter bags: 350 pcs/h, 5-liter bags: 300 pcs/h, 10-liter bags: 180 pcs/h, 20-liter bags: 130 pcs/h. Technical Specifications: Power: 1.1 kW + 1.5 kW (220V/380V), Air pressure: 6 bar, CO2 pressure: 1 bar, Dimensions: 60x82x150 cm, Weight: 70 kg. Standard Equipment: EURO 30 pump (4500 l/h), Stainless steel wheeled workbench, Automatic cleaning program (CIP), VITOP-standard tap system, Buffer tank with pneumatic shut-off valve, Triclamp 1.5" connection pipes and fittings. Optional Equipment: Stainless steel control panel, CO2 pressure reduction valve, Oil filling accessories, Filling speed regulator, Air compressor.

Professional Filling Equipment for Juice Packages and Bottles Modern semi-automatic filling system, ideal for filling juice into both storage bags and bottles. The device is manufactured in Italy, ensuring the highest quality and reliability. Technical Specifications: Productivity: 3L packages - 350 pcs/h, 5L packages - 300 pcs/h, 10L packages - 180 pcs/h, 20L packages - 130 pcs/h. Filling accuracy +/- 5cl. Power: 1.1kW + 1.5kW (220V or 380V). Dimensions: 60x82x150cm. Weight: 70kg. Main Features: Touch-sensitive PLC control panel with multilingual software, Burkert type electromagnetic meter for cold liquids, Integrated vacuum and nitrogen system, Powerful pump (4500 l/h) with bypass, Adjustable filling volume 1-30 liters, 4 bottle filling nozzles with adjustable levels. Safety and Cleaning: Automatic cleaning program (CIP), Non-return valve in pump system, Stainless steel worktable with wheels, Triclamp 1.5" connection pipes and fittings. Additional Equipment: Stainless steel control panel, CO2 pressure reduction valve, Oil filling capability, Filling speed regulation, Filter systems, Pouch-up bag filling function, Bag-in-box installation add-on.

Semi-automatic filling device for precise liquid dosing The innovative Enoitalia semi-automatic filling device ensures precise and efficient liquid filling. The device is equipped with an electronic dosing system that enables accurate volume control starting from 1 liter. Technical specifications: Electromagnetic pre-settable meter, Pressure-operated filling, Dosing accuracy: +/- 5-10cl, Maximum operating temperature: +80°C, Canister filling capacity up to 85mm diameter. Operating process: Operator removes package cap, Automatic filling process starts, Operator closes the cap. The filling device includes a pump and is manufactured by Italian quality equipment manufacturer Enoitalia. The device is ideal for industrial and small-scale filling processes, ensuring fast and precise operation.
