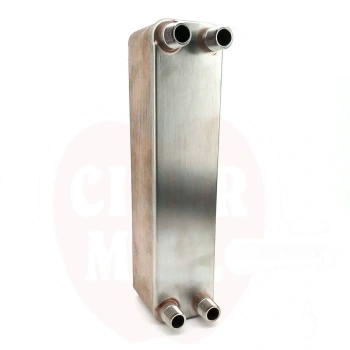

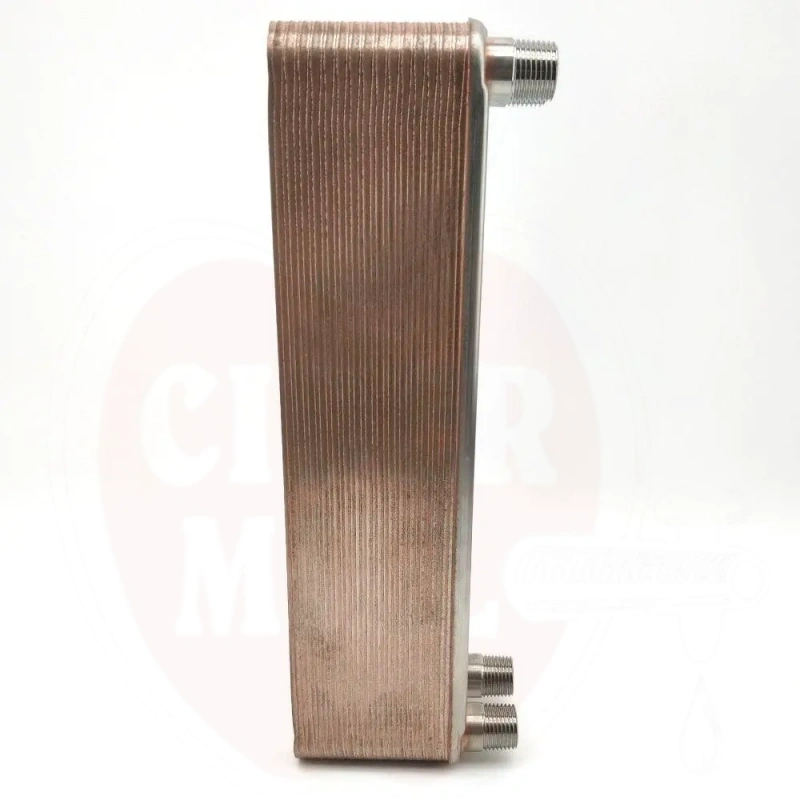

Heat exchanger 30-plate Chillout Threaded MKIV 1/2" BSP stainless steel
.png){kind=small}
Professionals recommend - producers prefer!
Brand:
Unit: pc
Stock qty: Pre-order
Delivery time (day): Eritellimustoode / Please contact / Ota yhteyttä
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
Usage: The Chillout Threaded MKIV Counterflow Chiller is designed to rapidly cool your wort from boiling temperature to yeast pitching temperature, ensuring a quick and healthy start to fermentation. Ideal for professional and home brewers seeking efficient heat transfer.

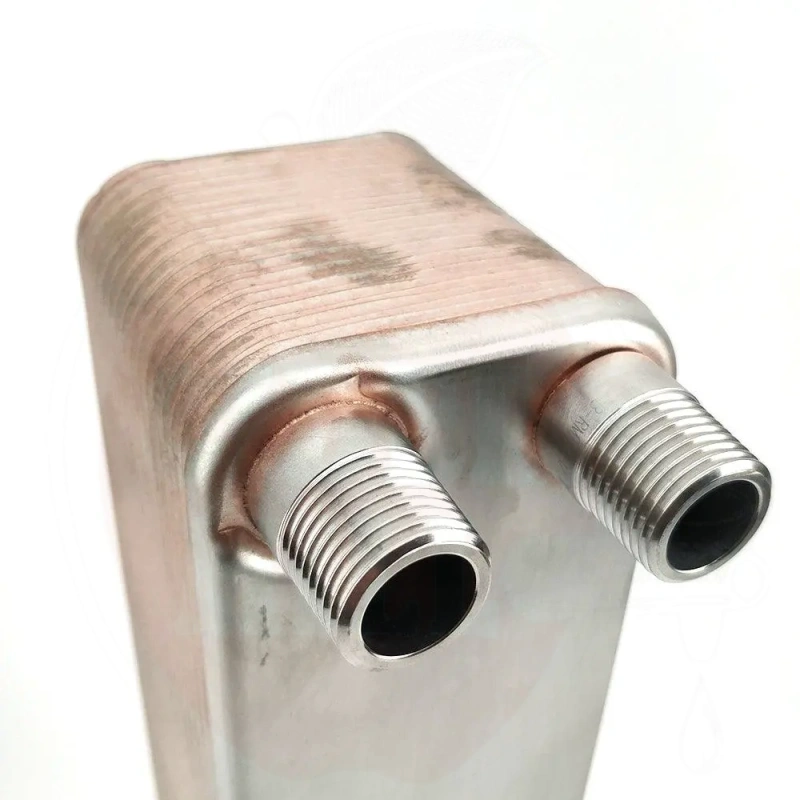

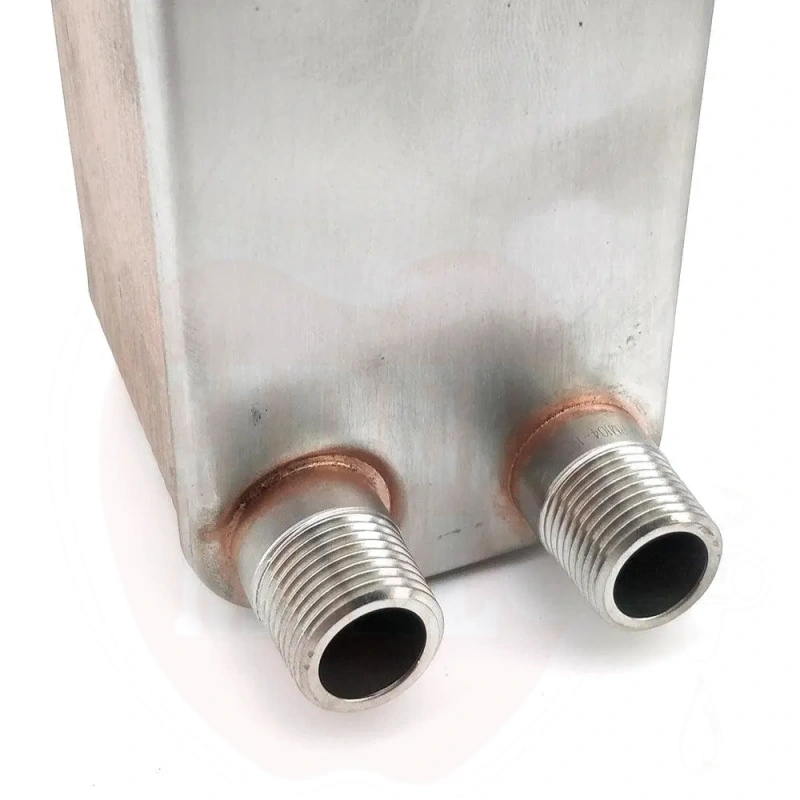

Features: Constructed from high-quality stainless steel and brazed with pure copper. Features 30 rippled plates that create increased surface area for superior heat transfer. Equipped with male 1/2" BSP threaded connections for versatile fitting compatibility. Fully polished finish.

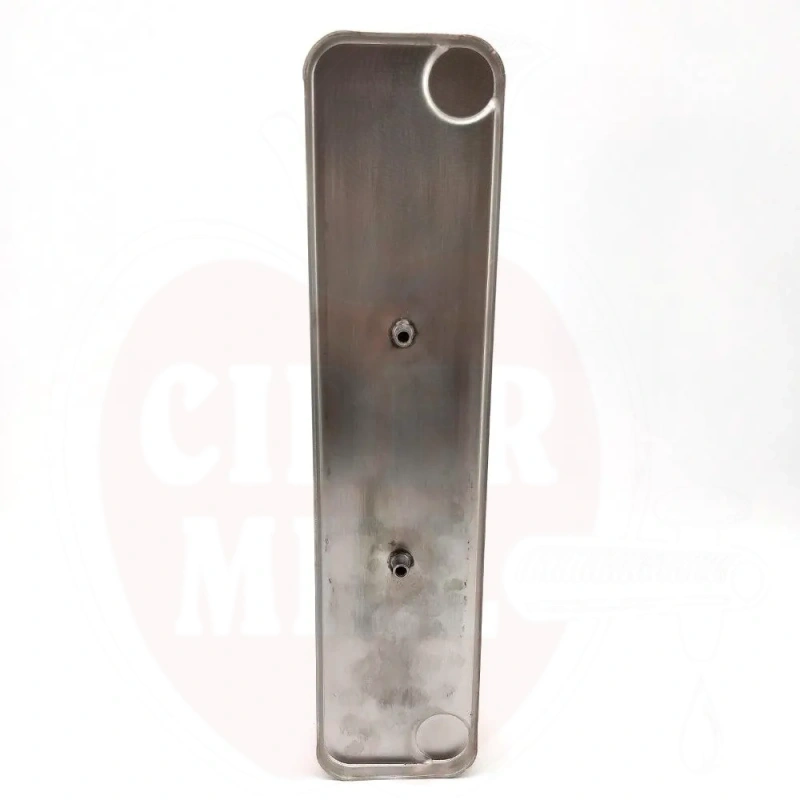

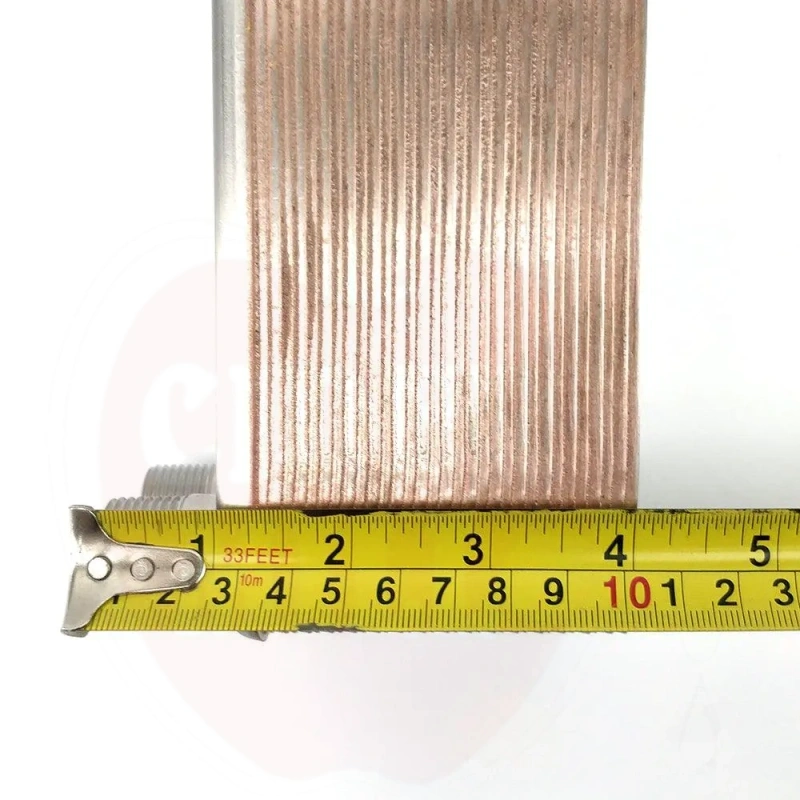

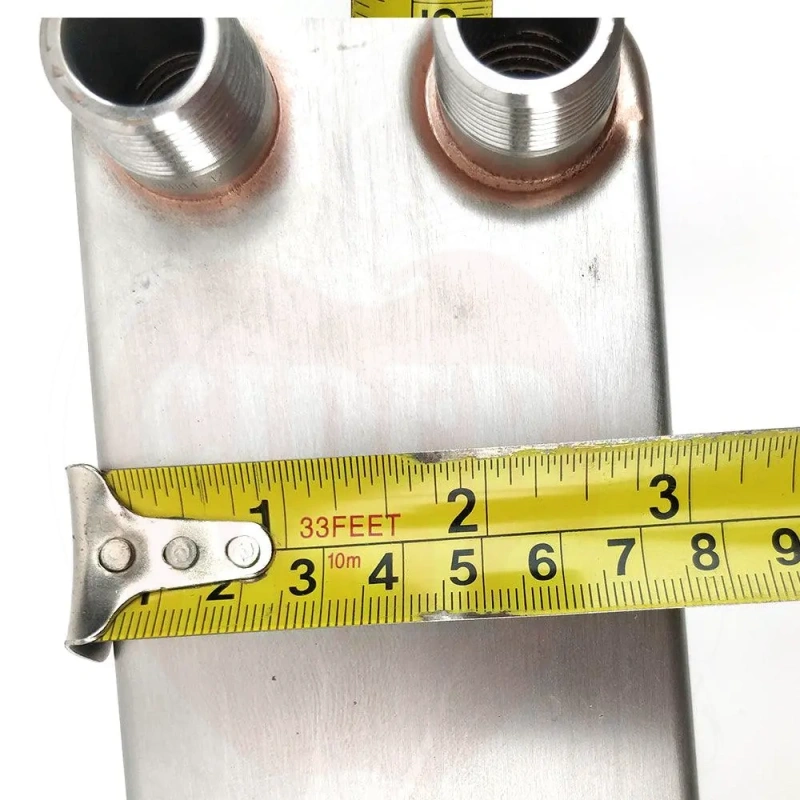

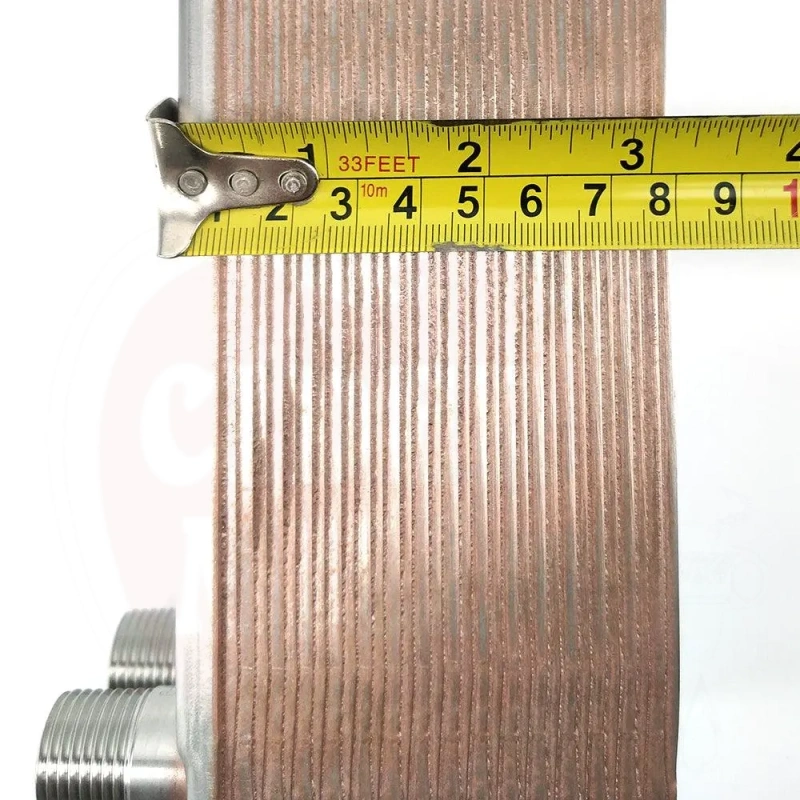

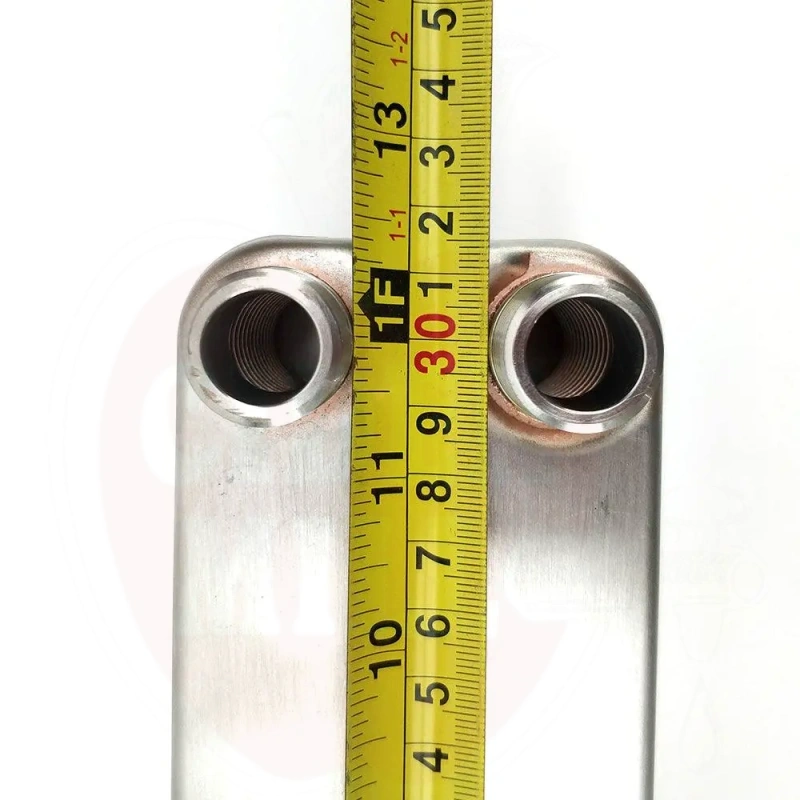

Technical data: Dimensions: 315mm x 73mm x 51mm (excluding threads). Thread type: 1/2" BSP male. Mounting: Two M5 bolt mounting points on rear. Material: Stainless steel with copper brazing.
Usage recommendations: For water supply, attach 1/2" to garden hose fittings. For hot wort side, use male to female camlocks. To clean, backflush by connecting water supply to the wort outlet port for several minutes to remove all residue. Sanitise before use with boiling wort or a short flush with StellarSan.
| Weight (kg) | 0.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
