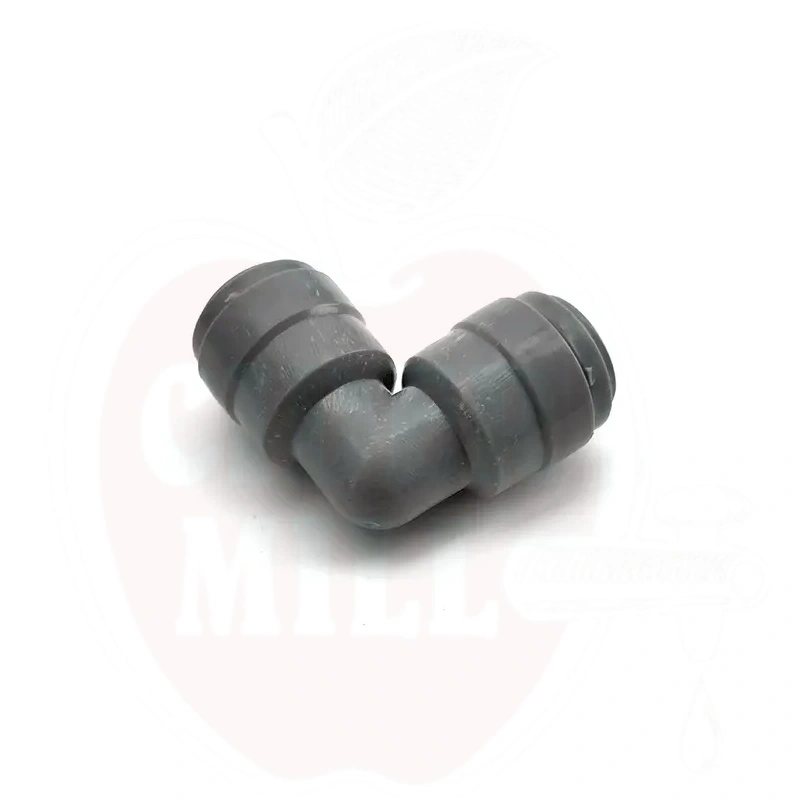

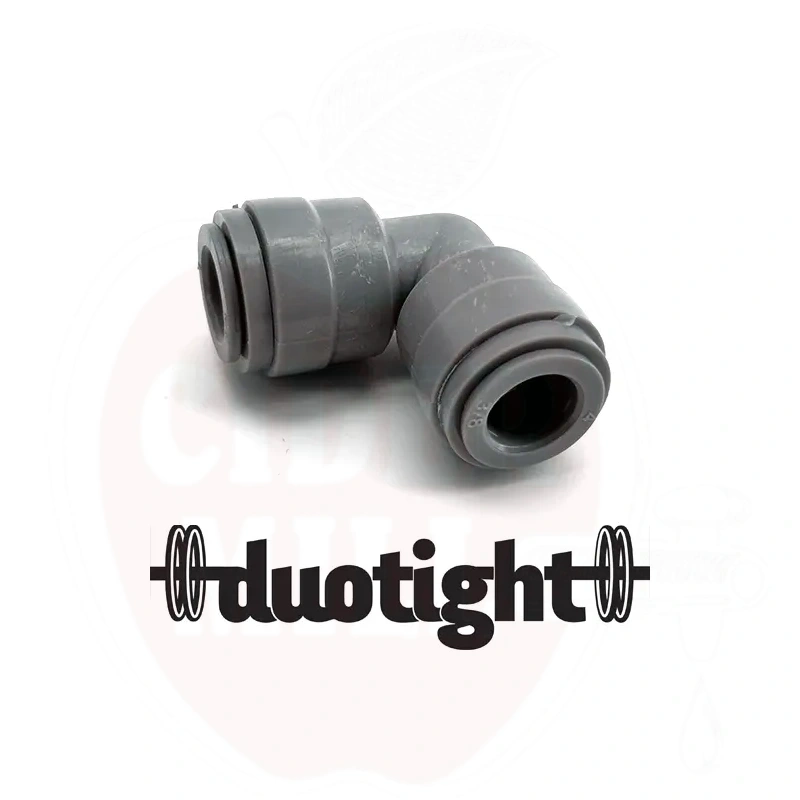

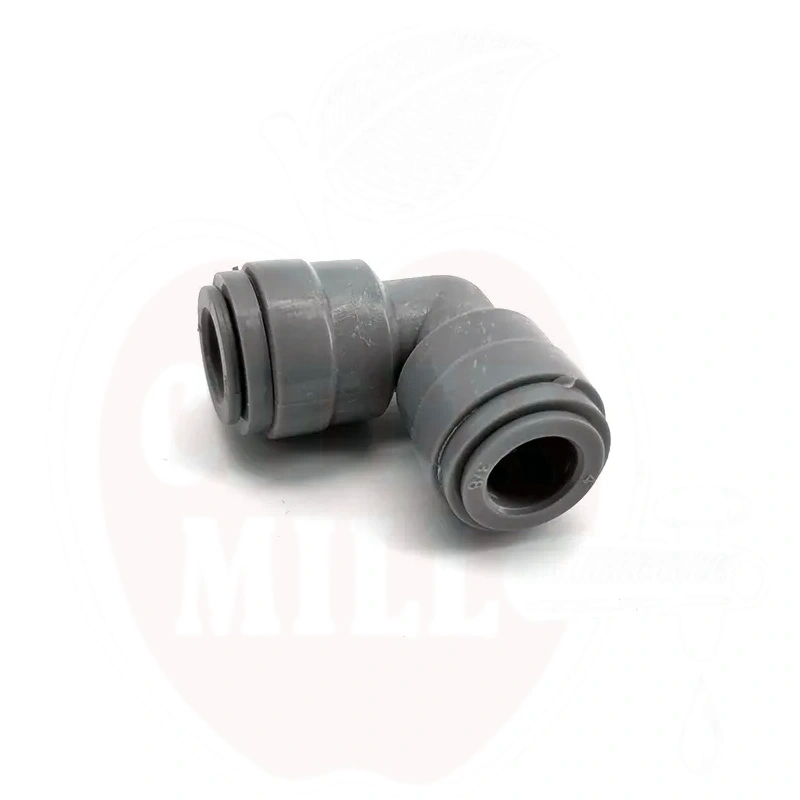

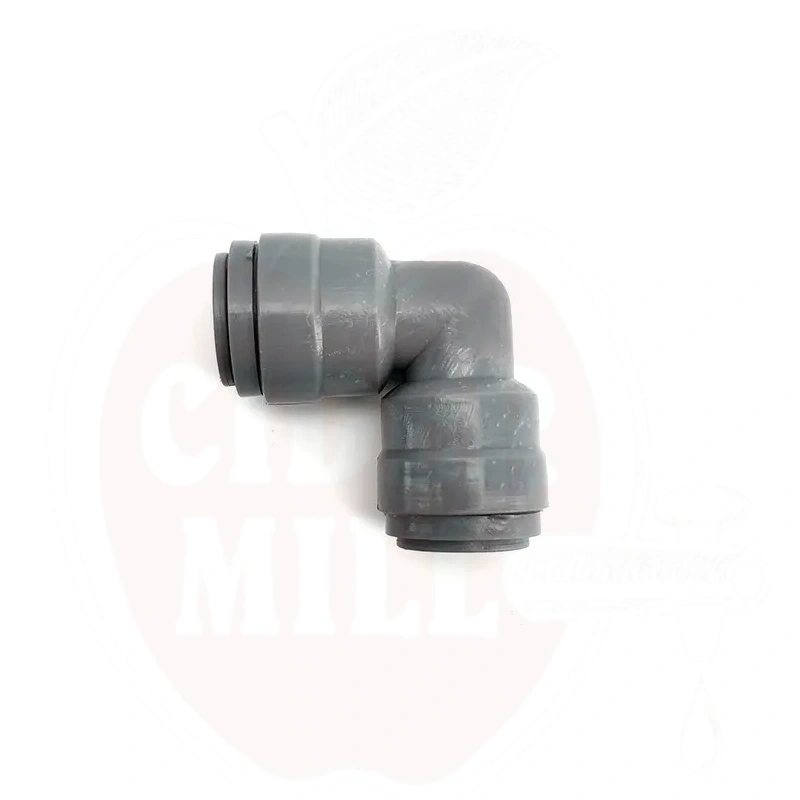

Elbow 9.5mm DuoTight quick connect
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 588558
Brand:
Unit: pc
Stock qty: 50
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
530,00 €/Kg
Files
Usage: Professional push-in fittings for beer, wine, and beverage production systems. Compatible with EVABarrier tubing 6.5mm (1/4") ID × 9.5mm (3/8") OD.
Features: Double O-ring sealing system with EPDM o-rings for superior leak prevention. 90-degree elbow design. No clamps required - simple push-to-connect installation. Tighter bending radius without leaking compared to standard fittings. duotight 1.10 design revision.
Technical data: Maximum pressure: 100 psi (6.9 bar). Material: EPDM o-rings (ethylene propylene rubber). Port size: 9.5mm (3/8"). Installation: Cut hose straight (not angled) for complete seal. To disconnect: push collet and remove hose. Suitable for both gas and liquid applications.
Important: EPDM offers excellent chemical resistance to ozone, oils, alkaline and acid compounds, water, alcohol, ketones, and beverages. Superior aging and weather resistance. Better gas transmission rates than silicone/vinyl. BPA-free, food-grade material.
⚠️ Important: Different plant extracts, tinctures, or liquids may damage plastic materials during prolonged contact. Verifying compatibility between packaging and solution is the filler's/manufacturer's responsibility.
| Weight (kg) | 0.010000 |
| High (m) | 0.05 |
| Width (m) | 0.03 |
| Length (m) | 0.02 |
59,00 €
