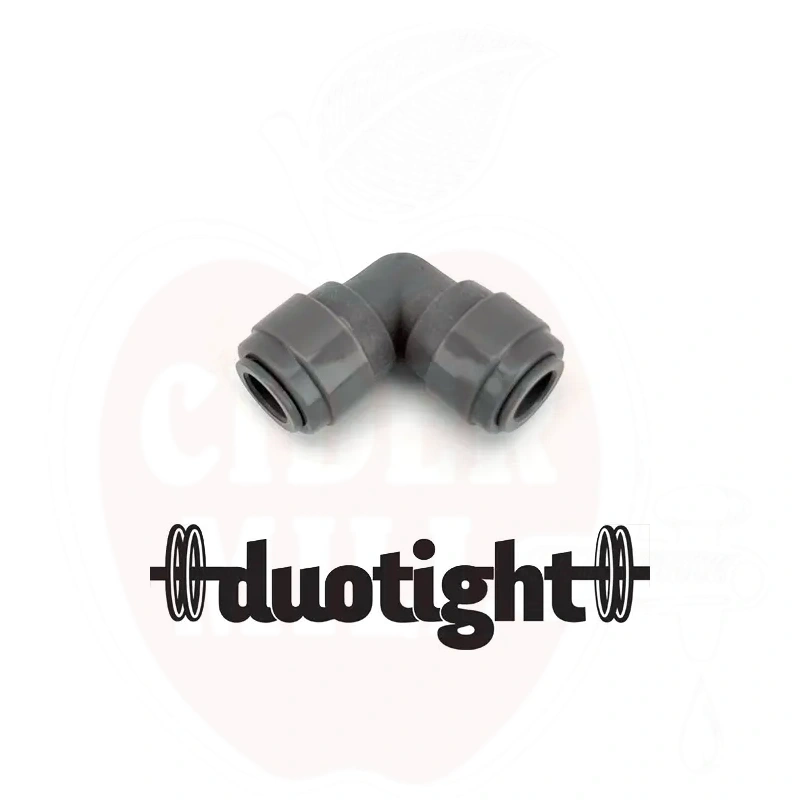

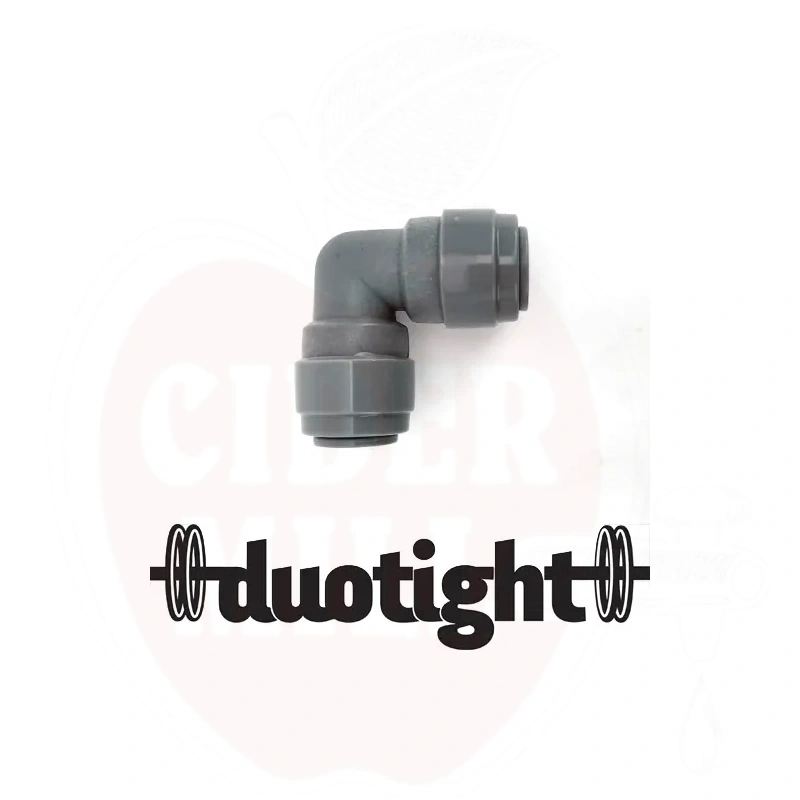

Quick connector 8mm angle Duotight
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 588616
Brand:
Unit: pc
Stock qty: 13
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
530,00 €/Kg
Files
Usage: Professional push-in fitting for beer and wine production lines. Designed for secure, leak-free connections in both gas and liquid applications up to 100 psi.

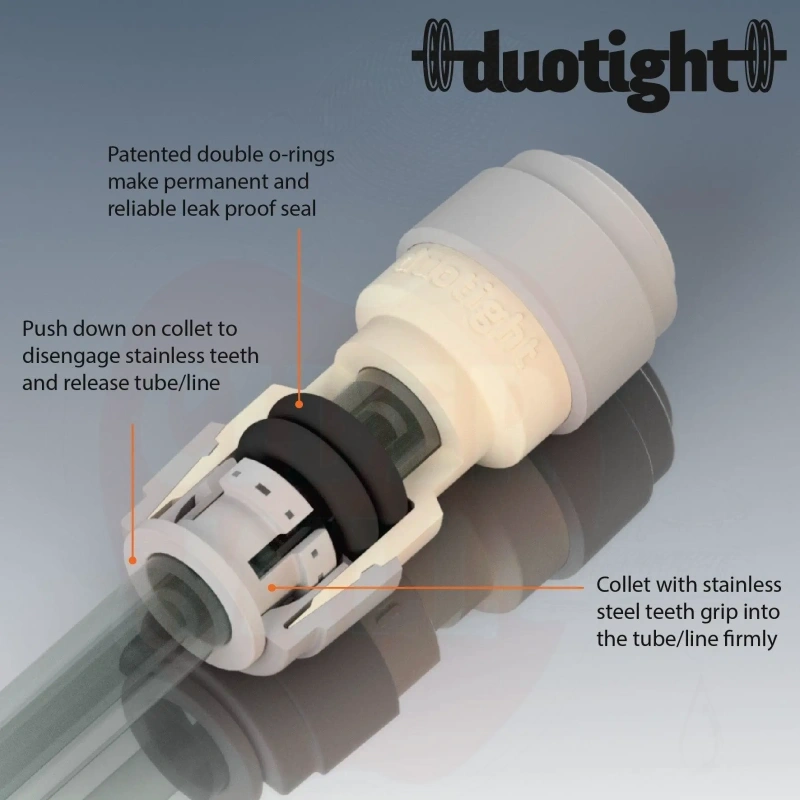

Features: Superior sealing with double EPDM o-ring system – twice the sealing surface of standard fittings. Allows tighter hose bending radius without leaks. No clamps required. Tool-free installation and removal – simply push in collet to disconnect.
Technical data: Compatible with EVABarrier 4mm ID x 8mm OD and 5mm ID x 8mm OD lines. Not compatible with 6mm ID x 10mm OD line. Maximum pressure: 100 psi. Material: EPDM (Ethylene Propylene Rubber) – excellent chemical resistance to ozone, oils, alkaline/acid compounds, water, alcohol, ketones. Food grade, BPA-free. Superior gas transmission rates and wear resistance compared to silicone/vinyl.
Warnings: Cut hose straight (not angled) for complete seal. Ensure correct hose size compatibility before installation.
| Weight (kg) | 0.010000 |
| High (m) | 0.03 |
| Width (m) | 0.045 |
| Length (m) | 0.02 |
