distilling unit 95l electric

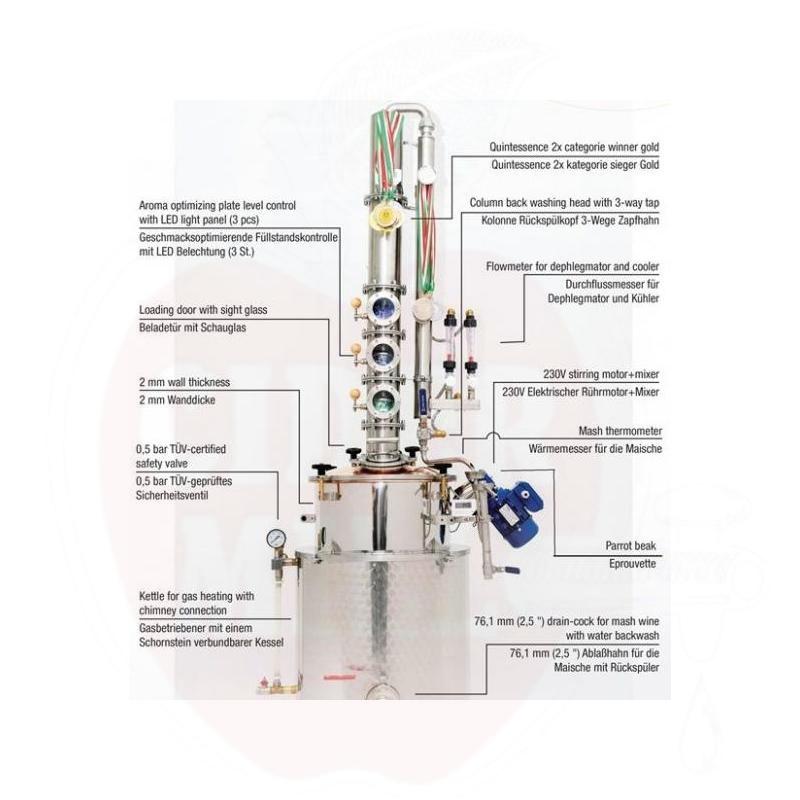

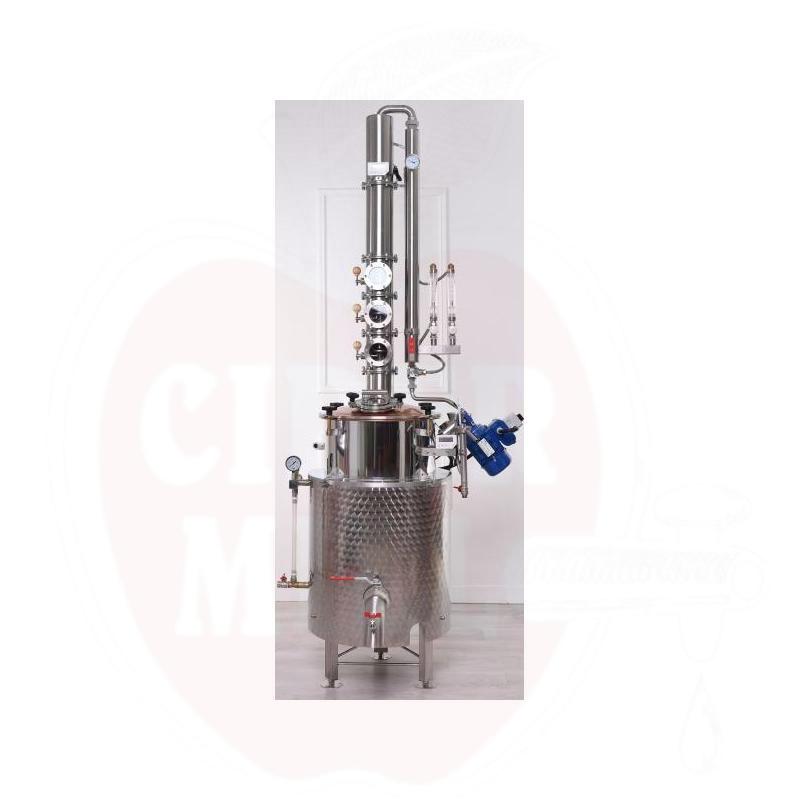

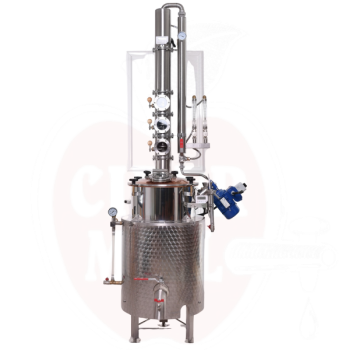

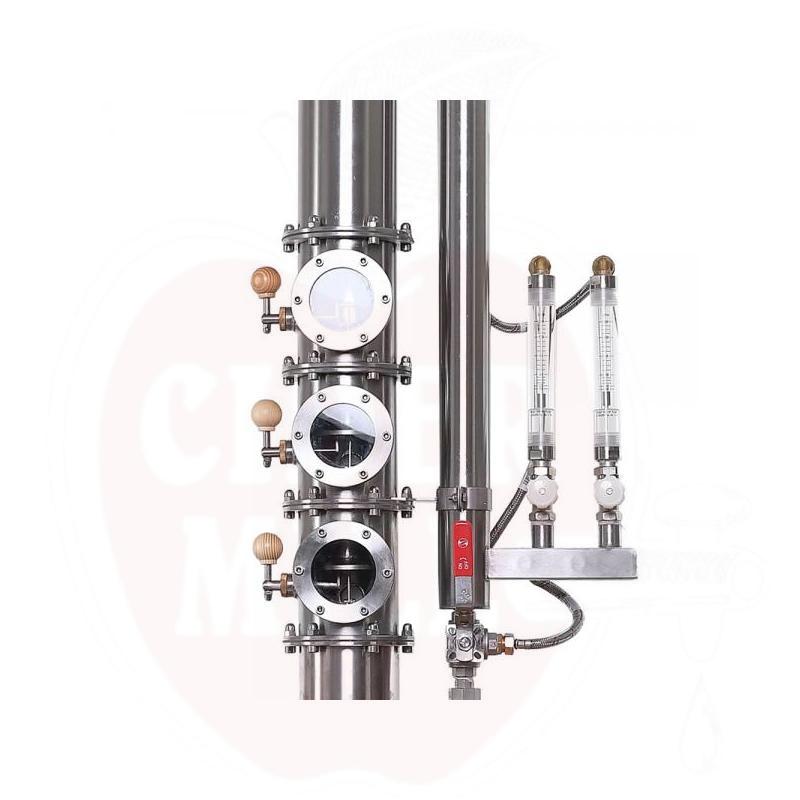

Professional Distillers 100-200 Liters We offer quality distillation equipment with capacities of 100L, 150L, 170L, and 200L. The fully automatic system eliminates the need for secondary distillation. Technical Features: Single, double, or triple-stage distillation blocks, deflectors with catalyst installation capability, built-in washing system, DN 100 sight glasses with lighting, stainless steel construction, 4-inch discharge valve. Heating Systems: Gas burner (natural gas/propane-butane): 40-75 kW/h, electric heating: 21-40 kW/h, solid fuel (wood), combined heating system available. Technical Dimensions: Height: 3100 mm (3300 mm with catalyst), installation space: 2000 x 2800 mm, block width: 2800 mm, filling port diameter: 250 mm. Performance and Benefits: 50% faster distillation process, 30% higher production volume, low water consumption for cooling, easy to use, higher distillate quality and purity, more intense aroma profile, energy-efficient operation mode. Available Accessories: Automatic cooling control thermostat, gas burners for different fuel types, digital thermostat for electric heating, copper wire or ceramic bead catalyst, integrated lighting system, steam mixing system, motorized mixture mixer, heat exchanger.

Professional Essential Oil Extractor 120L - Stainless Steel High-quality essential oil extractor consists of two main components: 120L heating tank and 25L cooling tank, both made from durable 18/10 AISI 304 stainless steel. Heating Tank Technical Specifications: Capacity: 120 liters, Inner diameter: 500 mm, Height: 750 mm, Wall/bottom thickness: 1.2 mm, Equipped with removable internal filter and clamp closure, Integrated analog thermometer and safety valve, Mirror-polished interior finish. Cooling Tank Specifications: Capacity: 25 liters, Inner diameter: 302 mm, Height: 365 mm, Wall thickness: 1 mm, bottom 1.5 mm, Equipped with cooling spiral and handles, Integrated water overflow pipette. Operating Instructions: Fill the heating tank with water up to the filter edge, Place plants in the filter, compacting evenly, Fill the cooling tank with cold water, Close the clamp lid and connect the cooling circuit pipe, Heat water to 100°C, Collect essential oil from the cooling tank pipette. Overall dimensions: 1200x540x870 mm.

Professional Water Distiller 750W - Pure Water at Home and Office. Powerful 750W heating element ensures pure distilled water production at a rate of 1 liter per hour (24 liters per day). The device effectively removes solids and organic compounds from water. Digital control panel allows temperature regulation between 30-108°C. Safe operation is ensured by dry-burn protection that activates at 115°C and automatic shutdown at 150°C. Adjustable timer (0-99 hours) enables precise temperature control during distillation. For 4-liter capacity, a 3.5-hour cycle is recommended to prevent limescale formation. Food-grade 304 stainless steel in all water components, 3.9-liter silicone-coated glass carafe, four-blade aluminum fan, SUS 304 condensation coil. Ideal for use in homes, offices, laboratories, dental clinics, essential oil production. Package includes cleaning powder and 3 replaceable carbon filters. Technical Specifications: Power: 750W, Voltage: 220V, Operating temperature: 30-108°C, Tank capacity: 4L, Productivity: 1L/h, Dimensions: 235 x 385mm, Weight: 3.58kg.

Copper Prismatic Springs for Distillation Columns - 0.25L High-quality prismatic copper springs are specially designed for efficient filling of distillation columns. The springs have a capacity of 0.25 liters and ensure optimal heat exchange. Technical Specifications: Wire diameter: 0.30 mm Spring diameter: 4-5 mm Spring length: 4-6 mm Distillation Column Packing Material Properties: Prismatic springs offer maximum surface-to-volume ratio, ensuring efficient heat exchange from the boiler to the evaporator. To achieve quality distillate (93%), it is recommended to install 6-8 theoretical layers, where one layer height is approximately 2 cm. Usage Instructions and Recommendations: For higher purity distillate, use at least 40 theoretical layers Wash springs thoroughly before first use Consider the properties and purity of the source material during distillation Note! According to Estonian legislation, the use of distillation equipment for alcohol production is not permitted. Equipment use is at user's own risk.

Portuguese Handcrafted Copper Still 40L This beautiful handcrafted copper still is made from high-quality 1.3mm thick copper. Created by Portuguese craftsmen, this device is an ideal choice for both home distillation and small-scale production. Technical specifications of the still: Container capacity: 40 liters Body height: 70 cm Width: 77 cm Depth: 40 cm Copper thickness: 1.3 mm Device weight: 10.5 kg This is a handcrafted product, therefore the dimensions and weight of each still may vary slightly. Each device is unique and carries the long-standing traditions and skills of Portuguese craftsmen. The durable copper body ensures optimal heat conductivity and long service life. This traditional still is perfect for distilling various liquids, providing quality results with every use.

AABRATEK OVM/LM DESTILLAATOR VAATEKLAASIGA. KEG mahuti mahuga 50 või 30 liitrit koos elektriliste küttekehadega: 2+2kW 50L mahuti puhul ja 2+1,5kW 30L mahuti puhul, koos katte ja juhtmestikuga. Komplektis on äravooluklapp ja bimetall termomeeter. Mahutid on isoleeritud Armaflex kummivahuga. Komplekti kuulub kaks elektroonilist paneeltermomeetrit, mis mõõdavad temperatuuri täpsusega 0,1°C ja uuendussagedusega 1s. SMS-ühendused. Roostevabast terasest gofreeritud radiaator 3m. Liebigi jahuti koos ½-tollise kuulklapiga, mis on paigaldatud 20-25cm alla kolonni täitmise ülaosa. Jahuti kogupikkus on umbes 70cm, kondensaator 12mm vee mantlis 25mm. 360° taskulambi tüüpi vaateklaas. Täppis-ventiil peas. Termomeetrid: pea, 10. riiul, mahuti (bimetall). Termomeetri andurid on paigaldatud roostevabast terasest toruümbristesse, andur silikoon-tihendiga. Kolonn 60,3mm x 110cm, kolonni täidis: roostevabast terasest prismakujulised vedrud. Vaskne katalüsaator, umbes 22 cm pikk, täidetud vase vormis prismakujuliste vedrude kujul, kinnitatud mahutile SMS-ühendusega. Vase täidis neelab väävliühendeid, mis parandab oluliselt destillaadi maitset ja aroomi. Vase täidist tuleks puhastada sidrunhappe lahuses iga 2-4 protsessi järel. Vähendatud VM kogumine - võimaldab meil koguda suuremaid ja parema kvaliteediga destillaadi südameosi, lisaeeliseks on hästi jahutatud destillaat ja seega on kontsentratsioonimõõtmised usaldusväärsemad. Äravooluklapp. Kogu komplekti kõrgus on umbes 225cm. Komplekt on valmistatud AISI 304/316 roostevabast terasest. SILIKOON/EPDM tihendid. Elemendid on keevitatud TIG meetodil Argoni kaitse all. Pärast keevitamist on elemendid happega puhastatud sukeldamise teel. Kontsentratsioon pärast esimest destilleerimist 95-96%, ilma langusilmata - saavutame sama protsendi kogu protsessi vältel. Üks destilleerimine on piisav kvaliteetse destillaadi saamiseks, teine destilleerimine pole vajalik. Tänu täppis-ventiili kasutamisele on refluksi reguleerimine väga lihtne. Tootlikkus umbes 20-25ml/min. Nurga all oleva radiaatori kasutamise tõttu on komplekt madalam ja käepärasem. Lihtne kasutada isegi algajatele. Stabiilne seadme töö ilma üleliigse elektroonikakontrollita. SMS-ühenduste ühilduvuse tõttu on komplekti võimalik igal ajal laiendada. Destillaator on seade, mis võimaldab vedeliku aurustumisel ja tagasi kondenseerimisel eraldada erinevaid komponente nende keemispunktide erinevuste alusel. Alkoholi destilleerimisel kuumutatakse kääritatud vedelikku, aurustunud alkohol kogutakse jahutussüsteemi abil ja kondenseeritakse kõrge kvaliteediga puhta alkoholiks. See protsess eemaldab ebapuhtused ja annab kõrgema alkoholisisaldusega destillaadi.

This accessory allows the retort to obtain an accurate and stable distillate reading at the condenser outlet by enabling the installation of an alcoholometer. This is an essential element in distillation when you want to accurately monitor the alcohol content of the distillate in real-time. The device attaches to the cold part output of the distiller, which directs the controlled flow of distillate, which in turn allows the alcoholometer to provide readings. This tool helps achieve more consistent quality distillate by enabling more precise control process. Usage is simple - attach hermetically to the condenser outlet and place the lower end of the alcoholometer above the spout outlet. This way you can continuously monitor the strength of the distillate without interrupting the distillation process.
