Carbonisator, cooler Soda PYGMY 25
Professionals recommend - producers prefer!
EAN: 2000000049212
Brand:

Unit: pc
Stock qty: On special order
Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.

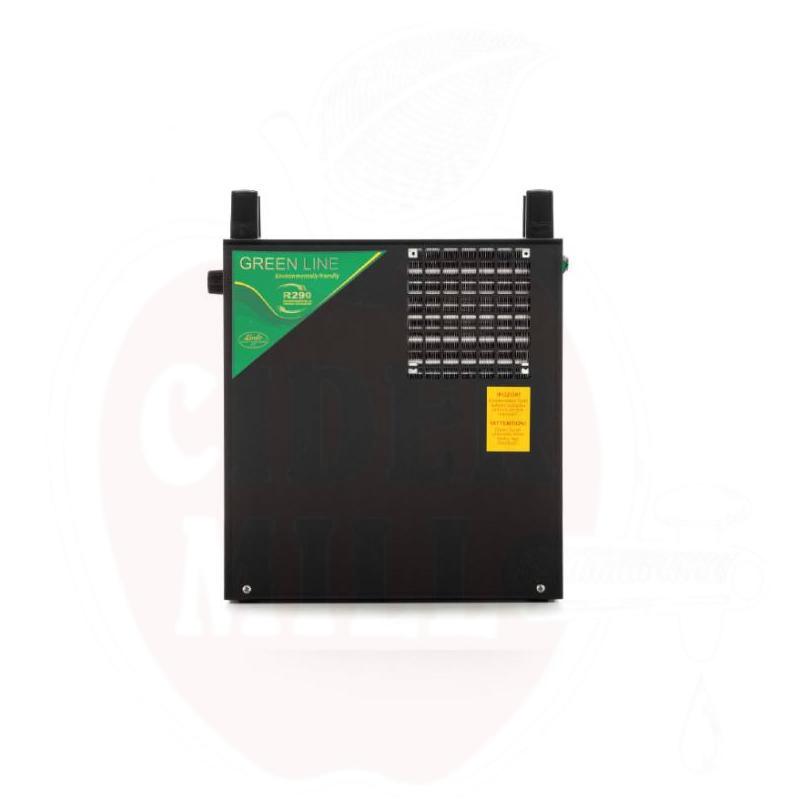

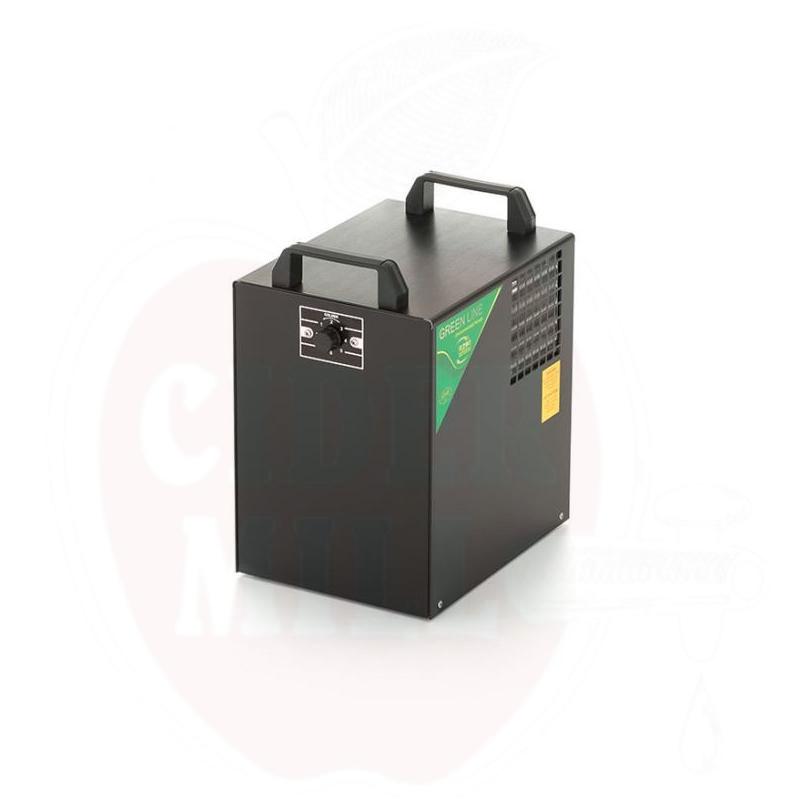

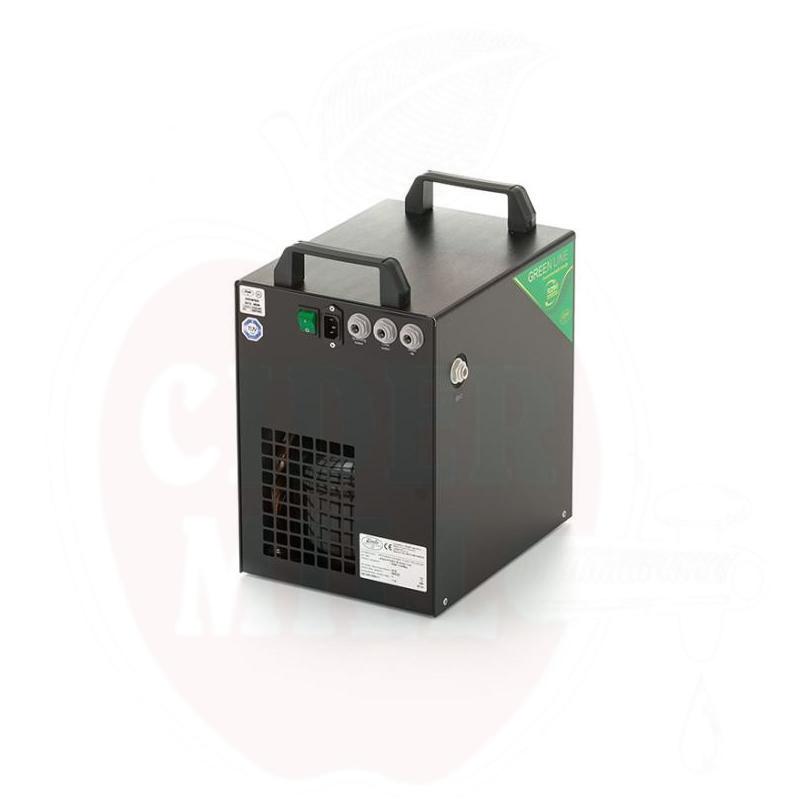

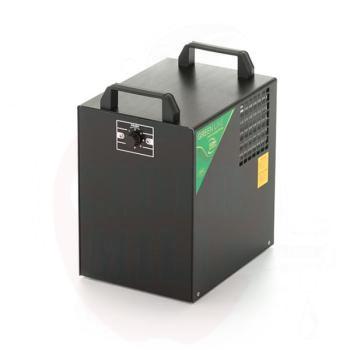

SODA PYGMY 25 GREEN LINE - Professional Carbonated Water Maker
SODA PYGMY 25 GREEN LINE is an efficient and environmentally friendly carbonated water maker that produces chilled soda water by mixing H2O and CO2. The device is ideal for under-counter installation and connection to a bar tower or external tap.
Main advantages:
- Productivity: up to 25 liters of perfectly chilled soda water per hour
- Modern design and easy maintenance
- Ergonomic handles for safe handling
- Precise temperature control with thermostat
Eco-friendly technology:
GREEN LINE technology uses environmentally friendly refrigerant R-290 and an innovative energy-saving system. The result is 20% greater energy efficiency and lower energy consumption.
Technical specifications:
- Compressor power: 1/8 HP
- Cooling capacity: 310W
- Continuous cooling: 20 L/hour
- Carbonated water output: 20-25 L/hour
- Cooling coil length: 10.5 m
- Power: 391W
- Weight: 17 kg
- Power supply: 220-240V 50Hz
SODA PYGMY 25 GREEN LINE is perfectly suited for use in offices, restaurants, and manufacturing facilities, offering an optimal ratio of performance, quality, and dimensions.
Keywords: carbonated water maker, soda water device, pygmy green line, eco-friendly beverage device, carbonated water machine, bar equipment, beverage cooler, energy-efficient beverage device
Weight (kg) | 0.000000 |
High (m) | 0 |
Width (m) | 0 |
Length (m) | 0 |
795,00 €
1095,00 €
Unlike many other portable beer cooling boxes, this model is equipped with a quality cooling box. This is a rotomolded cooling box with high-density PU insulation that can keep ice in the cooler for several days. With a built-in bottle opener, drink holders, and a fisherman-friendly ruler, it's the best available on the market.
The unit's cooling plate is made from new high thermal conductivity aluminum, while taps, shanks, and other parts are made of stainless steel.
Often, other portable cooling systems are made with stainless steel coils. These are cheaper to produce, but cast aluminum cooling plates have high thermal mass, acting like a large heat sink and helping transfer heat more efficiently. Another advantage of cast aluminum cooling plates is that they are compact and allow more free space in the cooler, so you can place other drinks above the cooling plate.
If you're looking for a commercial-grade portable cooling box that will last a lifetime, this is what you need.
This kit includes: 1 x 35L Jeti Fundra cooler, 2 x Nukatap FC Gen2 taps, 2 x stainless steel long shank with Duotight fittings, 2 x black plastic tap handles (long slender type), 4 x Duotight 8mm elbow fittings, 1 x 5mm x 8mm EVABarrier beer line, 4 x Duotight 8mm x FFL fittings
The cooling box has all holes pre-drilled for your convenience. You just need to push the hoses together, tighten a few nuts, and you're ready to pour drinks.
NOTE: Kegs and connectors must be purchased separately.
INSTRUCTIONS: 1. Connect the kegs to the beer inlet lines of the cooler. Fill the cooling plate with beer. It's important to fill the cooling plate tubes with beer FIRST. If there's water in the tubes and you then put very cold ice on the cooling plate, the water in the tubes might freeze, blocking fluid flow. So ensure there's beer in the tubes, as full-strength beer freezes at 4°C lower than water. 2. Fill the cooler with ice. For best results, THE ICE MUST BE IN CONTACT with the aluminum cooling plate. To ensure ice contact with the cast aluminum, leave the cooler drain open so water can drain out. If you leave water in the cooler, the ice will eventually float and lose contact with the cooling plate. 3. Set the regulator to about 30 psi. This high pressure is necessary to push the beer through the cooling plate, which has significant tube resistance.
NOTE: If your kegs are cold and you're using CO2 for dispensing, remember that extended periods at elevated pressure can over-carbonate the beer. If your kegs are at room temperature, this shouldn't be an issue as CO2 doesn't readily dissolve in warm beer. However, if you do have cold kegs and are dispensing at elevated pressure, you might consider using either pure nitrogen or a CO2/nitrogen mix for dispensing. Alternatively, if you're only dispensing at elevated pressure for a few hours, this usually isn't long enough for the beer to over-carbonate.
