Beverage chiller & carbonator Benchy 3.2L without taps, 240V
Professionals recommend - producers prefer!
EAN: 20000000542399
Brand:

Unit: pc
Stock qty: On special order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.
Beverage cooler & carbonator Benchy 3.2L without taps, 240V
Benchy Sparkling - countertop/undercounter carbonator/cooler is the simplest way to install a sparkling water system. No ice needed, just connect the device to power, fill with glycol, connect water supply and immediately enjoy carbonated water.
Benchy Sparkling is a solution that provides instantly chilled and carbonated water as needed. Simply connect the water supply and CO2 cylinder to the device and get unlimited sparkling and chilled water from the tap.
Our Benchy product series is far superior to other market devices in terms of price, ease of use, and flexibility. Using the regulator, you can adjust the carbonation level to your taste, which cannot be done with other similar systems on the market. This device is also significantly more affordable and easier to install.
To operate, simply:
1. Connect to power
2. Fill the internal water tank
3. Connect water supply
4. Connect CO2 cylinder
5. Dispense chilled sparkling water
It's that simple, and you can enjoy chilled sparkling water in less than an hour after installation, with rapid cooling.
Ensure the device is installed and used according to the user manual found under additional information.
Fully adjustable - Benchy Sparkling has an integrated digital temperature controller allowing temperature control from 0.5°C to 10°C. You can also adjust carbonation levels from 0.5 volumes to over 5 volumes for extra sparkling water.
Cooling capacity - Benchy Sparkling can cool approximately 20-30 liters of sparkling water per hour (assuming ambient water and air temperature of 20°C). To increase device capacity, you can pre-cool mains water using either a refrigerated container (keg) or G40 cooler. Pre-cooling mains water can more than double Benchy Sparkling output.

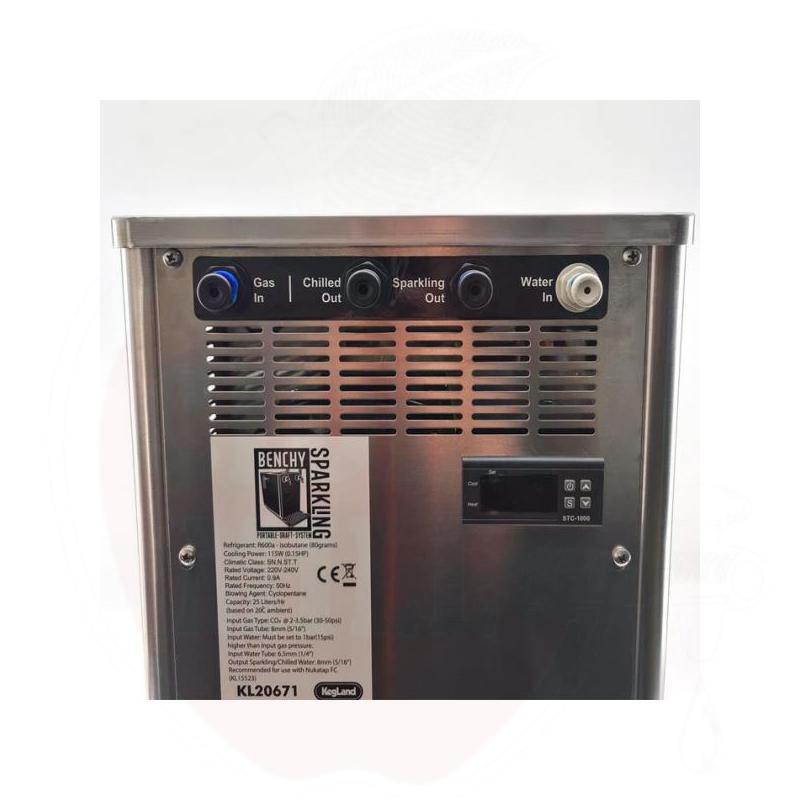

Technical specifications:
Height: 465 mm
Width: 290 mm
Depth: 520 mm (excluding sight glass which can be removed)
Refrigerant: r600a - (80 grams)
Cooling power: 600 watts
Power consumption: 155 W (standby power consumption less than 5 watts)
Capacity: approximately 25 L per hour (assuming 20°C ambient temperature)

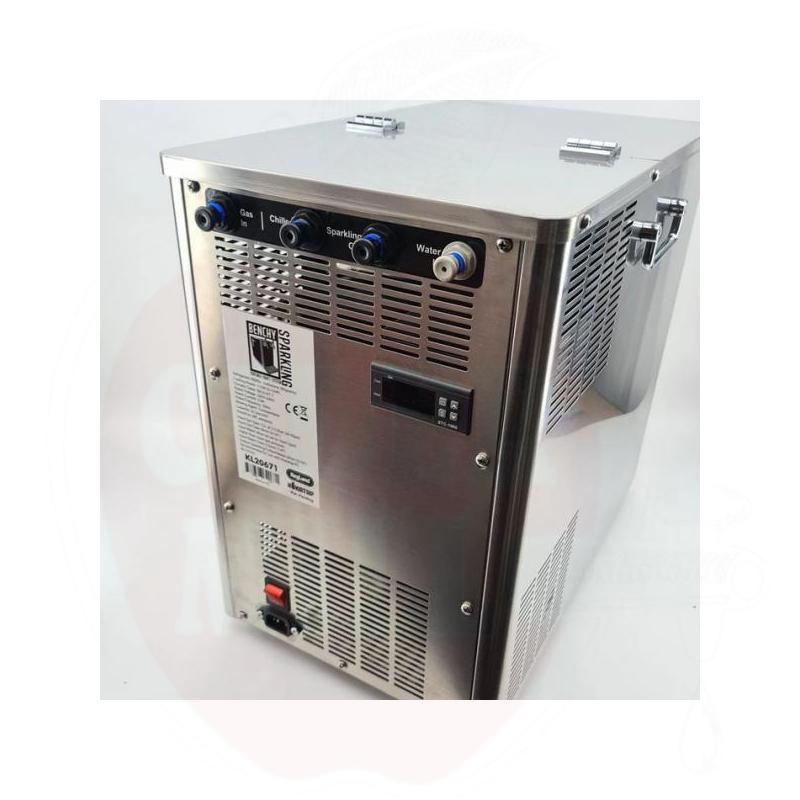

Gas input: CO2 @ 2-3.5 bar (8 mm (5/16) OD tube)
Water input: Must be 1 bar (15 psi) higher than gas pressure (6.35 mm (1/4") OD tube)
Sparkling/chilled water output: 8 mm (5/16") OD tube
NOTE: Nukatap FC taps are sold separately for countertop installation.
General operating principle: The device cools and carbonates tap water, creating delicious sparkling water without the need to buy or carry bottles. Suitable for both home and small business use, providing freshly carbonated water as needed.
Weight (kg) | 0.000000 |
High (m) | 0.52 |
Width (m) | 0.29 |
Length (m) | 0.465 |
1095,00 €
1095,00 €
1095,00 €
849,00 €
Unlike many other portable beer cooling boxes, this model is equipped with a quality cooling box. This is a rotomolded cooling box with high-density PU insulation that can keep ice in the cooler for several days. With a built-in bottle opener, drink holders, and a fisherman-friendly ruler, it's the best available on the market.
The unit's cooling plate is made from new high thermal conductivity aluminum, while taps, shanks, and other parts are made of stainless steel.
Often, other portable cooling systems are made with stainless steel coils. These are cheaper to produce, but cast aluminum cooling plates have high thermal mass, acting like a large heat sink and helping transfer heat more efficiently. Another advantage of cast aluminum cooling plates is that they are compact and allow more free space in the cooler, so you can place other drinks above the cooling plate.
If you're looking for a commercial-grade portable cooling box that will last a lifetime, this is what you need.
This kit includes: 1 x 35L Jeti Fundra cooler, 2 x Nukatap FC Gen2 taps, 2 x stainless steel long shank with Duotight fittings, 2 x black plastic tap handles (long slender type), 4 x Duotight 8mm elbow fittings, 1 x 5mm x 8mm EVABarrier beer line, 4 x Duotight 8mm x FFL fittings
The cooling box has all holes pre-drilled for your convenience. You just need to push the hoses together, tighten a few nuts, and you're ready to pour drinks.
NOTE: Kegs and connectors must be purchased separately.
INSTRUCTIONS: 1. Connect the kegs to the beer inlet lines of the cooler. Fill the cooling plate with beer. It's important to fill the cooling plate tubes with beer FIRST. If there's water in the tubes and you then put very cold ice on the cooling plate, the water in the tubes might freeze, blocking fluid flow. So ensure there's beer in the tubes, as full-strength beer freezes at 4°C lower than water. 2. Fill the cooler with ice. For best results, THE ICE MUST BE IN CONTACT with the aluminum cooling plate. To ensure ice contact with the cast aluminum, leave the cooler drain open so water can drain out. If you leave water in the cooler, the ice will eventually float and lose contact with the cooling plate. 3. Set the regulator to about 30 psi. This high pressure is necessary to push the beer through the cooling plate, which has significant tube resistance.
NOTE: If your kegs are cold and you're using CO2 for dispensing, remember that extended periods at elevated pressure can over-carbonate the beer. If your kegs are at room temperature, this shouldn't be an issue as CO2 doesn't readily dissolve in warm beer. However, if you do have cold kegs and are dispensing at elevated pressure, you might consider using either pure nitrogen or a CO2/nitrogen mix for dispensing. Alternatively, if you're only dispensing at elevated pressure for a few hours, this usually isn't long enough for the beer to over-carbonate.
