1000L Maceration Tank with 10° Conical Bottom, Stainless Steel
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 2000005435058
Unit: pc
Stock qty: On special order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.
Price:
2180,00 €

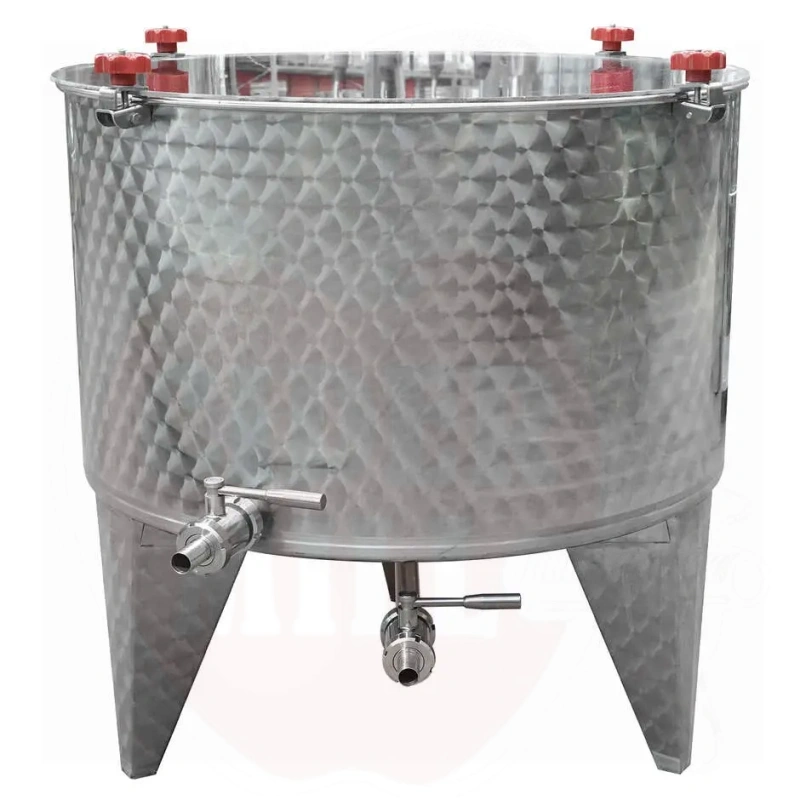

Maceration tank 1000l 10° conical bottom, stainless steel
This product is ideal for macerating fruits and food products (such as nuts, cherries, sour cherries, chestnuts, dried fruits) that require light during the processing. Thanks to the transparent lid, light enters the tank while protecting the product from dust and bacteria.
The tank is entirely made of AISI 304 (18/10 food grade) stainless steel and features a transparent lid made of Lexan polycarbonate - an extremely impact-resistant material that doesn't shatter or break. This Lexan offers the same transparency as glass but is significantly lighter and resistant to high temperatures.
The tank has a partial outlet on the cylinder and a complete outlet at the bottom, allowing easy emptying and cleaning. Three 40 cm high stainless steel legs ensure perfect stability.
The stainless steel tank is also an essential accessory in wine production.
Usage: The maceration tank is used for soaking food products (especially fruits, berries, nuts) to better extract their flavors, aromas, colors, and other components. Maceration is a process where raw material is soaked in liquid to extract desired components.
Features:
- Tank material: Stainless steel AISI 304
- Lid material: Polycarbonate Lexan
- 10° conical bottom with reinforcements
- Complete outlet with DIN 32 stainless steel ball valve DIN32 M x DIN32 F
- Partial outlet with DIN 32 stainless steel ball valve DIN32 M x DIN32 F
- 2 straight hose connections for connecting pipes DIN32 Mx PG30
- 3 stainless steel legs
- 4 stainless steel hooks for lid fastening

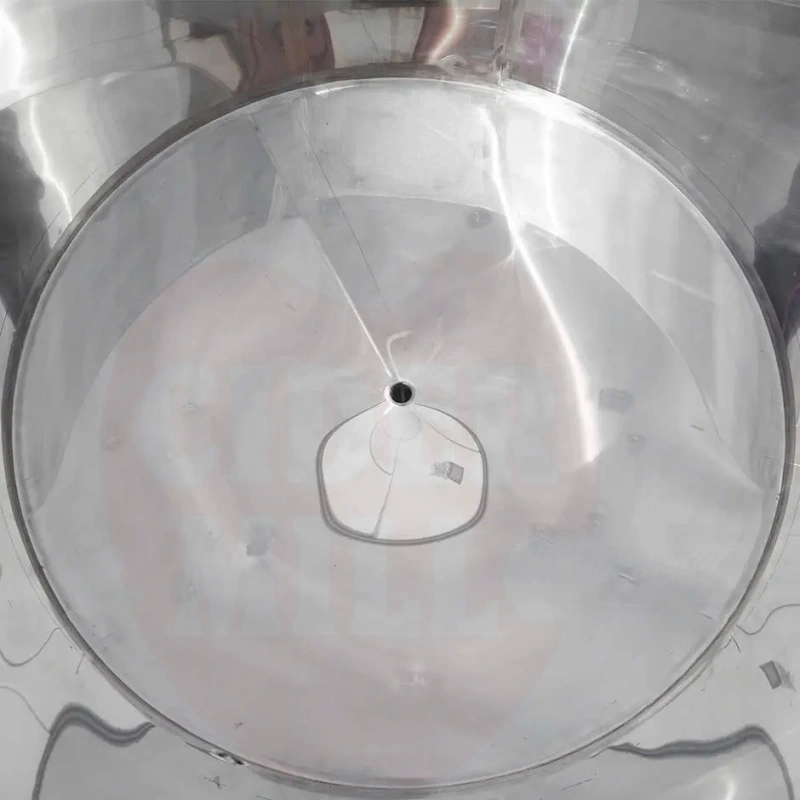

- Interior surfaces: mirror-polished for easy cleaning and disinfection
- Exterior surfaces: roughened, with satin-finished welds
Dimensions:
- Diameter: 1270 mm
- Cylinder height: 750 mm
- Leg height: 400 mm
- Total height with legs and crossbar: 1150 mm
Thicknesses:
- Walls: 1.2 mm
- Bottom: 1.5 mm
- Lid: 6 mm
Keywords: maceration tank, stainless steel, conical bottom, food processing, winemaking, fruit maceration, AISI 304, transparent lid, Lexan polycarbonate, berry processing, food industry, 1000l tank, liquid filtration, extraction, soaking vessel
