Maceration Tank 500l 10° Conical Bottom, Stainless Steel

SKU: 2033
EAN: 2000005435041
Unit: pc
Stock qty: On special order

Price:
1640,00 €
Qty.: - +
   - or -

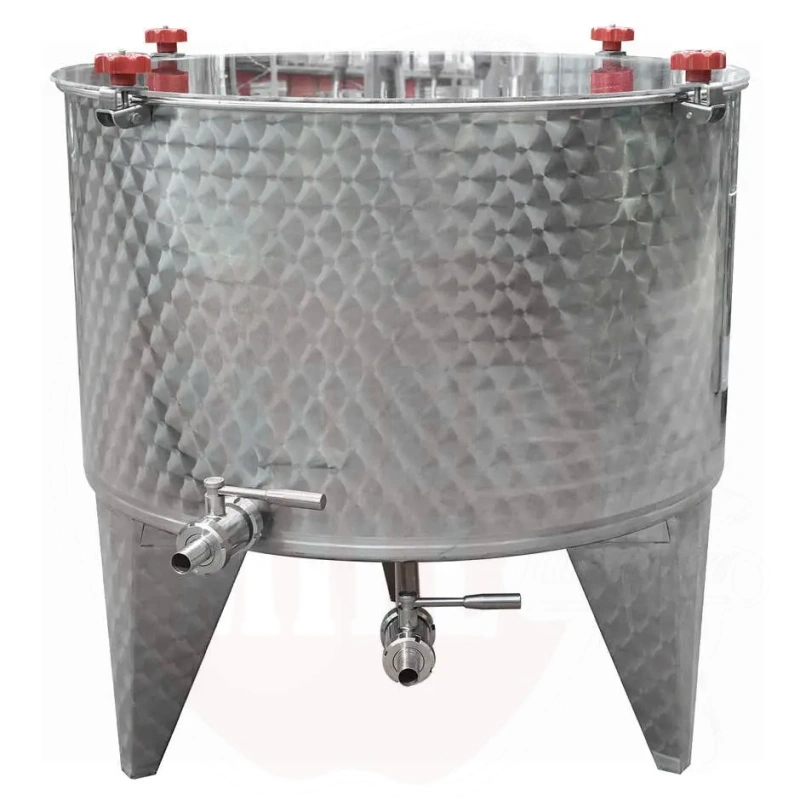

Maceration tank 500l 10° conical bottom, stainless steel

Perfect solution for macerating fruits and food products that require light during processing. Light enters the tank through the transparent lid while protecting the product from dust and bacteria. Excellent for processing nuts, cherries, sour cherries, chestnuts, dried fruits, and other food products.

The tank is made entirely of AISI 304 (18/10 food grade) stainless steel and equipped with a transparent Lexan polycarbonate lid. Lexan is an extremely impact-resistant material that doesn't shatter or break. It offers the same transparency as glass but is significantly lighter and resistant to high temperatures.

The tank has a partial outlet on the cylinder and a complete outlet at the bottom, allowing for easy emptying and cleaning. Three 40 cm high stainless steel legs ensure perfect stability.

The stainless steel tank is also an essential accessory in wine production.

Features:
- Tank material: Stainless steel AISI 304
- Lid material: Polycarbonate Lexan
- 10° conical bottom with reinforcements

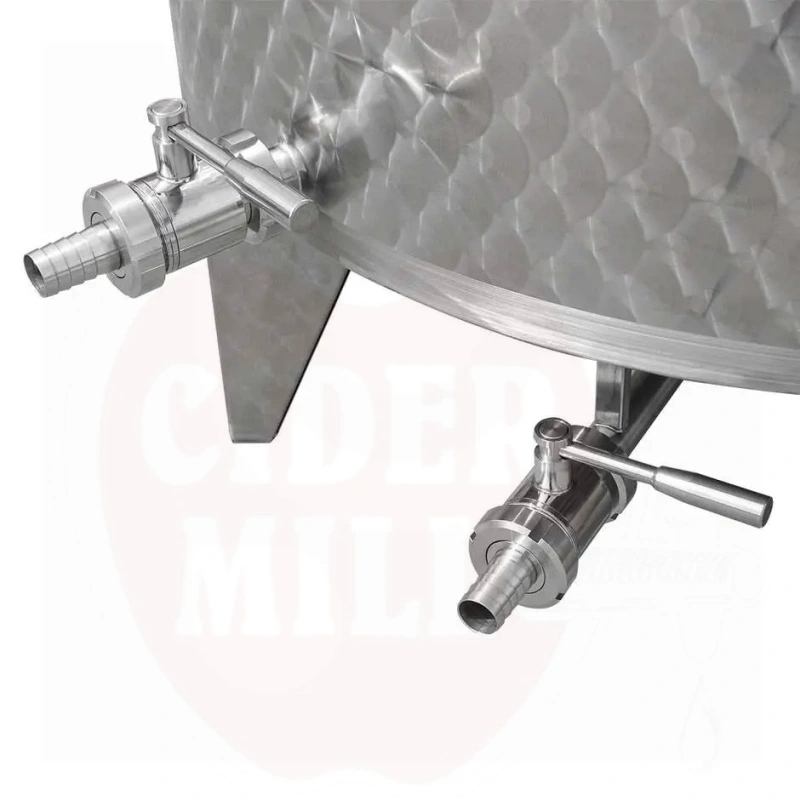

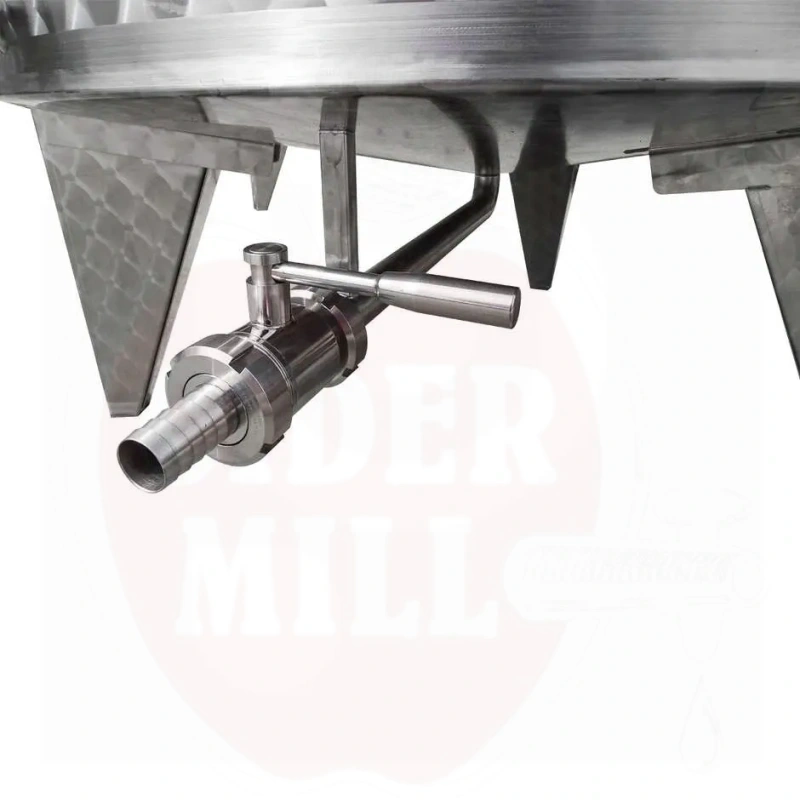

- Complete outlet with DIN 32 stainless steel ball valve DIN32 M x DIN32 F
- Partial outlet with DIN 32 stainless steel ball valve DIN32 M x DIN32 F

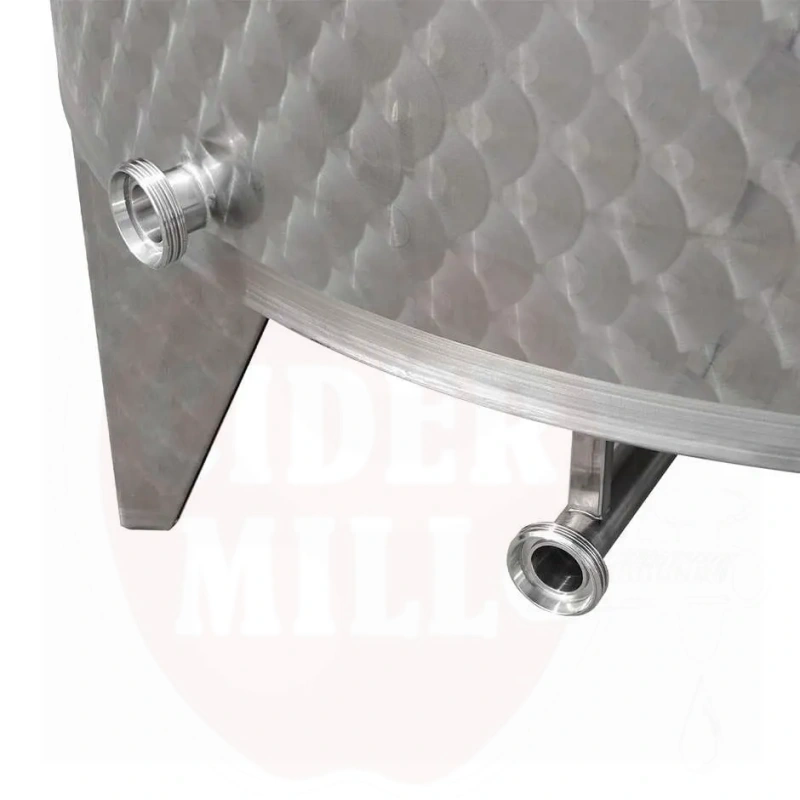

- 2 straight hose connections for connecting pipes DIN32 Mx PG30
- 3 stainless steel legs

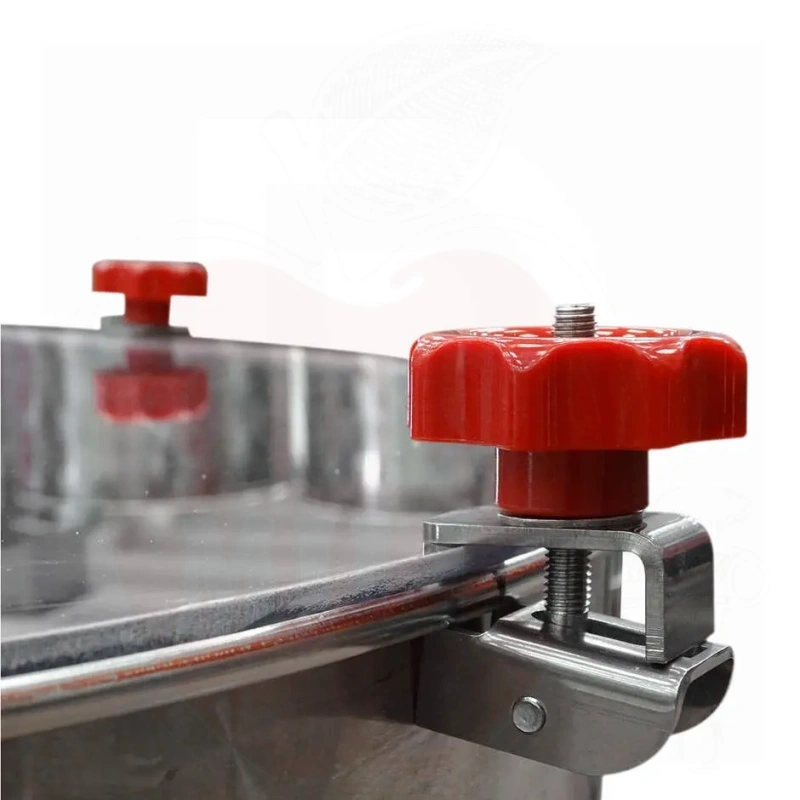

- 4 stainless steel hooks for lid fastening

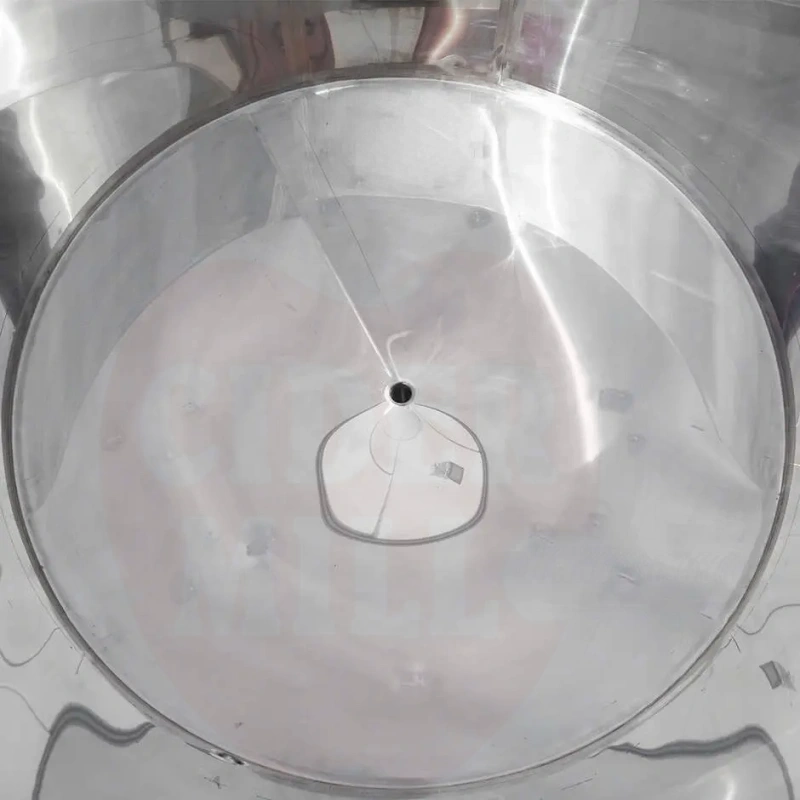

- Interior surface: mirror polished for easy cleaning and disinfection
- Exterior surface: imitated, with satin welding seams

Dimensions:
- Diameter: 1025 mm
- Cylinder height: 625 mm
- Leg height: 400 mm
- Total height including legs and cross bars: 1025 mm

Thickness:
- Walls: 1.2 mm
- Bottom: 1.5 mm
- Lid: 6 mm

Operating principle: The maceration tank enables the maceration or soaking of fruits and other food products to extract aromatic compounds, colors, and other desired components. The transparent lid allows process monitoring and ensures necessary light access while protecting the product from the external environment.

Keywords: maceration tank, stainless steel tank, food processing, maceration, conical bottom tank, wine production equipment, AISI 304 tank, Lexan lid tank, fruit processing, food industry equipment, juice production equipment, berry processing, fermentation.

Weight (kg) 0.000000
High (m) 1.025
Width (m) 1.025
Length (m) 1.025
