Washing system CIP 50
.png){kind=small}
Professionals recommend - producers prefer!
Brand: Polsinelli
Unit: pc
Stock qty: Pre-order
Delivery time (day): 14-60
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.

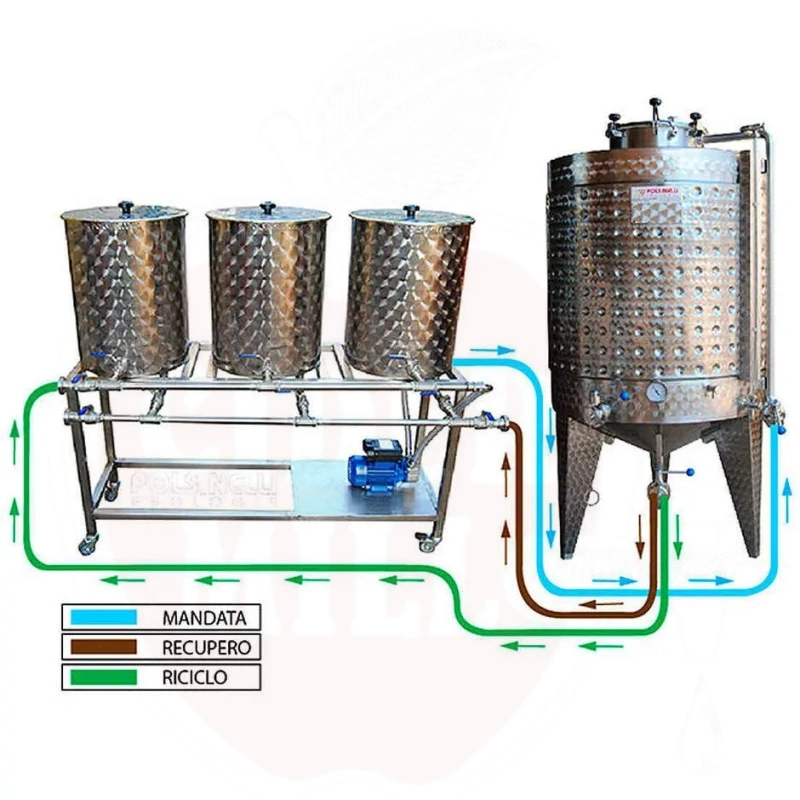

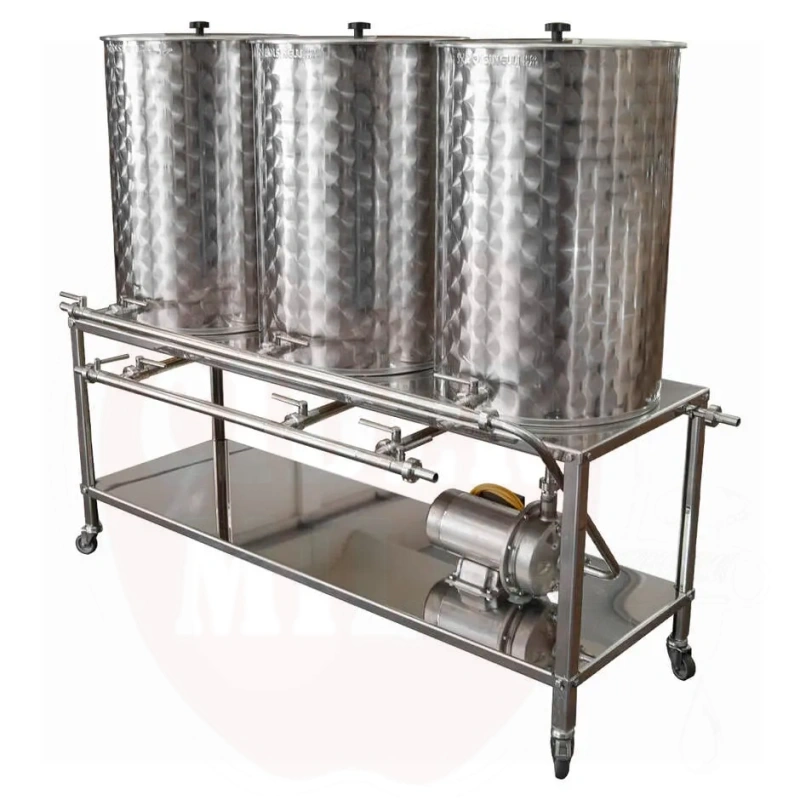

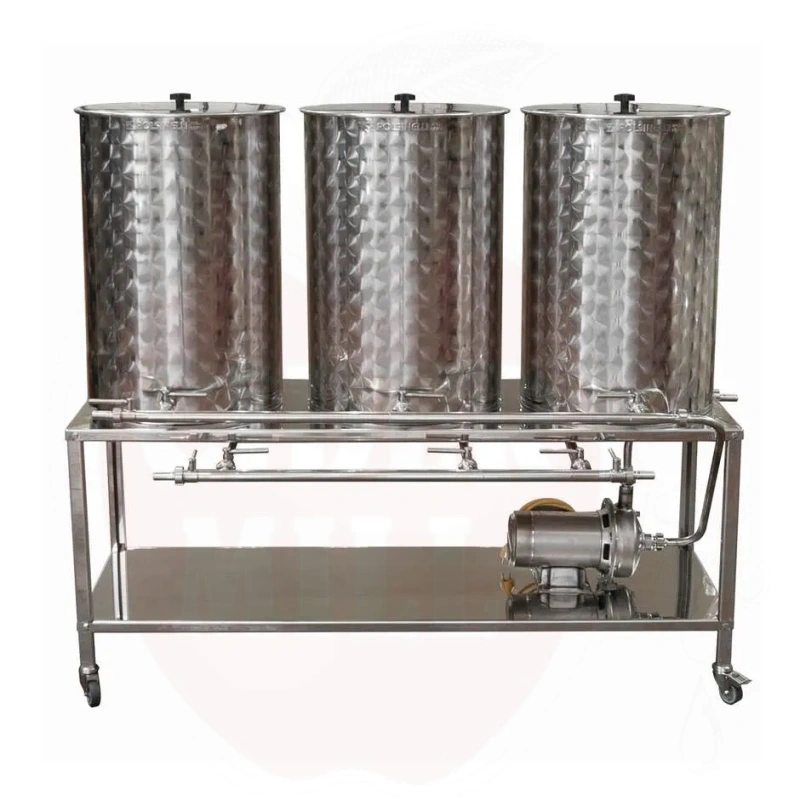

Use: Designed for automatic cleaning of brewing equipment and fermenters, the CIP washing system features 3 x 50-liter stainless steel tanks on a robust, mobile chassis. Suitable for removing organic and inorganic contamination using a recycling process, this system facilitates cleaning without disassembly of pipes and tanks.

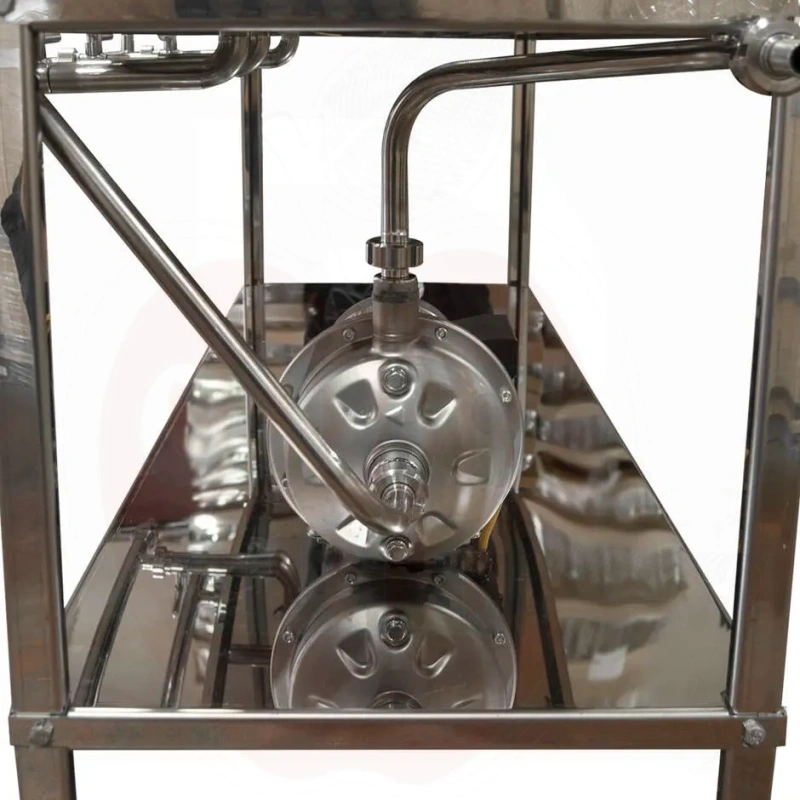

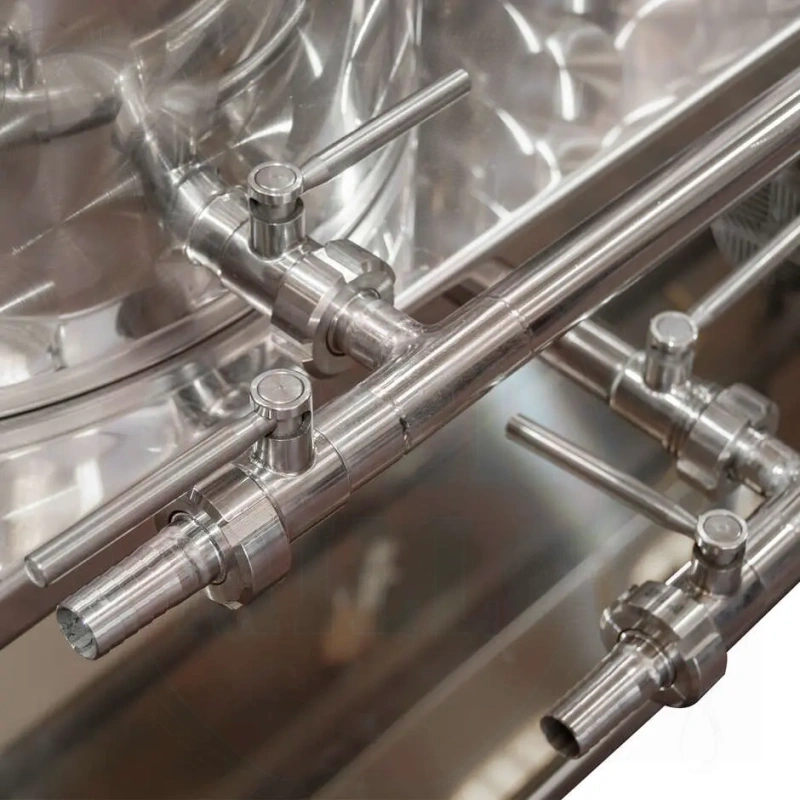

Features: Equipped with a stainless steel electrical pump (1.4 HP), single-phase 230/400V 50Hz supply, with a flow rate of 110 liters per minute. The system includes DIN 15 stainless steel valves and connectors, with an operating temperature up to 110°C. The tanks feature a bottom valve and a front valve (40mm from bottom) for efficient residue management. Compatible with alkaline and sanitizing solutions as well as water.
Technical data: Dimensions: 1285 x 400 x 1160mm.
Warnings: Always verify compatibility of cleaning solutions with materials, and follow proper safety procedures.
| application_area | industrial |
| automation_type | automatic |
| flow_rate | 6600 |
| material | stainless steel 18/10 |
| power_consumption | 1.4 kW |
| power_supply | 230/400V ±10% 50Hz SINGLE PHASE |
| tap_configuration | valve at the bottom and a front one 40 mm from the bottom |
| temperature_range | 110 |
| Weight (kg) | 0.000000 |
| High (m) | 1.16 |
| Width (m) | 0 |
| Length (m) | 1.285 |
