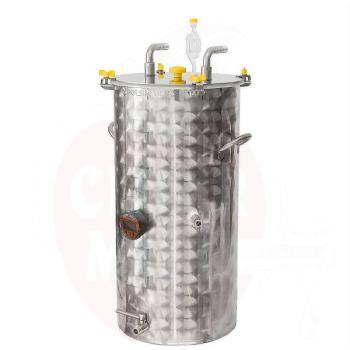

Refrigerated flat bottom fermenter 380 lt

Stainless steel legs for ⌀630 tank

Ideal accessory for the primary fermentation of food products that require oxygenation during this phase of production. Entirely made of Aisi 304 stainless steel (18/10 food grade), the tank is equipped with stainless steel legs and wheels to facilitate movement even when fully loaded during the production of wine, kombucha, cheese stretching, maceration and infusion of fruit and other foods. The tub is equipped with a total discharge valve, but upon request it is possible to customize it, adding other valves, themo-wells, doors and other accessories according to the customer's needs. Characteristics: Material: stainless steel 18/10 (AISI 304). Capacity: 700 L. 10° conical bottom. Total drain with 1'' stainless steel ball valve x ENO 30. Elbow with ENO plastic swivel 30 x Ø14. Stainless steel lid with knob. No. 3 wheels Ø 150 mm. Nr. 3 stainless steel box shaped legs  60x60 mm. Internal diameter: 930 mm. External upper edge diameter: 950 mm. Body height: 1000 mm. Total height with feet and cylinder: 1430 mm. Thickness: Walls: 1.2 mm. Bottom: 1.5mm.

Ideal accessory for the primary fermentation of food products that require oxygenation during this phase of production. Entirely made of Aisi 304 stainless steel (18/10 food grade), the tank is equipped with stainless steel legs and wheels to facilitate movement even when fully loaded during the production of wine, kombucha, cheese stretching, maceration and infusion of fruit and other foods. The tub is equipped with a total discharge valve, but upon request it is possible to customize it, adding other valves, themo-wells, doors and other accessories according to the customer's needs. Characteristics: Material: stainless steel 18/10 (AISI 304). Capacity: 500 L. 10° conical bottom. Total drain with 1'' stainless steel ball valve x ENO 30. Elbow with ENO plastic swivel 30 x Ø14. Stainless steel lid with knob. No. 3 wheels Ø 150 mm. Nr. 3 stainless steel box shaped legs  60x60 mm. Internal diameter: 800 mm. External upper edge diameter: 820 mm. Body height: 1000 mm. Total height with feet and cylinder: 1430 mm. Thickness: Walls: 1.2 mm. Bottom: 1.5mm.

Ideal accessory for the primary fermentation of food products that require oxygenation during this phase of production. Entirely made of Aisi 304 stainless steel (18/10 food grade), the tank is equipped with stainless steel legs and wheels to facilitate movement even when fully loaded during the production of wine, kombucha, cheese stretching, maceration and infusion of fruit and other foods. The tub is equipped with a total discharge valve, but upon request it is possible to customize it, adding other valves, themo-wells, doors and other accessories according to the customer's needs. Characteristics: Material: stainless steel 18/10 (AISI 304). Capacity: 400 L. 10° conical bottom. Total drain with 1'' stainless steel ball valve x ENO 30. Elbow with ENO plastic swivel 30 x Ø14. Stainless steel lid with knob. No. 3 wheels Ø 150 mm. Nr. 3 stainless steel box shaped legs  60x60 mm. Internal diameter: 720 mm. External upper edge diameter: 740 mm. Body height: 1000 mm. Total height with feet and cylinder: 1430 mm. Thickness: Walls: 1.2 mm. Bottom: 1.5mm.

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping. Thanks to the pressure seal, it is ideal for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer is caused by the carbon dioxide produced by the yeasts during a leavening process taking place in an airtight container without the addition of sugars. Provided with: upper manhole cover Ø 400, frame height 80 mm, hooks closure, side and flag opening. Complete with no. 2 stainless steel lifting and handling handles. AISI 304 stainless steel Din 50 vacuum breaker vent valve. Predisposition for safety valve with 1/2" female threaded connection in AISI 304 stainless steel. AISI 304 stainless steel 500 mm ladder support. Internal spray ball Ø 65 AISI 316 completely removable. Removable Din 32 AISI 304 washing hose. AISI 304 cross-shaped connection, 0-5 bar pressure gauge housing, CO2 inlet butterfly Din 32 valve male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female. Inwards going level indicator with stainless steel protection complete with upper and lower level holder Din 15 x tube Ø 12, connected to the washing tube for easy sanitization. AISI 304 stainless steel cylinder cooling jacket h 750 mm, in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar. Cooling jacket on the molded cone h 300 mm in AISI 304 stainless steel, in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar. Cylinder and bottom insulation with 60 mm of Armaflex-type adhesive insulation. Bimetallic thermometer in AISI 304 stainless steel, scale -10/+50°C, stem length 200 mm. Additional stainless steel probe holder. Probe holder in AISI 304 stainless steel, length 300 mm. Take Din 15 sample in AISI 304 stainless steel. Total discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Partial discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dry-hopping. Nr. 4 legs with adjustable M 20 feet in AISI 304 stainless steel. 3 bar safety valve with 1/2" threaded connection in AISI 304 stainless steel. Technical features: made of AISI 304 25/10 mm thick stainless steel. BA glossy internal finish with satin welds, flower-patterned external finishing with satin welds. Conical bottom 60° - 10° conical lid. Capacity: 650 L +/- 3%. Internal diameter: 800 mm. External diameter: 930 mm. Cylinder height: 1000 mm. Leg height: 1210 mm. Total height: 2570 mm.

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping. Thanks to the pressure seal, it is ideal for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer is caused by the carbon dioxide produced by the yeasts during the fermentation process in an airtight container without the addition of sugars. Provided with: upper manhole cover Ø 400, frame height 80 mm, hooks closure, side, and flag opening. Equipped with two stainless steel lifting and handling handles. AISI 304 stainless steel Din 50 vacuum breaker vent valve. Predisposition for a safety valve with 1/2" female threaded connection in AISI 304 stainless steel. AISI 304 stainless steel 500 mm ladder support. Removable internal spray ball Ø 65 AISI 316. Removable Din 32 AISI 304 washing hose. AISI 304 cross-shaped connection, 0–5 bar pressure gauge housing, CO2 inlet butterfly valve Din 32 male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female. Inwards level indicator with stainless steel protection, complete with upper and lower level holders Din 15 x tube Ø 12, connected to the washing tube for easy cleaning. AISI 304 stainless steel cylinder cooling jacket, height 750 mm, with in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar. Cooling jacket on the molded cone, height 300 mm, in AISI 304 stainless steel, with in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar. Cylinder and bottom insulation with 60 mm Armaflex-type adhesive insulation. Bimetallic thermometer in AISI 304 stainless steel, scale -10/+50°C, stem length 200 mm. Additional stainless steel probe holder, length 300 mm. Sample tap Din 15 in AISI 304 stainless steel. Total discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Partial discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dry-hopping. Four adjustable legs with M 20 feet in AISI 304 stainless steel. 3-bar safety valve with 1/2" threaded connection in AISI 304 stainless steel. Technical features: made of AISI 304 stainless steel, 25/10 mm thick. BA glossy internal finish with satin welds, flower-patterned external finish with satin welds. Conical bottom 60° and conical lid 10°. Capacity: 950 L +/- 3%. Internal diameter: 930 mm. External diameter: 1150 mm. Cylinder height: 1000 mm. Leg height: 1420 mm. Total height: 2850 mm.

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping. Thanks to the pressure seal, it is suitable for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer is caused by carbon dioxide produced by yeasts during fermentation in an airtight container without the addition of sugars. Provided with: upper manhole cover Ø 400, frame height 80 mm, hooks closure, side, and flag opening. Two stainless steel lifting and handling handles. AISI 304 stainless steel Din 50 vacuum breaker vent valve. Predisposition for safety valve with 1/2" female threaded connection in AISI 304 stainless steel. AISI 304 stainless steel 500 mm ladder support. Removable internal spray ball Ø 65 AISI 316. Removable Din 32 AISI 304 washing hose. AISI 304 cross-shaped connection, 0–5 bar pressure gauge housing, CO2 inlet butterfly valve Din 32 male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female. Inwards level indicator with stainless steel protection, complete with upper and lower level holders Din 15 x tube Ø 12, connected to the washing tube for easy cleaning. AISI 304 stainless steel cylinder cooling jacket, height 750 mm, with in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar. Cooling jacket on the molded cone, height 300 mm, in AISI 304 stainless steel, with in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar. Cylinder and bottom insulation with 60 mm Armaflex-type adhesive insulation. Bimetallic thermometer in AISI 304 stainless steel, scale -10/+50°C, stem length 200 mm. Additional stainless steel probe holder, length 300 mm. Sample tap Din 15 in AISI 304 stainless steel. Total discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Partial discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dry-hopping. Four adjustable legs with M 20 feet in AISI 304 stainless steel. 3-bar safety valve with 1/2" threaded connection in AISI 304 stainless steel. Technical features: made of AISI 304 stainless steel, 25/10 mm thick. BA glossy internal finish with satin welds, flower-patterned external finish with satin welds. Conical bottom 60° and conical lid 10°. Capacity: 1100 L +/- 3%. Internal diameter: 930 mm. External diameter: 1150 mm. Cylinder height: 1250 mm. Leg height: 1420 mm. Total height: 3100 mm.

Stainless tank size 300L with tap, closed top (opening in the middle of the top with a cap). Size: 300L Diameter: 636mm, height 1350mm. Bottom valve 1/2". Stainless steel Aisi 304.The size of the tank can vary up to max. +/-10%

Sealable container with a stainless 8-degree cone base. Size: 1100L; Diameter: 953mm; Height: 1970mm; Chromed valves 1" (bottom), sampling valve 1/2" ; Stainless steel Aisi 304 - 18/10; Stainless legs height 320mm Welded legs, 2 x cooling jacket connection ½”, bottom outlet - valve 1”, side flow valve 1”, bottom oval door, top door Ø385 mm, sampling valve DN15, analog thermometer and with probe, level sensor Ø16mm..The size of the tank can vary up to max. +/-10%

Stainless steel conical bottom sealed container. Size: 8000L; Diameter: 1595mm; Height: 4320mm. Standard equipment: welded legs, outlets - ball valves: bottom DN40 and side DN25, sampling valve DN15, oval cleaning door, top hatch Ø385 mm, analogue thermometer, level indicator Ø16 mm, 2 × inert gas fitting ½”, ladder support Extras: valves - DN, WG, gorolla, TC, Macon; lower valve DN50, cap / vent valve, lifting ears, inox nameplate, adjustable feet.The size of the tank can vary up to max. +/-10%

The 500-litre stainless steel tank is a professional-grade product designed for wine storage, made from AISI 304 stainless steel to ensure robustness and preserve the product's organoleptic properties. It features a 10° conical bottom with reinforcements for ideal decantation and a stainless steel wine taster for sampling small quantities to monitor maturation. The tank includes a partial drain with a stainless steel valve and 1" x ENO 30 plastic elbow, a full drain with a 1" x ENO 30 valve, and a 400 mm anti-retention top manhole cover. A 300 mm bottom door allows easy emptying of the marc. Ideal for small and medium-sized businesses, this tank meets all practical needs for wine storage. Characteristics: Material: AISI 304 stainless steel, Capacity: 500 L, Internal finish: mirror polished, External finish: flamed with satin welds, Conical bottom: 10° with reinforcements, Total discharge: 1" x ENO 30 valve (3), Partial discharge: stainless steel valve and 1" x ENO 30 plastic elbow (1), 300 mm round manhole, flush with the bottom for easy emptying, Upper 400 mm non-returnable manhole cover, 10° conical roof, 3 stainless steel feet, Double-acting plastic vent valve, Stainless steel wine taster (2), Conforms to CE safety standards, Dimensions: Diameter: 720 mm (D1), Roof height: 300 mm (H4), Virola height: 1250 mm (H3), Foot height: 400 mm (H2), Total height with feet, sash, and roof: 1950 mm (H1), Thickness: Walls: 1 mm, Bottom: 1.5 mm.

The 1000 L stainless steel palletised storage tank is a professional-grade product designed to assist companies with transportation and positioning. Its 1200 x 1200 x 150(h) mm stainless steel base and 10° conical bottom enable easy movement using a pallet truck and safe lifting with a forklift, preserving the tank's integrity during handling. Made of AISI 304 stainless steel, it ensures maximum durability while maintaining the organoleptic qualities of the contents. The 10° conical bottom with a full drain and 1’ x GA 40 valve, along with the 400 mm anti-retention top manhole, facilitates professional maintenance. Compliant with CE safety standards, the tank features a mirror-polished interior, satin-brushed welded exterior, and four stainless steel feet for optimal stability. This tank is a reliable investment for companies needing efficient storage and transport solutions. Characteristics: Material: AISI 304 stainless steel. Capacity: 1000 L. Internal finish: mirror polished. External finish: flamed with satin-welded seams. Conical bottom: 10°. Drain: stainless steel valve 1’ x GA 40. Top manhole: anti-retention Ø400 mm. Conical roof: 10°. Feet: 4 stainless steel. Vent valve: double-acting plastic. Compliance: CE safety regulations. Dimensions: Inner diameter: 1150 mm. Manhole diameter: 400 mm. Virola height: 1000 mm. Leg and foot height: 350 mm. Overall height: 1550 mm. Footboard dimensions: 1200 x 1200 x 150(h) mm. Thickness: wall: 1 mm, bottom: 1.5 mm.
