Pump PF 120 for liquids, 7200 L/h
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 20000000539542
Unit: pc
Stock qty: On special order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
228,13 €/Kg

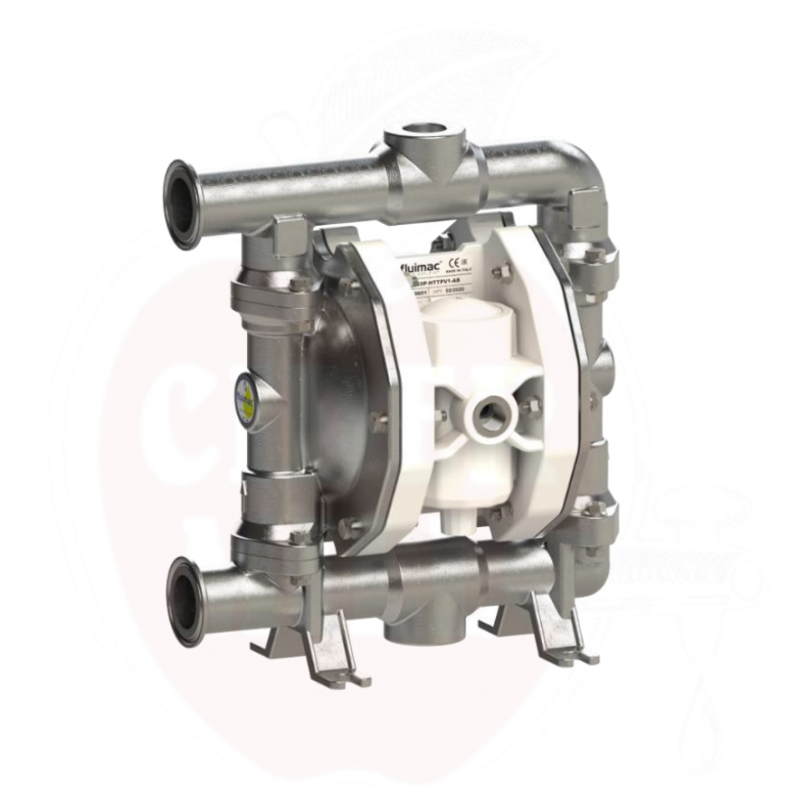

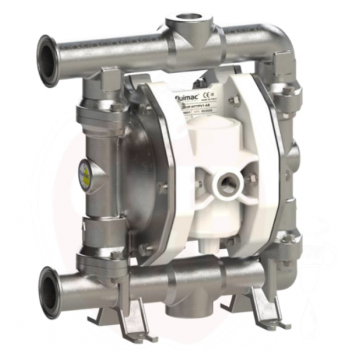

PF 120 Industrial Diaphragm Pump - FDA Certified Stainless Steel
PF 120 is an industrial diaphragm pump made of high-quality FDA-certified electropolished stainless steel (AISI 316). The pump is designed to ensure maximum reliability and safety in pumping industrial fluids.
Operating Principle
The pump uses a compressed air-operated double diaphragm system. The diaphragms move alternately under compressed air power, creating effective suction and pressure force. This technology ensures safe pumping of fluids and maintains product quality.

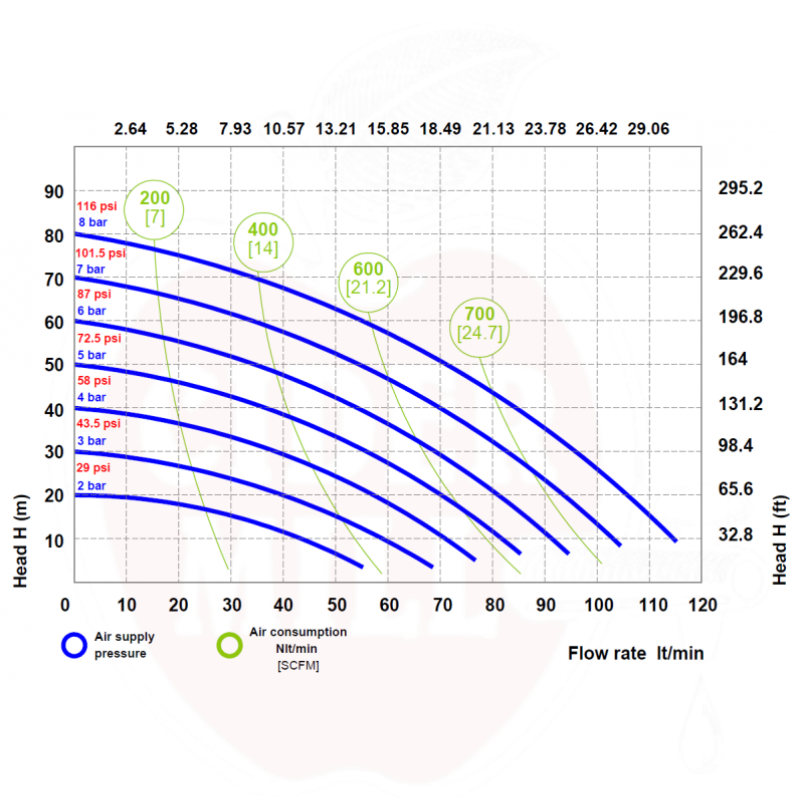

Technical Parameters
Flow rate: 120 l/min
Operating pressure: 8 bar
Discharge head: 80 m
Dry suction lift: 5 m
Wet suction lift: 9.8 m
Solid particle passage: 4 mm
Noise level: 72 dB
Viscosity: 25,000 cps
Displacement per stroke: 200 ml
Technical Specifications
Fluid connections: tri-clamp DN25 ISO 2852
Air connection: 3/8" BSP
Weight: 9.6 kg
Operating temperature: -20°C to +95°C
ATEX certificates: II 3/3 G Ex h IIC T4 Gb and II 3 D Ex H IIIB T135°C Db X
Materials and Construction
• Electropolished stainless steel (body)
• PTFE diaphragm and seals (industrial fluoropolymer)
Applications
• Food industry processing
• Pharmaceutical industry solutions
• Chemical industry applications
• High hygiene standard production
Keywords: diaphragm pump, industrial pump, stainless steel pump, FDA pump, food industry pump, ATEX pump, pneumatic pump, hygienic pump
| Weight (kg) | 9.600000 |
| High (m) | 0.3 |
| Width (m) | 0.21 |
| Length (m) | 0.31 |
