Fermentation Chamber 240V RAPT -2...50°C

SKU: 1483
EAN: 20000000540234
Brand: RAPT
Unit: pc
Stock qty: On special order

Price:
1120,00 €
Qty.: - +
   - or -

Fermentation Chamber 240V RAPT -2...50°C

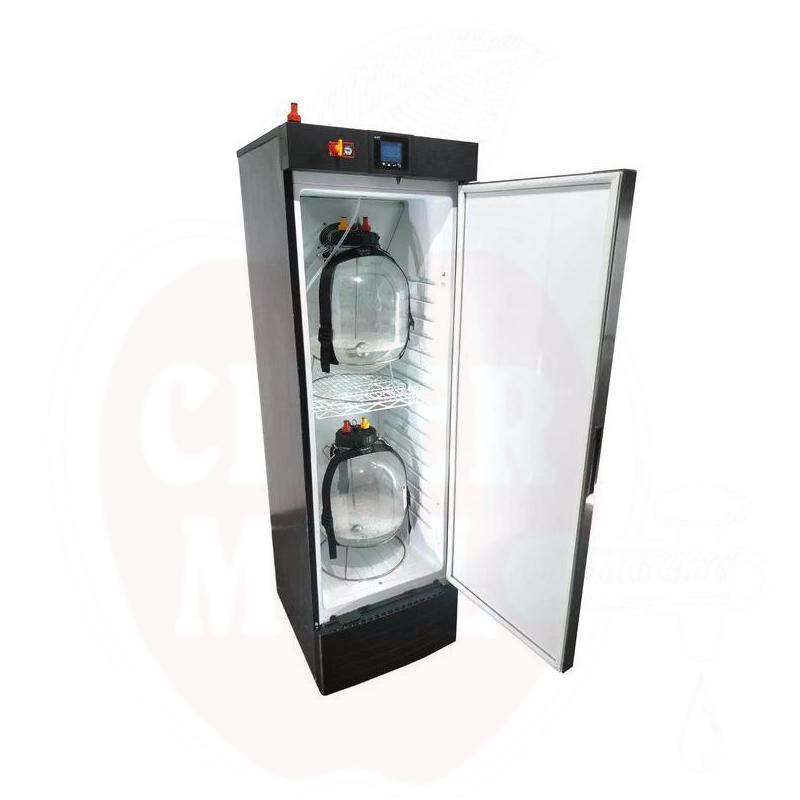

This fermentation chamber has been designed to heat and cool your entire fermenter. This is the ideal solution where the whole fermentation vessel is placed in a temperature-controlled environment, ensuring even temperature and the most precise control over the fermentation process. Temperature range from -2°C to 50°C, all at your fingertips!

NEW stainless steel fan shroud and kicker plate.

The package includes:

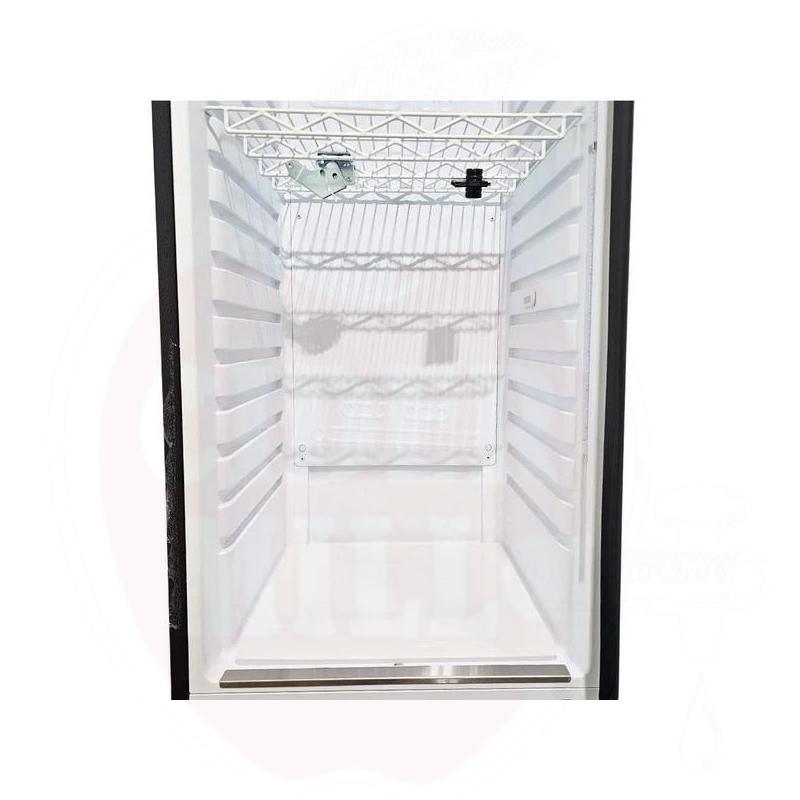

- 1 x heavy-duty shelf

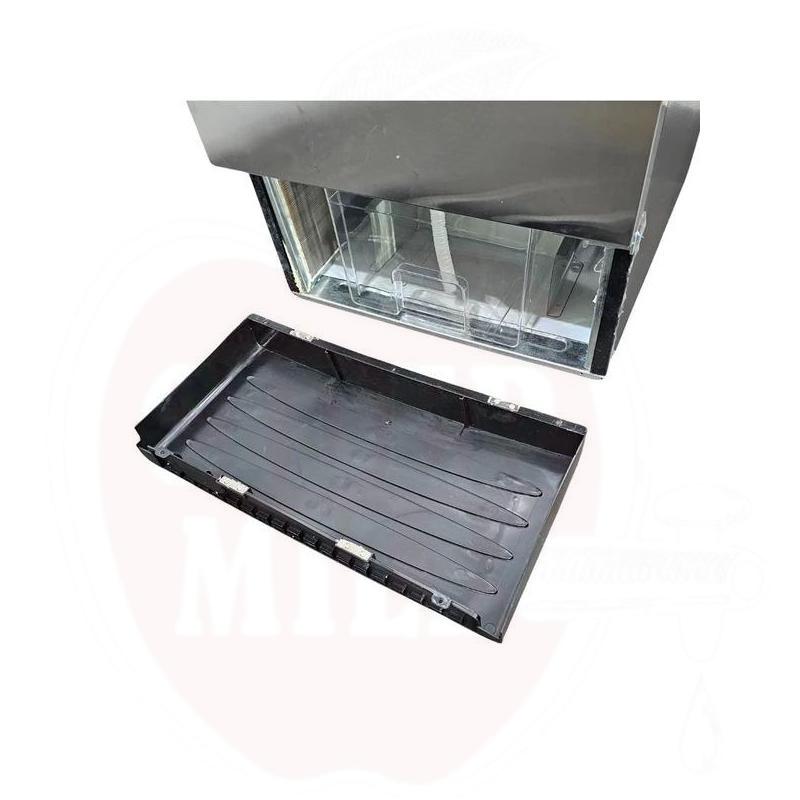

- 1 x spillage/water collection container
- 2 x RAPT - Fermentation Chamber - PCO1881 inserts
- 2 x integrated BlowTie compatible windows
- 4 x blank slide-in caps
- 1 x left hinge assembly (right is currently attached)

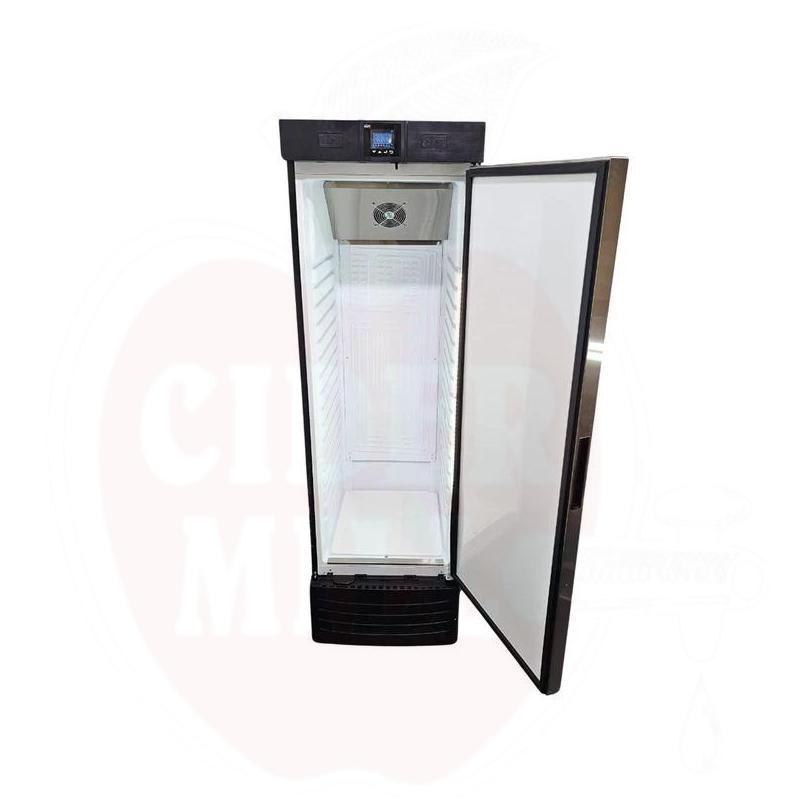

The control panel comes complete with an integrated color TFT screen, spunding valve, and CO2 gas integration. For example, you can combine an inline regulator with an integrated gauge on one side and a gauge-integrated BlowTie unit on the other side to regulate residual pressure in your fermenter.

The 4-button color display conveniently shows historical temperature graphs, allows you to start, set, and stop temperature profiles, and gives you access to other critical information for that particular fermentation.

For more accurate readings of the core temperature of your fermenter, we recommend using a thermowell, such as our 60 cm duotight thermowell with the 2 m probe extension for the RAPT Fermentation Chamber.

RAPT Fermentation Chambers are designed for tight Bluetooth integration with RAPT Pill hydrometers and thermometers.

What is RAPT?
RAPT is a dedicated Internet of Things (IoT) hub for fermentation logging and control. It's a free service where any RAPT-enabled product can log and store data to the hub, which you can conveniently access. The RAPT hub also allows you to control your devices remotely, giving you complete control of the device regardless of your location. The RAPT portal enables you to create complex temperature profiles involving different temperature settings over time, allowing you to start a temperature profile with a set-and-forget experience. The RAPT portal also controls the alert/notification process, so you can receive email notifications in case something doesn't go according to plan.

Specifications:
- Integrated heating: 50 watts heating power
- Cooling capacity: 300 watts cooling power
- Maximum power consumption: 225 watts
- Refrigerant: r600a
- Connectivity: WiFi (802.11) and Bluetooth
- Temperature accuracy: +/- 0.1°C
- Temperature resolution: 0.1°C
- Integrated screen: 2.8-inch (diagonal) 320 x 240 color LCD TFT active matrix

External dimensions:
- Width: 540 mm
- Depth: 610 mm
- Height: 1760 mm

Internal dimensions:
- Width: 440 mm
- Depth: 500 mm
- Height: 1300 mm

Usage principle:
The fermentation chamber is designed for precise control of the fermentation process. Place the entire fermentation vessel in the chamber, set the desired temperature or temperature profile from the control panel or RAPT application. The chamber maintains a consistent temperature throughout the fermentation vessel, ensuring optimal conditions for the fermentation process. Temperature can be monitored and controlled either on-site or remotely using RAPT connectivity.

Keywords: fermentation chamber, RAPT, temperature control, home brewing, wine fermentation, fermentation, cooling, heating, Bluetooth, WiFi, Internet of Things, remote control, temperature profile, fermentation vessel, precise temperature control, r600a refrigerant, thermowell, fermentation process control, beer production, wine making.

Weight (kg) 0.000000
High (m) 1.76
Width (m) 0.61
Length (m) 0.54
