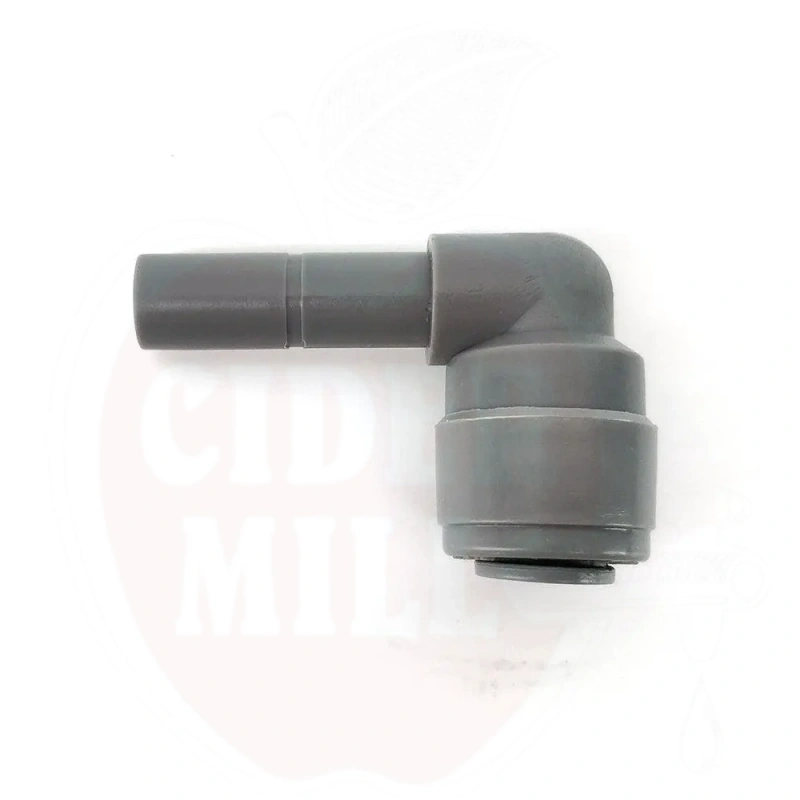

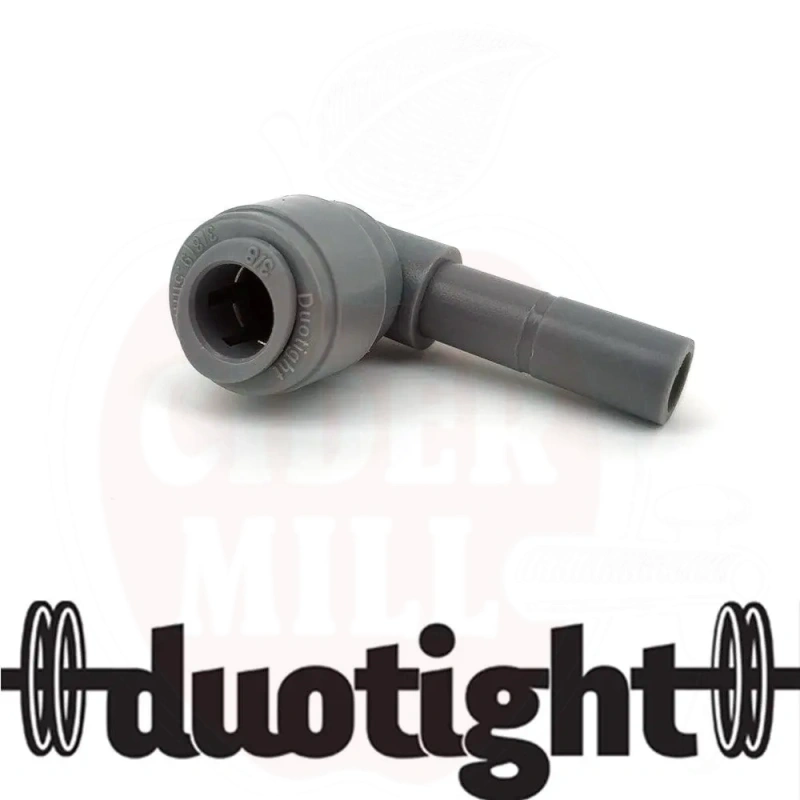

Elbow 9.5mm DuoTight female thread x male thread
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 2000005435546
Brand:
Unit: pc
Stock qty: 50
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
Files
Usage: Duotight push-in fittings are designed for professional beer and wine production systems requiring reliable, leak-free connections. Compatible with EVABarrier 6.35mm (1/4") ID x 9.5mm (3/8") OD line.
Features: Double EPDM o-ring sealing system provides superior sealing performance compared to single o-ring fittings. The dual o-ring design doubles the sealing surface area, significantly reducing leak risk and allowing tighter hose bend radius without compromising seal integrity. Tool-free installation - no clamps required. Simply push hose into fitting until secure; to disconnect, push collet and remove hose.
Technical data: Maximum operating pressure: 100 psi (6.9 bar). Configuration: 9.5mm (3/8") Female x 9.5mm (3/8") Male Elbow. Material: EPDM (Ethylene Propylene Rubber) o-rings with excellent chemical resistance to ozone, oils, alkaline and acid compounds, water, alcohol, ketones and beverages. EPDM offers superior gas transmission rates, wear resistance, and aging resistance compared to silicone and vinyl. BPA-free food grade material. Design revision 1.10.
Warnings: For optimal seal, cut hose straight (not at angle) before installation. Suitable for gas and liquid applications up to 100 psi maximum.
| Weight (kg) | 0.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
