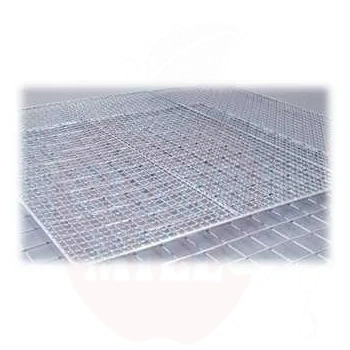

Drying grate 40x36cm clarstein for 1.44m2 dryer

Industrial Vacuum Drying System 45kW. Powerful industrial vacuum drying system with total power of 45kW/400V, equipped with fully automatic control system for storing up to 100 programs. Vacuum Chamber: Rectangular construction: 1300x1350x1600mm (HxWxD), Shelf capacity: 10m², Vacuum level: 0.05mbar, Operating temperature: -40°C to +80°C, Polished stainless steel 1.4301 (internal and external construction), Sliding rail door with viewing window and lock. Technical Components: Heat exchanger capacity: 15kW (heat pump + electric), Cooling capacity: 14kW (at -30°C), Vacuum pump: 10.5kW, 300m³/h @ 1000mbar, Circulation pump: 2.2kW, Cooling unit: 17kW/5.5m³/h. Accessories: 68 aluminum drying racks (2.0mm), Stainless steel wheeled cart for drying racks, Fully automatic control center. Note! Transport and installation are not included in the price. Cooler water input +20°C must be provided by the customer.

ProChef Professional Food Dehydrator - Double Stainless Steel Dehydrator Rediscover the ancient art of food preservation with the modern ProChef stainless steel dehydrator. This powerful device transforms fruits, vegetables, meat, mushrooms, and herbs into delicious, long-lasting snacks while preserving their natural nutrients. Precisely Adjustable and Powerful Temperature: 40-90°C Timer: up to 15 hours Drying area: 5.02m² Power: 3150W (2x1575W) Professional Design 32 stainless steel trays (2x16 levels) Durable glass door housing Separately adjustable drying modules Quiet operation mode (40-50dB) User-Friendly Solution Digital control panel allows precise temperature and time settings. Even air circulation ensures perfect drying results across the entire surface. Preserves food's natural taste and vitamins without preservatives. Easy Maintenance Dishwasher-safe trays and removable drip tray make cleaning quick. Stainless steel construction ensures long service life. Technical Specifications Dimensions: 59 x 42 x 146 cm Tray size: 39.6 x 39.6 cm Weight: 47.5 kg Power supply: 220-240V ~ 50/60Hz

Professional Food Dehydration Cabinet - Fully Automatic Solution Industrial-grade food dehydration cabinet ensures precise and uniform drying process. Durable galvanized steel construction with insulated double walls ensures maximum energy efficiency. Main features: Electrostatically painted cabinet (RAL 7035), Smart electronic control panel, Adjustable temperature up to 50°C, Drying time up to 24 hours, Built-in humidity indicator, Advanced ventilation system. Technical specifications: Dimensions: 1000 x 620 x 1825 mm, Heating power: 1.5 kW, Fan power: 55 W, Air flow: 270 m³/h, Chamber volume: 0.86 m³. Practical design: 15 removable trays (40 x 540 x 800 mm), Double door system, Adjustable feet for stable installation, 2.3-meter power cord, Secure patent lock. The unit is equipped with advanced safety systems, including overload protection and temperature control. Side air flow channel ensures uniform drying at all levels.

Harvest Right Laboratory Freeze Dryer - Professional Lyophilizer The advanced Harvest Right lyophilizer is designed for precise laboratory work, offering high-level control over freeze-drying processes. The unit can accommodate 13-24 liters of raw material on six trays. Smart Control Features: 4.3-inch full-color touchscreen, customizable recipes (10 thermal treatments, 12 drying stages), adjustable freezing rate and temperature, automatic sublimation rate control, real-time pressure and temperature monitoring. Technical Specifications: cooling temperature down to -43ºC, 13-liter ice condensation capacity, 7 CFM oil-free scroll vacuum pump, power supply: 220V, 10A, stainless steel construction. Dimensions and Construction: Dimensions: 82.55 x 64.8 x 57 cm (height x depth x width), body: stainless steel or powder-coated aluminum, six drying trays for professional use. Warranty and Support: The unit comes with a one-year manufacturer warranty (6 months for vacuum pump). Data exchange possible with computer via Ethernet connection.

Vacuum Pump Premier Harvest Right 220V 60Hz Industrial design, intended for use with small, medium, and large freeze dryers. Technical specifications: Oil: Only Robinair Premium high vacuum pump oil or JB Industries Black Gold vacuum pump oil Motor: Energy-efficient DC motor Voltage: Standard, 220V, 60Hz Dimensions: 41.4 cm x 15.2 cm x 30.7 cm Weight: 14.5 kg Noise level: 52 decibels Product overview: This pump is only compatible with small, medium, and large freeze dryers. It's a professional device designed for long-term use, providing efficient vacuum creation for freeze-drying processes. Comparison with standard oil pump: Oil change: With the new Premier pump, oil changes or filtering are rarely needed. The pump has a gas ballast function that prevents water from remaining in the oil. Therefore, the oil stays clean and clear even after 30 or more uses. Oil change is only necessary after 20 or more uses. In comparison, a standard vacuum pump requires oil changes and filtering every 4-5 uses (when using a new 3/8-inch vacuum hose). This pump should only use Robinair Premium high vacuum pump oil or JB Industries Black Gold vacuum pump oil. These can be purchased from Harvest Right, Amazon, and other sources. Do not use Dairyland vacuum pump oil in the Premier pump. Vacuum pressure: In both cold and hot conditions, the Premier pump can create a deeper vacuum than the standard pump. In cold conditions, the difference is 0.05 Pascal for the Premier pump and 0.08 Pascal for the standard pump. However, in warm conditions, the difference is much greater: 0.05 Pascal for the Premier pump and 2.05 Pascal for the standard pump. Thus, the Premier pump is barely affected by warm environmental conditions. When temperature rises, it creates vacuum much better than the standard pump. External heat barely affects the Premier pump. It creates the same deep vacuum even in warmer environments. Noise level: The Premier pump is significantly quieter than the standard pump, 52 decibels compared to 64 decibels. An industrial pump at 52 decibels is about as quiet as a refrigerator. Oil mist filter: Both pumps are equipped with oil mist filters. However, the Premier pump's oil mist filter prevents oil from spraying completely and lasts much longer. Energy consumption: The Premier pump uses less energy than the standard pump (187 watts compared to 218 watts). Current draw: In hot conditions at final vacuum pressure, the standard pump draws 2.1 amps, while the Premier pump uses only 1.7 amps. Thus, the Premier pump is more efficient. Weight: The Premier pump is easier to move as it weighs 5 pounds less than the standard pump (14.5 kg compared to 16.8 kg). Lifespan: The Premier pump is more durable and lasts longer than the standard pump. Operating principle: The vacuum pump is an essential part of the freeze-drying process, removing moisture from the drying object. The pump creates a deep vacuum that enables ice sublimation (direct transition from solid to gas) at a lower temperature. This preserves food nutrients, texture, and taste, ensuring the highest quality end result.
