Sanitary centrifugal pump KCL32, 10,000-30,000 L/h
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 20000000543075
Unit: pc
Stock qty: On special order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 22% VAT.

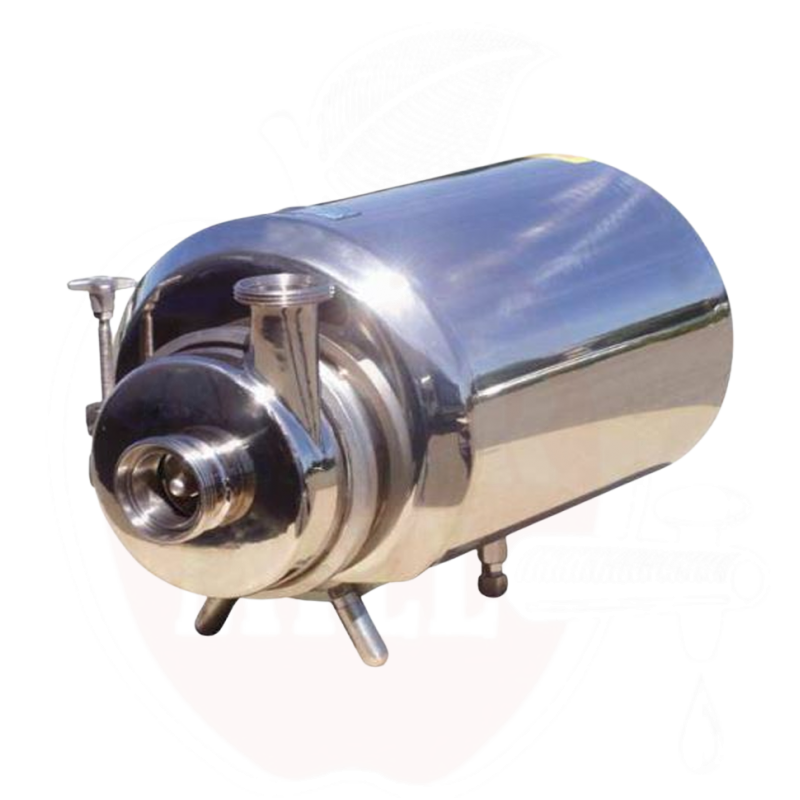

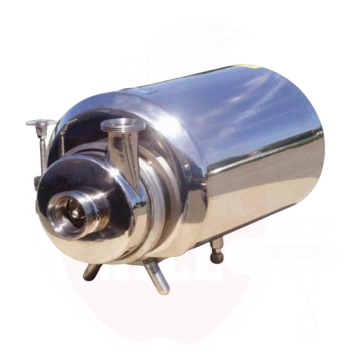

Centrifugal pump KCL32 sanitary, 10,000-30,000 L/h
KCL sanitary centrifugal pumps are single-stage centrifugal pumps in monoblock version. The cast/molded construction is entirely made of polished stainless steel AISI 316. A wide range of models with closed or open impellers, supported by 2- or 4-pole shaft seal, covers diverse applications.
The special assembly method with clamps and screw heads makes disassembly easy, allowing inspection and cleaning of all internal parts. All parts are electrochemically polished.
Flow rates from 10 to 30 m³/h, with maximum head height of 20 m.
Seal materials:
- EPDM
- Fluorinated
- Silicone
- P.T.F.E. (Fep)
Connection fittings:
- DIN
- SMS
- CLAMP
Applications:
Food, dairy, beverage industries and chemical, cosmetic, and pharmaceutical industries. Open impeller versions are suitable for transporting juices, creams, ice cream, cream, milk, wine, alcohol, and low-pressure serums. Closed impeller versions can be used for transporting clean liquids at medium to high head heights (max 40-50 m) and supplying pasteurizers, coolers, concentrate filters, and washing circuits.
The centrifugal pump operating principle involves rapid pumping of liquid through an impeller, which creates centrifugal force, directing fluid from inlet to outlet. This technology ensures uniform and efficient fluid movement while being low maintenance and particularly suitable for industrial sanitary applications.
Keywords: sanitary pump, centrifugal pump, food industry pump, stainless steel pump, AISI 316, monoblock pump, open impeller, closed impeller, liquid transport, sanitary industry, pharmaceutical pump, KCL32, centrifugal, hygienic pump, industrial pump, pump unit
| Weight (kg) | 0.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
The Liverani EP MAXI 80 industrial pump is a powerful device that ensures efficient liquid transport in large volumes. This three-phase 3.3 kW pump offers exceptional performance up to 36000 liters per hour and is equipped with a practical terminal block connection for quick installation.
Technical Specifications: Model: EP MAXI 80, Motor: 3.3 kW, three-phase, Power Supply: 3P/400V, Rotation Speed: 470 rpm, Flow Rate: 36000 L/h, Maximum Working Temperature: +95°C, Connection Fittings: Garolla 80, Impeller: EPDM material, Seal: SiC-SiC-NBR.
Pump Features and Usage: Reliable at high temperatures up to +95°C, EPDM impeller ensures durability with various liquids, NBR seal operates in temperature range -20°C to +120°C, Optimal pH range 5-9, Garolla 80 connection fittings ensure secure connection.
Industrial Applications: Food processing and transport, Beverage industry processes, Hot liquid handling, Industrial cleaning, Chemical liquid transport.
Maintenance Recommendations: Regular seal inspection every 500 operating hours, Careful monitoring during high-temperature operation, Ensuring pump cooling during long-term operation, Avoiding dry running.
The Liverani EP MAXI 80 pump is a reliable choice for industrial liquid transport, offering high performance and durability. Thanks to its EPDM impeller and SiC-SiC-NBR seal, the pump is suitable for handling various liquids in industrial environments.
